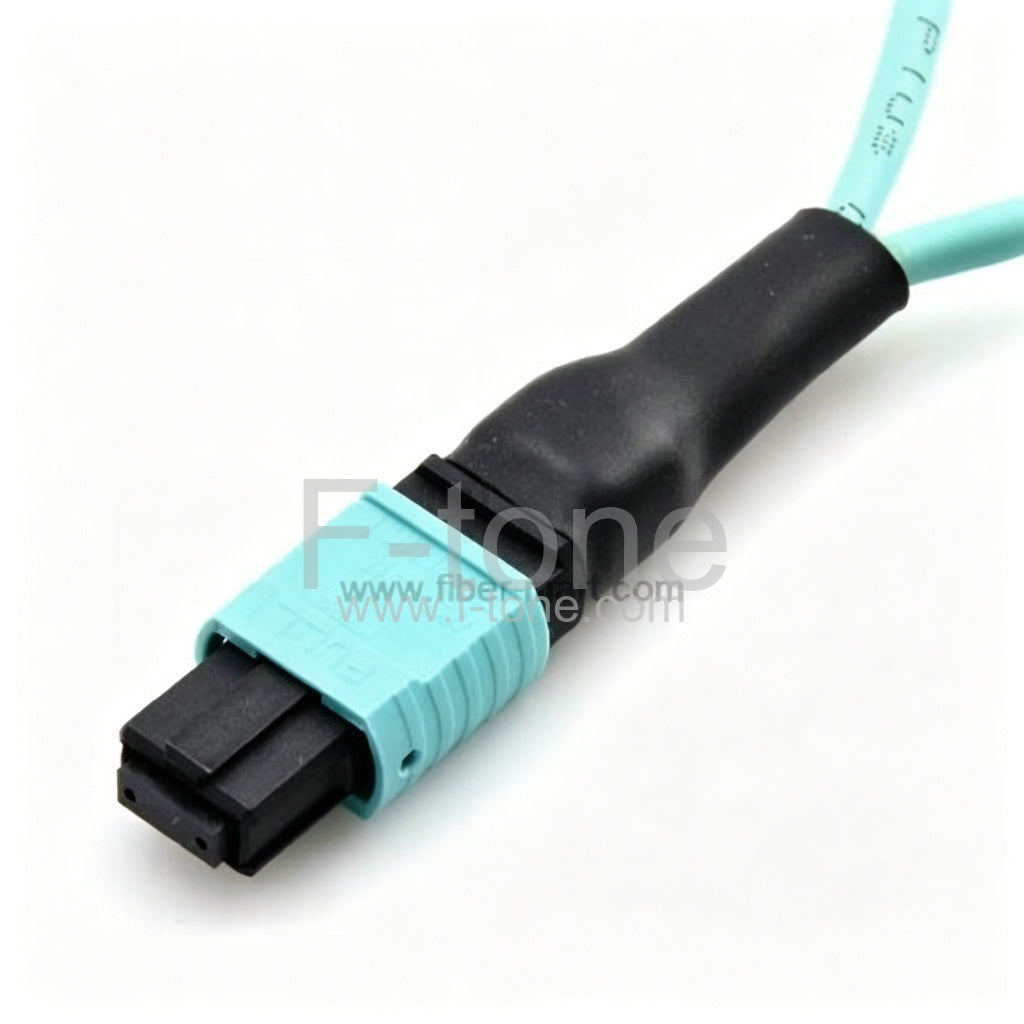

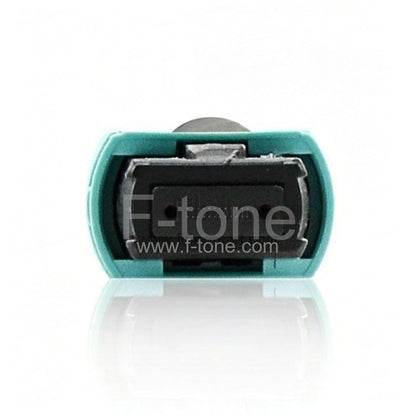

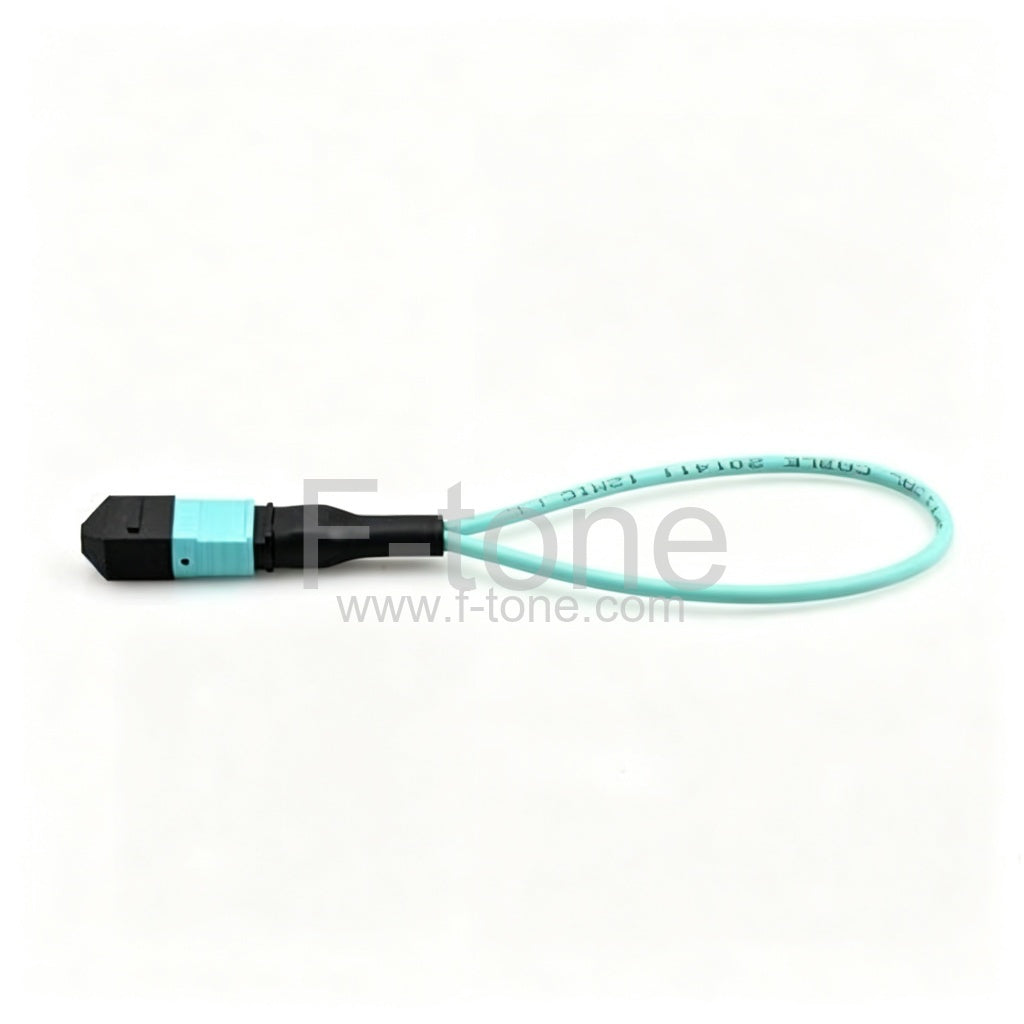

100GBASE SR-10 MTP 24 Fiber OM3 Female Loopback Cable

100GBASE SR-10 MTP 24 Fiber OM3 Female Loopback Cable

Просмотреть всю информацию

Part Number: 100GLP-MTP-24OM3-FM

100GBASE SR-10 MTP/MPO 24 Fiber OM3 Female Loopback Cable, fiber loopback plug

This 100GBASE SR-10 MTP/MPO 24 Fiber OM3 Female Loopback Cable with pull-type connectors are used for testing ports in MTP/MPO cassettes, 100GbE /InfiniBand HBAs and switches.The MTP/MPO loopback provides a cost effective method for port testing. It transmits data from the host electrically, to the receive data outputs and back to the host. This device was design to test 100GbE and Infiniband ports.


Our standard MTP/MPO Loopback Cables, fiber loopback plug have female MTP/MPO ELITE (Low Loss) Connectors and will connect to the male MTP/MPO connector within the equipment. This loopback cable is used primarily as a means to test optical links in 100GBASE-SR10 networks.

Specifications

  • Connector: 24 pin MTP/MPO Female
  • Fiber: OM3 50/125
  • MTP/MPO Connector: MTP/MPO ELITE (Low Loss) 24 Fibre Connector
  • US Connect MTP/MPO connectors with pull-release
  • Fully compliant to IEEE specifications
  • Supports 100GbE and InfiniBand applications
  • ROHS Compliant

Applications

  • Device burn-in
  • Network diagnosting and testing
  • Data center
  • Storage Area Network
  • Local Area Network

Structure Illustration

Customized Service

Custom manufactured and customer specified configurations for MTP/MPO Loopback cables are available. Call or e-mail us about custom MTP/MPO loopbacks cables- we can make any custom configuration for your custom MTP loopback cable needs.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
