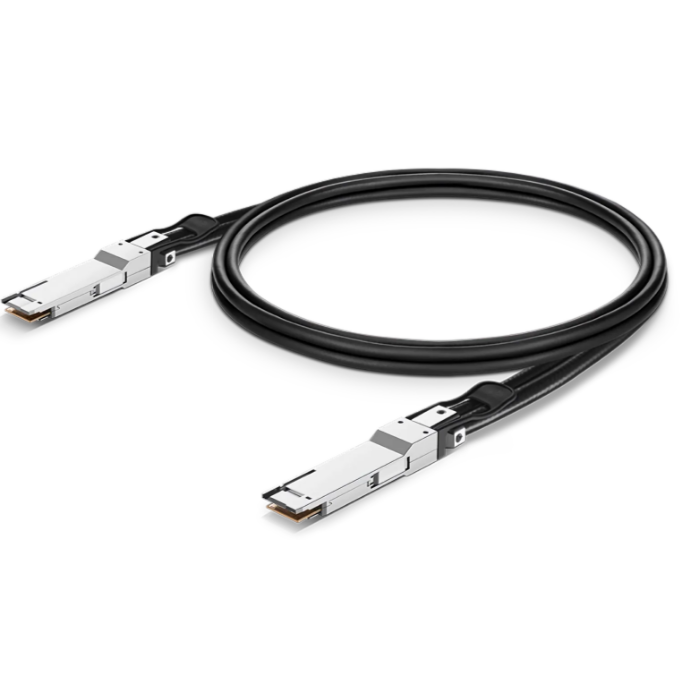

1m (3ft) Generic Compatible 800G QSFP-DD 8 x 100G PAM4 Passive Copper Twinax Cable

1m (3ft) Generic Compatible 800G QSFP-DD 8 x 100G PAM4 Passive Copper Twinax Cable

Просмотреть всю информацию

Generic Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable (1-meter, QSFP-DD to QSFP-DD, 28AWG)

The Generic compatible 800G QSFP-DD DAC is designed for use in 800G Ethernet applications. It contains 8 high-speed differential pairs (lanes), each operating at data rates of up to 100Gb/s. This cable is compliant with IEEE 802.3ck Ethernet standard and QSFP-DD MSA (Multi-Source Agreement).
With the advantages of low cost, low power consumption, interchangeability, etc, it is an ideal solution for short-distance interconnects and enable higher port bandwidth, density and configurability between data center racks. It also offers a more cost-effective solution than deploying discrete QSFP-DD modules with separate patch cords.

Specifications

Part Number QDD-800G-PC01 Vendor Name F-tone
Form Factor QSFP-DD to QSFP-DD Max. Data Rate 800Gbps
Media Copper Cable Type Passive DAC
Cable Length 1m (3ft) Jacket Material PVC (OFNR)
Minimum Bend Radius 81mm Wire AWG 28AWG
Max. Power Consumption 0.005W Per End Modulation Format 8×100G-PAM4
Commercial Temperature Range 0 to 70°C (32 to 158°F) Application 800G Ethernet
Protocols QSFP-DD MSA, CMIS Rev4.0, IEEE 802.3ck Warranty 5 Years









This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
