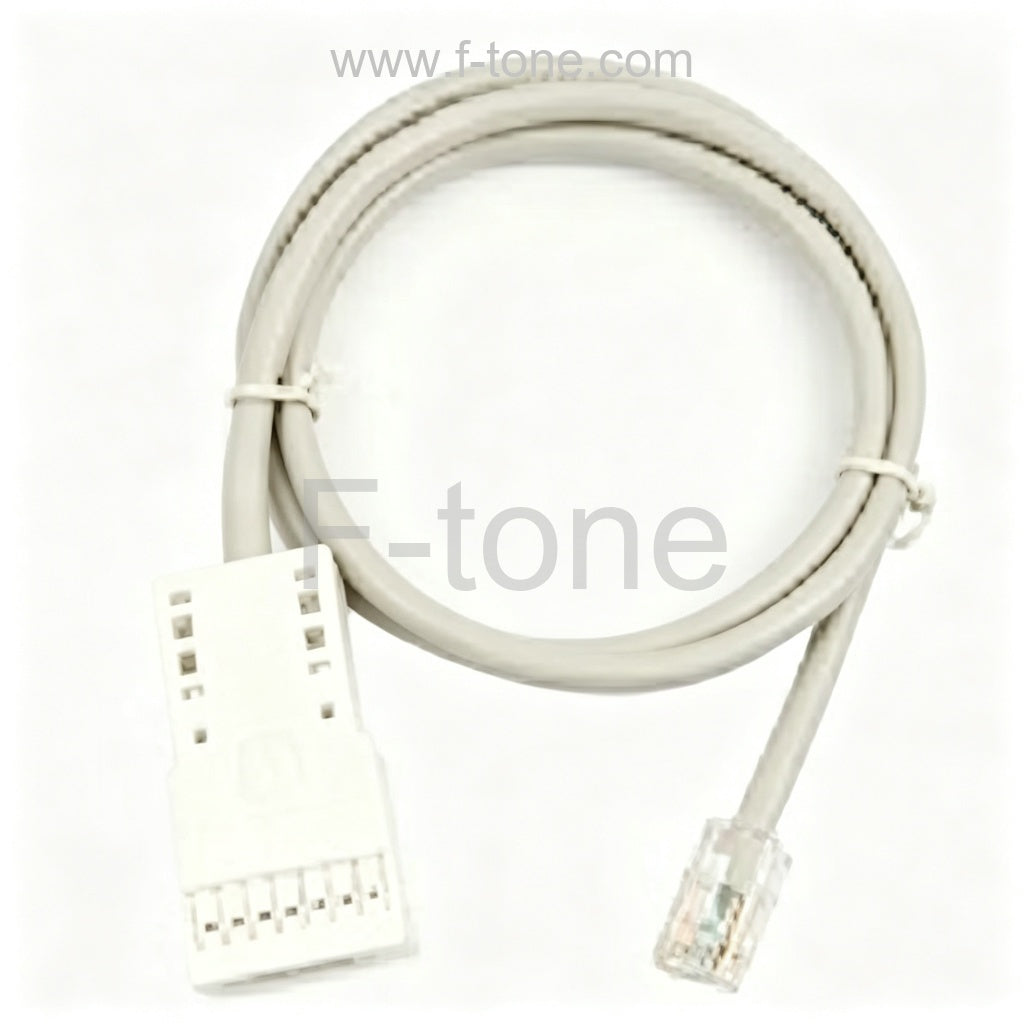

4m 1 Pair Cat 5e 110 to 110 Patch Cable

4m 1 Pair Cat 5e 110 to 110 Patch Cable

Просмотреть всю информацию

Part Number: 1PC5-4M-FM

4m 1 Pair Cat 5e 110 to 110 Patch Cable

Materials

Cable
Conductor: 7 copper wires Ø0.20 mm (0.008"), 24 AWG
Diameter of insulated conductor: 0.98 ± 0.05 mm (0.039" ± 0.002")
Number of pairs: 1
Color of twisted pairs: orange-white/orange
Jacket: PVC Ø2.6 ± 0.2 mm (0.1" ± 0.008")
Jacket color: light grey

Plugs

2 pieces, 1-pair 110 type, for stranded (patch) cable
Material: PC
PIN: Phosphor bronze with gold plating

APPLICATION

Cat 5e 110-style Patch Cords provide consistent
Category 5e performance to cross-connect 110 blocks with 1-, 2- and 4-pair plugs.
Available in both T568A and T568B wiring configurations

FEATURES

Available in 1,1.5,2,3,4,7.5m lengths (custom lengths available)
Grey strain relief boot on RJ45 cords
TIA/EIA channel performance limits the combined length of work
TIA/EIA-568-B
