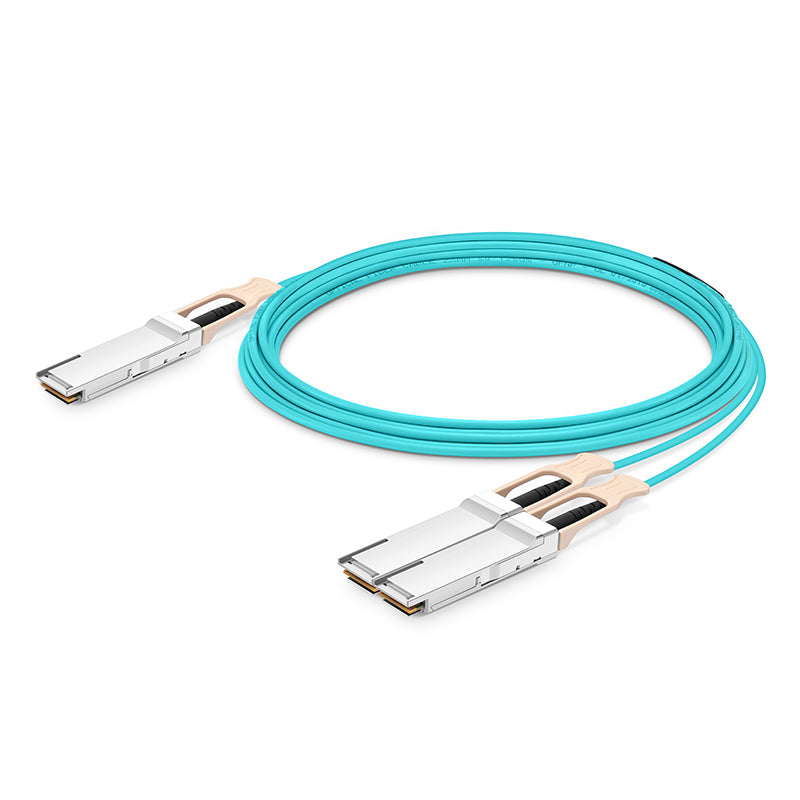

Mellanox MFS1S50-H003E Compatible 200G HDR QSFP56 to 2x100G QSFP56 PAM4 Breakout Active Optical Cable 3m (10ft)

Mellanox MFS1S50-H003E Compatible 200G HDR QSFP56 to 2x100G QSFP56 PAM4 Breakout Active Optical Cable 3m (10ft)

Просмотреть всю информацию

Part Number: 200G-HDR-QSFP56-2QSFP26-AOC3

Mellanox MFS1S50-H003E Compatible 200G HDR QSFP56 to 2x100G QSFP56 Breakout Active Optical Cable (QSFP56 to QSFP56 AOC Breakout Cable, Active 3m)

F-tone 200G QSFP56 to 2x 100G QSFP56 Breakout Active Optical Cable for 200G Ethernet links over OM3/OM4/OM5 multimode fiber via a 200G connector on one side and two separate 100GbE connectors on the other side Provides connectivity between system units. This cable connects data signals from 4 MMF (Multimode Fiber) pairs on a single QSFP56 end to dual pairs on each QSFP56 multiport end. This active optical splitter cable complies with QSFP-MSA and 200GBASE-SR4 specifications.

Product Details

Mellanox Compatible MFS1S50-H003E Vendor Name F-tone
Form Factor QSFP56 to 2x QSFP56 Max Data Rate 212.5Gb/s
Wavelength 850nm Cable Length 3m (9.8ft)
Modulation Format PAM4 Host Required FEC
Jacket Material LSZH Minimum Bend Radius 30mm
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
Operating Case Temperature 0 to 70～C (32 to 158～F) Voltage Supply 3.3V
Protocols QSFP56 MSA, CMIS
IEEE 802.3cd 200GBASE-SR4		 Maximum Power < 5w="" (200g="" qsfp56),="">
< 3w="" (100g="">
Connector Fiber Optic Cable Application 200GBASE-SR4 to 2x 100GBASE-SR2 Ethernet, 200G InfiniBand HDR


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
