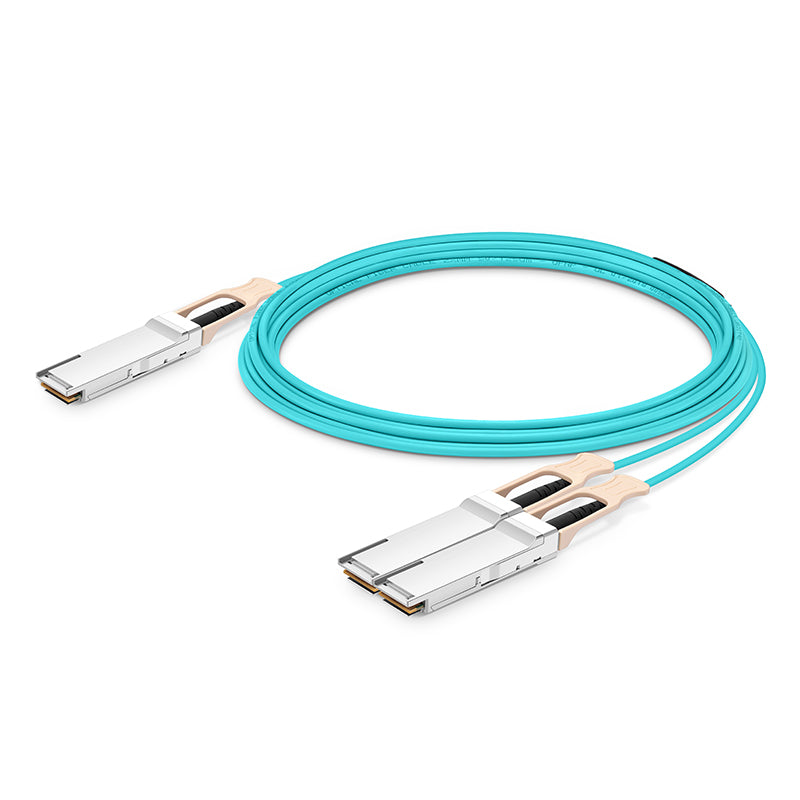

Mellanox MFS1S00-V003E Compatible 200G QSFP56 to QSFP56 Active Optical Cable 3m (10ft)

Mellanox MFS1S00-V003E Compatible 200G QSFP56 to QSFP56 Active Optical Cable 3m (10ft)

Просмотреть всю информацию

Part Number: 200G-QSFP56-DAC3M

Mellanox MFS1S00-V003E Compatible 200G QSFP56 AOC (QSFP56 to QSFP56 Active Optical Cable OM3 MMF 3-meter)

The 200G QSFP56 Active Optical Cable is designed for 200 Gb Ethernet links over OM3 multimode fiber and contains four multimode fiber (MMF) optical transceivers at each end, each capable of data rates up to 50Gb/s. It supports 100G/200G Ethernet for data centers and HPC (High-Performance Computing) links up to 70m (OM3) or 100m (OM4/OM5).

Product Details

Mellanox Compatible MFS1S00-V003E Vendor Name F-tone
Form Factor QSFP56 Max Data Rate 212.5Gb/s
Wavelength 850nm Cable Length 3m (9.8ft)
Modulation Format DSP/PAM4 Host Required FEC
Connector Fiber Optic Cable Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
Operating Case Temperature 0 to 70～C (32 to 158～F) Maximum Power <>
Protocols SFF-8636 and SFF-8679,
IEEE 802.3cd		 Application Ethernet for 200GBASE-SR4


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
