Part Number: 20XFMTPLCOM3

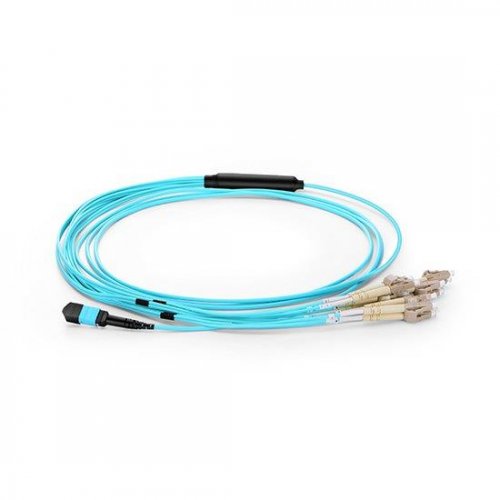

Low Loss MTP-10LC Duplex OM3 50/125 Multimode Fiber Optic Harness Fan-out/Breakout Cable
| Connector A | MTP | Connector B | LC UPC (10) |
|---|---|---|---|
| Fiber Category | 50μm MM (OM3) | Fiber Count | 24 |
| Fiber Type | Duplex | Wavelength | 850nm |
| Cable Jacket | 3.0mm LSZH-Aqua | Fan-Out Diameter | 2.0mm |
| Insertion loss, max. | ≤0.35dB | Return Loss,min. | MTP≥20dB, LC≥30dB |
| Breakout Length | 0.5m | Durability | ≥500 times |
| Min. Bend Radius Installation | 29 mm | Min. Bend Radius Operation | 15 mm |
| Tensile strength | 400 N | Crush resistance (Reversible) | 750 N/10 cm |
| Operating Temperature | -40° to +80°C | Fiber Grade | G.651 |
1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
| Designation | Fiber Dia.(μm) | Type | 10Gbps Ethernet 10GBASE SR/LR | 40Gbps Ethernet 40GBASE SR4/PLRL4 | 100Gbps Ethernet 100GBASE SR10/IR4X |
|---|---|---|---|---|---|
| OM1 | 62.5/125 | Multimode | 33 Meters (SR) | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 82 Meters (SR) | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 300 Meters (SR) | 100 Meters (SR4) | 100 Meters (SR10) |
| OM4(Laser Optimized) | 50/125 | Multimode | 400 Meters (SR) | 150 Meters (SR4) | 150 Meters (SR10) |
| Singlemode | 9/125 | Singlemode | 10KM at 1310nm (LR) | 1KM (PLRL4) | 2KM (IR4 PSM) |
b.3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
c.The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
