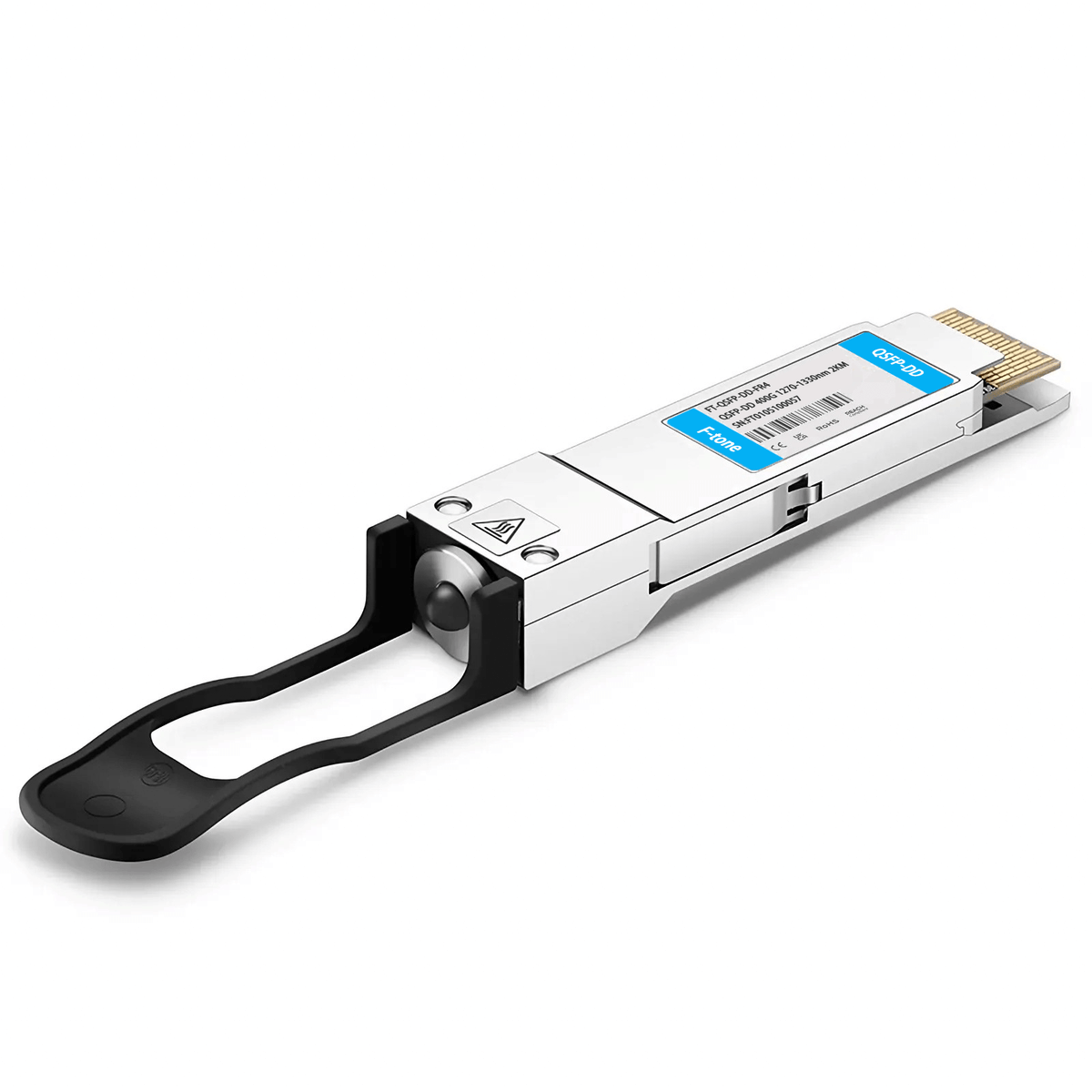

Mellanox MMS1V50-WM Compatible 400G QSFP-DD FR4 PAM4 CWDM4 2km LC SMF FEC Fiber Transceiver

Mellanox MMS1V50-WM Compatible 400G QSFP-DD FR4 PAM4 CWDM4 2km LC SMF FEC Fiber Transceiver

Просмотреть всю информацию

Part Number: 400G-QSFP-DD-FR4-MA

Mellanox MMS1V50-WM Compatible 400G QSFP-DD FR4 PAM4 CWDM4 lanes MUX/DEMUX design 2km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 2km with FEC DDM)

Mellanox MMS1V50-WM Compatible QSFP-DD FR4 Transceiver Module provides 400G connectivity up to 2km distance with FEC using LC connectors, which is hot swapping. The Transceiver complies with IEEE 802.3bs, the 400GBASE-FR4 specification of the 100G Lambda MSA group, and the 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over four CWDM mesh optical wavelengths. Multiplexing and demultiplexing of four wavelengths are managed within the device.

Product Details

Mellanox Compatible MMS1V50-WM Vendor Name F-tone
Form Factor QSFP-DD Max Data Rate 425Gbps
Wavelength 1271nm, 1291nm, 1311nm, 1331nm Max Distance 2km
Modulation Format PAM4 Host Required FEC
Connector Duplex LC Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type CWDM EML Receiver Type PIN
TX Power -3.3~+3.5dBm Receiver Sensitivity <>
Operation Temperature 0 to 70～C (32 to 158～F) Maximum Power <>
Protocols QSFP-DD MSA,
100G Lambda MSA 400G-FR4		 Application 400G Ethernet, Data Center Interconnect


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
