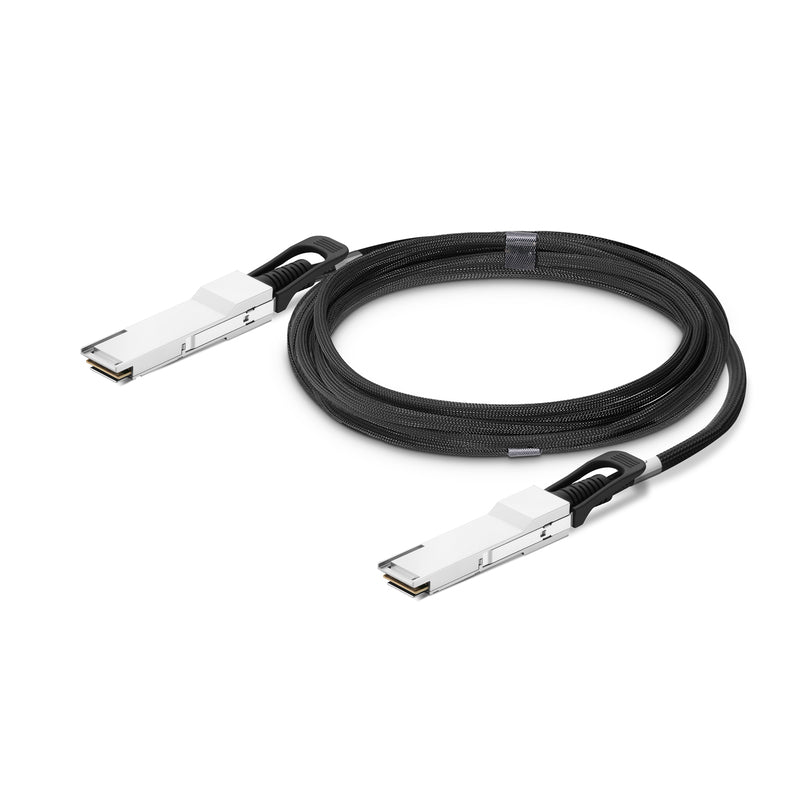

400G QSFP112 to QSFP112 Active Optical Cable 60m (197ft)

400G QSFP112 to QSFP112 Active Optical Cable 60m (197ft)

Просмотреть всю информацию

Part Number: 400G-QSFP112-Q112-AOC60

400G QSFP112 AOC (QSFP112 to QSFP112 Active Optical Cable OM3 MMF 60-meter)

F-tone QSFP112-400G-AOC-xxM is a QSFP112 to QSFP112 active optical cable for short-range data communication and interconnect applications. Each AOC has 4 duplex channels with 425Gbit/s aggregate bandwidth. Each channel operates with a PAM4 modulation scheme at 53.125G baud rate, and up to 60m using OM3 fiber or 100m using OM4 fiber.

Product Details

F-tone P/N QSFP-DD-400G-AOC-60M Vendor Name F-tone
Form Factor QSFP112 Max Data Rate 425Gb/s
Wavelength 850nm Cable Length 60m (197ft)
Modulation Format PAM4 Host Required FEC
Number of Lanes 8 TX and 8 RX (50G) Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
Operating Case Temperature 0 to 70～C (32 to 158～F) Maximum Power <8.0w each="">
Protocols QSFP112 MSA Rev2.1.1 and IEEE 802.3db,
IEEE 802.3ck		 Application 400G Ethernet and 200G Ethernet


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
