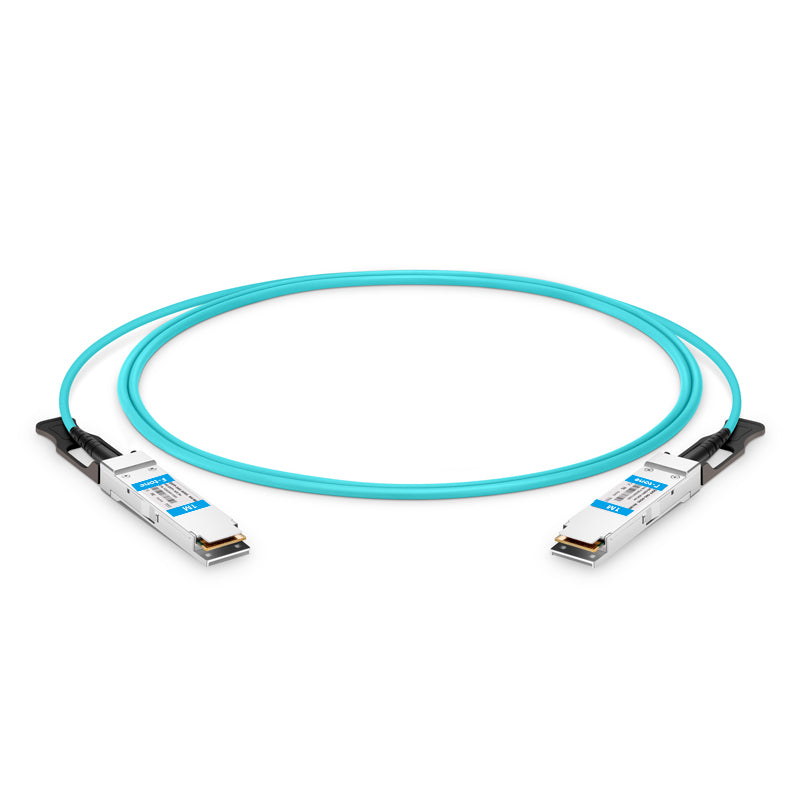

Mellanox MC220731V-001 Compatible 56G FDR QSFP+ to QSFP+ Active Optical Cable 1m (3ft)

Mellanox MC220731V-001 Compatible 56G FDR QSFP+ to QSFP+ Active Optical Cable 1m (3ft)

Просмотреть всю информацию

Part Number: 56G-FDR-QSFP-AOC1M

Mellanox MC220731V-001 Compatible 56G FDR QSFP+ Active Optical Cable (QSFP+ to QSFP+ AOC Cable, Active OM2 1m)

F-tone 56GBase-AOC QSFP+ to QSFP+ active optical cable operates over multimode fiber with a maximum transmission distance of 50 meters (164 feet). QSFP+ Active Optical Cables are direct-attach fiber optic assemblies with QSFP+ connectors that run over multimode fiber (MMF). This AOC complies with the SFF-8436 MSA standard. It over provides a cost-effective solution for 56Gbps connections within a rack and between adjacent racks compared to discrete optical transceivers and fiber patch cords.

Product Details

Mellanox Compatible MC220731V-001 Vendor Name F-tone
Connector QSFP+ to QSFP+ Max Data Rate 56Gbps
Cable Length 1m (3.3ft) Fiber Cable OM2 MMF
Jacket Material PVC(OFNR) Minimum Bend Radius 7.5mm
Operation Temperature 0~ 70 ～C (32 to 158～F) Protocols 56G InfiniBand / SFF- 8436


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
