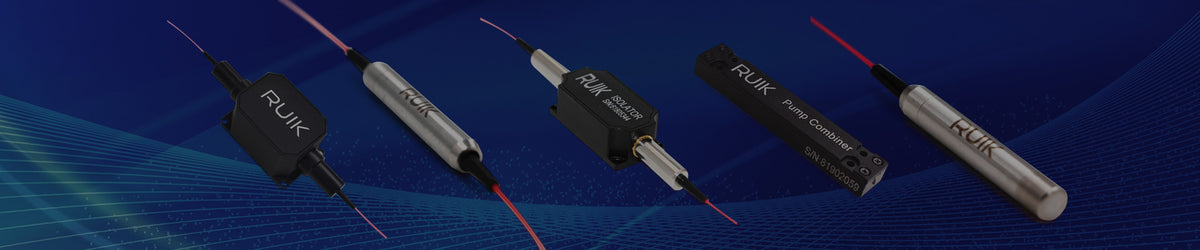

633nm In-line Polarizer

633nm In-line Polarizer

Просмотреть всю информацию

The In-line Polarizer is designed to pass the light with the specified polarization, blocking the others. The function is transform non-polarized light into linearly polarized light, for the high extinction ratio. It is also used to enhance the extinction ratio of the signals of precision measurement system, fiber sensor, high speed test instrumentation where the high extinction ratio prosper is required.

Features & Applications

Features Applications
Low Insertion Loss Test Instrument
High Return Loss Fiber Sensor
High Extinction Ratio Research
High Reliability & Stability

Specifications

Parameter Unit Value
Center Wavelength nm 633
Operating Wavelength Range nm ±10
Typ. Insertion Loss at 23℃ dB 1.3
Max. Insertion Loss at 23℃ dB 1.5
Min. Return Loss at 23℃ dB 50
Typ. Extinction Ratio at 23℃ dB 24
Min. Extinction Ratio at 23℃ dB 22
Fiber Type for Input & Output / SM→SM or SM→PM or PM→PM
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85

Ordering Information

ILP-①①①-②③-④④④-⑤⑤⑤-⑥⑦-⑧-⑨⑩
①①①
- Wavelength:
 633=633nm, SSS=Specified
②
- Fiber Type Option:
 1=SM→SM, 2=SM→PM, 3=PM→PM
③
- Working Axis:
 F=Fast axis blocked, N=Non-PM
④④④
- Fiber Type for Input:
 096=PM630-HP, 106=630-HP, SSS=Specified
⑤⑤⑤
- Fiber Type for Output:
 096=PM630-HP, 106=630-HP, SSS=Specified
⑥
-

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
