698nm PM Fused Coupler (1x2/2x2)

698nm PM Fused Coupler (1x2/2x2)

Просмотреть всю информацию

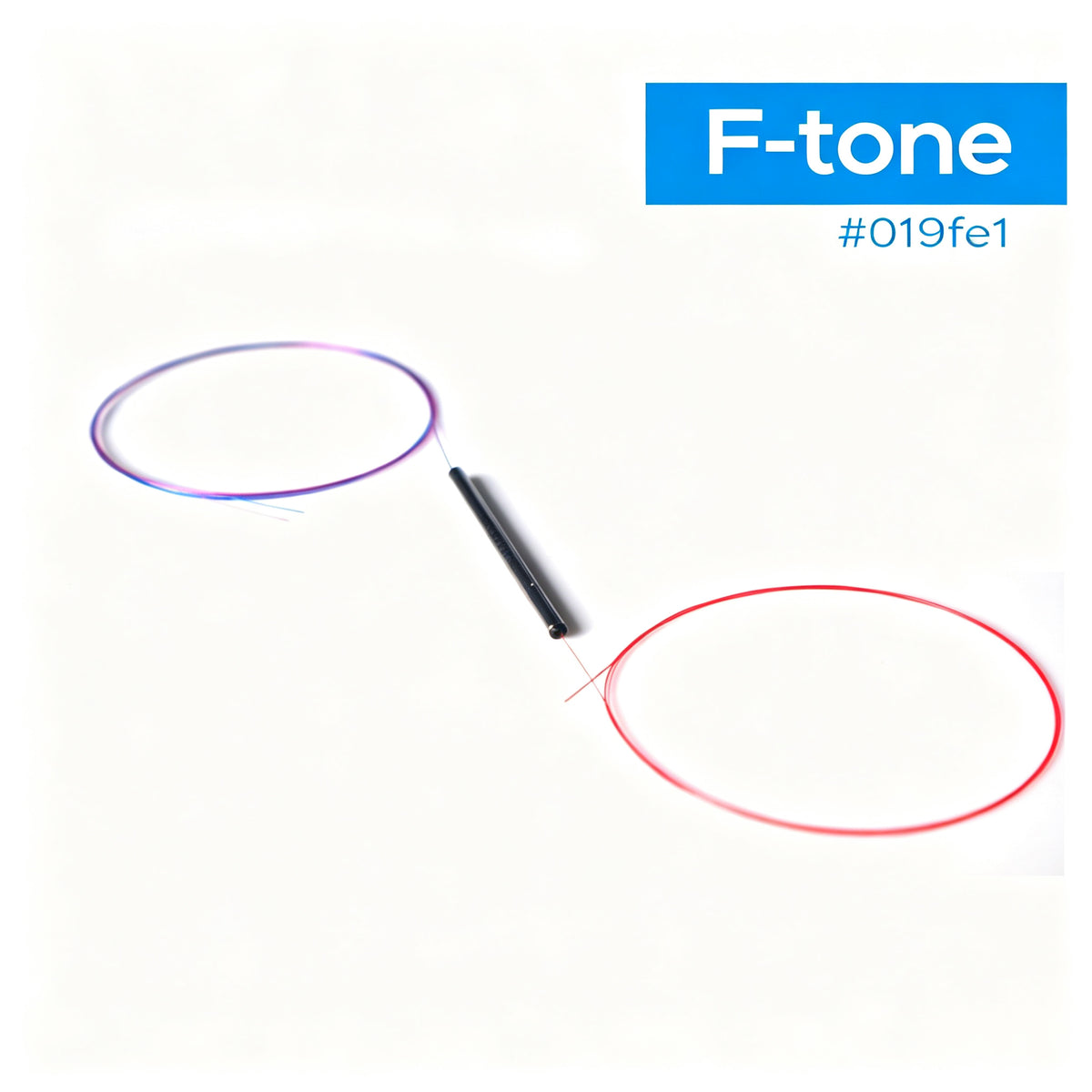

The Fused Type PM Fiber Coupler is characterized by low insertion loss, high power signal processing and stable & reliable environment. Suitable for Fiber Gyroscope, Power Monitor and Optical Sensor.

Features & Applications

Features Applications
Wavelength 532 - 2100nm available Coherent Communication
Low Insertion Loss Power Monitor
High Stability & Reliability Fiber Sensor

Specifications

Parameter Unit Value
Type - 1x2 & 2x2
Center Wavelength nm 698
Operating Bandwidth nm ±5
Max. Excess Loss dB 1.4
Min. Extinction Ratio dB 18
Min. Directivity dB 50
Max. Return Loss dB 50
Max. Optical Power (CW) mW 300
Fiber Type - PM630-HP
Package Dimensions mm φ3*54
Operating Temperature ℃ -5~+75
Storage Temperature ℃ -40~+85
Splitting Ratio 50 % / ±3.0
40 % ±2.5
30 % ±2.0
20 % ±1.5
10 % ±1.0
5 % ±0.7
1 % ±0.3

Ordering Information

  PMFUC-①-②③-④-⑤⑥-⑦-⑧ (1x2 Type)
  PMFUC-①-②③-④-⑤⑥-⑦-⑧ (2x2 Type)
①
- Wavelength:
 698=698nm, SSSS=Specified
②
- Port Type:
 3=1x2, 4=2x2
③③
- Tap Ratio：
 01=1/99, 05=5/95, ..., 50=50/50
④
- Fiber type:
 096=PM630-HP,  SSS=Specified
⑤
-

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
