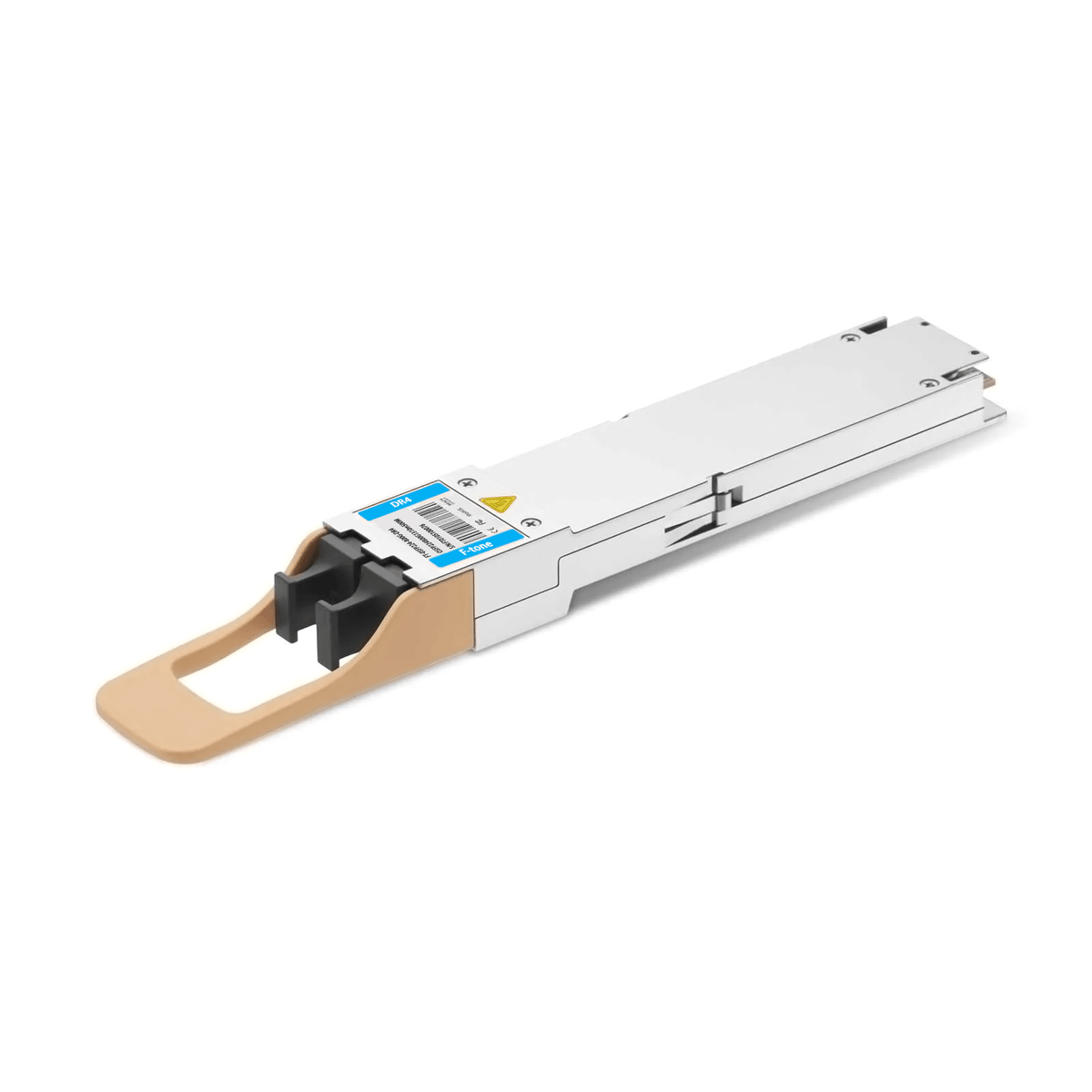

NVIDIA MMS4X00-NM Compatible 800Gb/s Twin-port OSFP 2x400G PAM4 1310nm 500m DOM Dual MTP/MPO-12 SMF Optical Transceiver

Part Number: 800G-OSFP-PAM4-TP

NVIDIA MMS4X00-NM Compatible 800Gb/s Twin-port OSFP 2x400G Optical Transceiver (SMF, 1310nm, 500m, Dual MTP/MPO-12, DOM)

F-tone NVIDIA MMS4X00-NM Compatible 800G-DR8 OSFP Transceiver Modules are designed for 800 Gigabit Ethernet links over 500m of single-mode fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. The transceiver consists of two transmitter/receiver units, each operating on a set of wavelengths on the 1310nm ITU G.694.2 CWDM grid. The module's transmitter path consists of a bidirectional PAM4 re-timer ASIC integrating a silicon photonic laser and two 4-channel modulator drivers. On the receiver path, 8 photodiodes and two 4-channel TIA arrays, and a PAM4 re-timer are used.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
