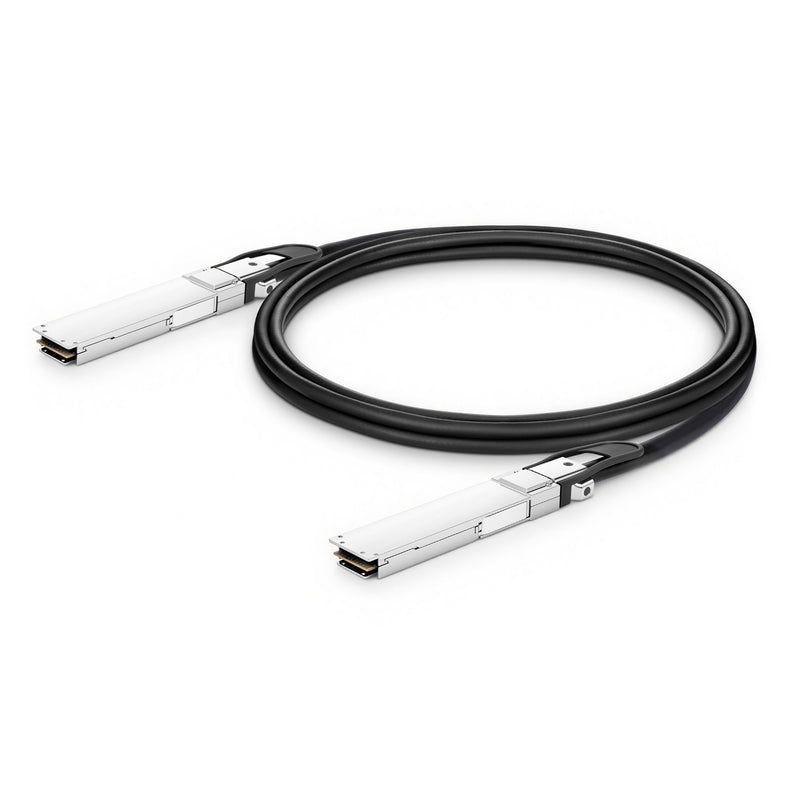

800Gb Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Direct Attach Copper Cable 1m (3ft)

800Gb Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Direct Attach Copper Cable 1m (3ft)

Просмотреть всю информацию

Part Number: 800Gb-OSFP-2OSFP-ACC1

800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout DAC (OSFP to OSFP Breakout Direct Attach Copper Cable 28AWG 1m)

Product Details

F-tone P/N OSFP8-2OSFP4-PC1M Vendor Name F-tone
Connector OSFP to OSFP Max Data Rate 800Gb/s
Wire Gages 28AWG Cable Length 1m (3ft)
Jacket Material Hair Tail Technology Net Minimum Bend Radius 72mm
Operation Temperature 0~ 70 ～C (32 to 158～F) Modulation Format PAM4
Protocols OSFP MSA, CMIS, ETC 800GBASE-CR8 Application 800G InfiniBand NDR and Ethernet


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
