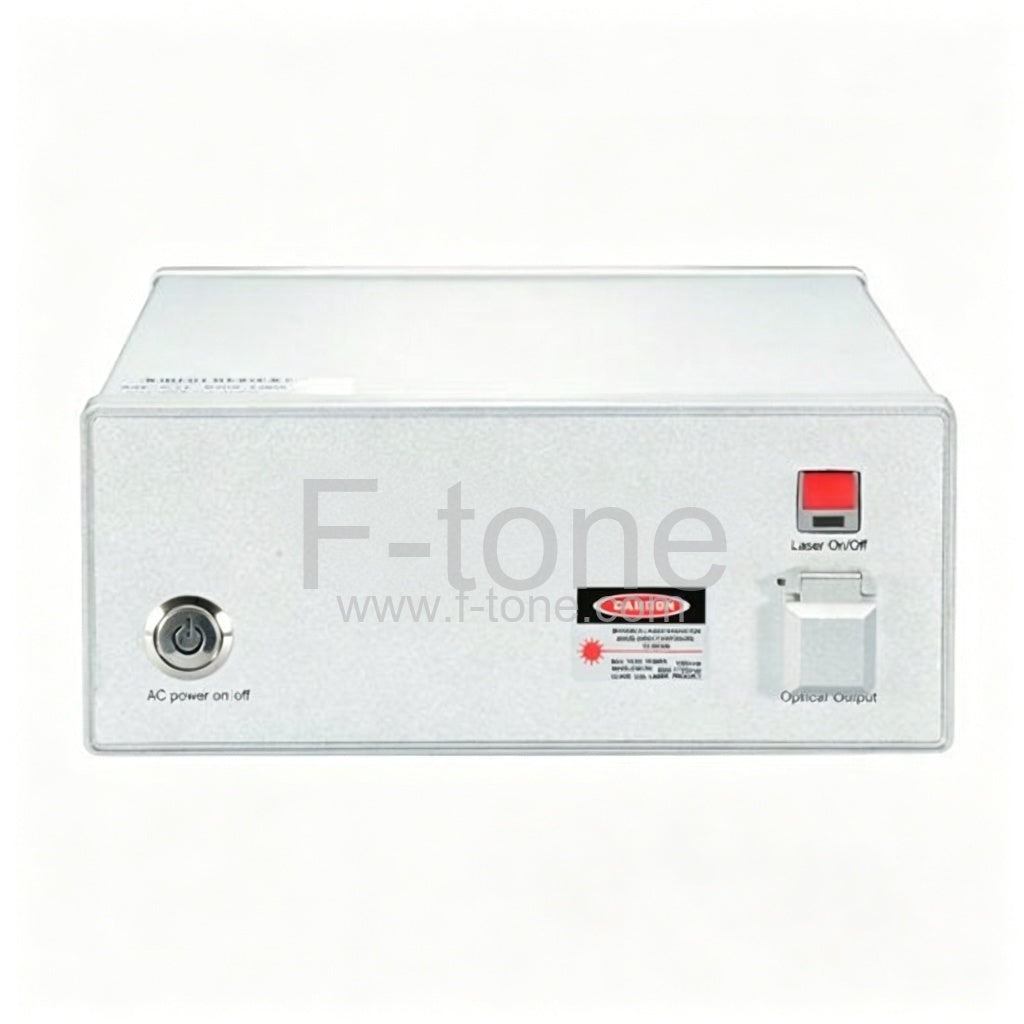

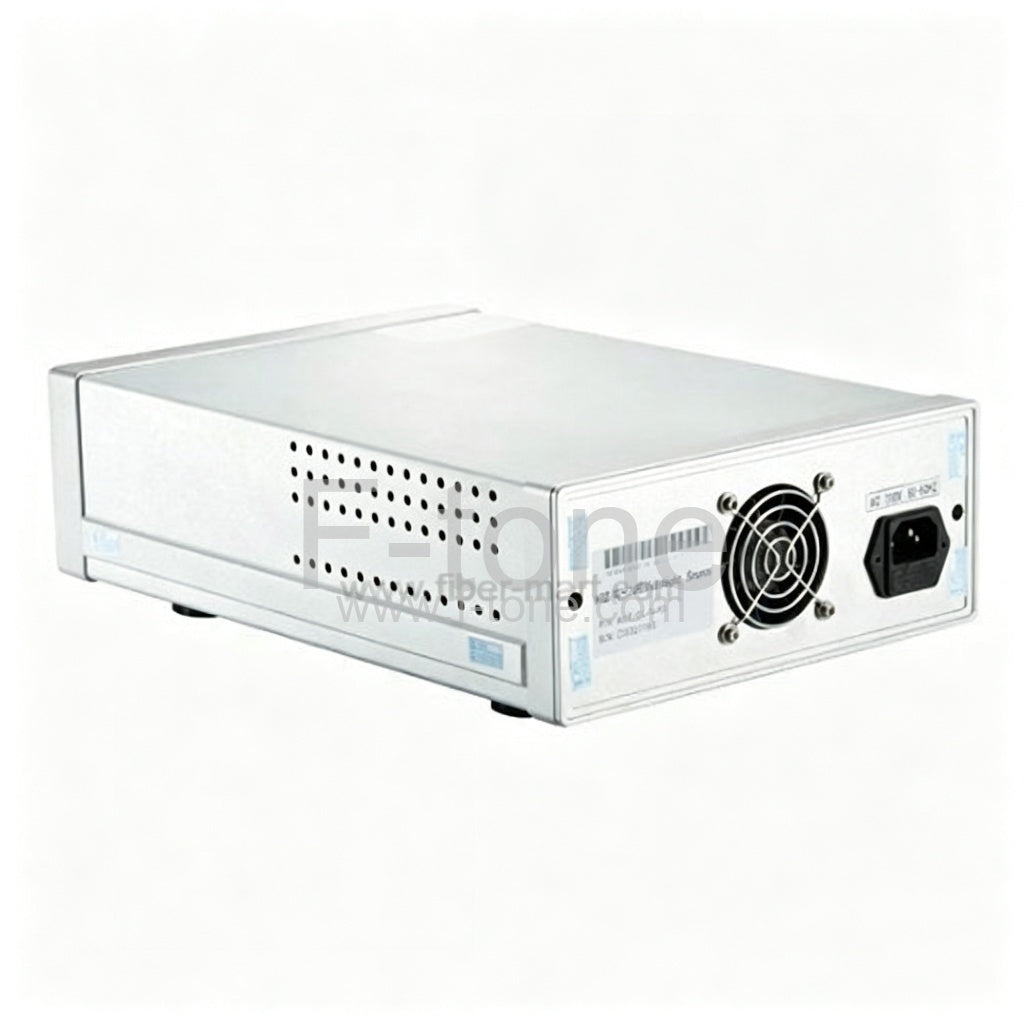

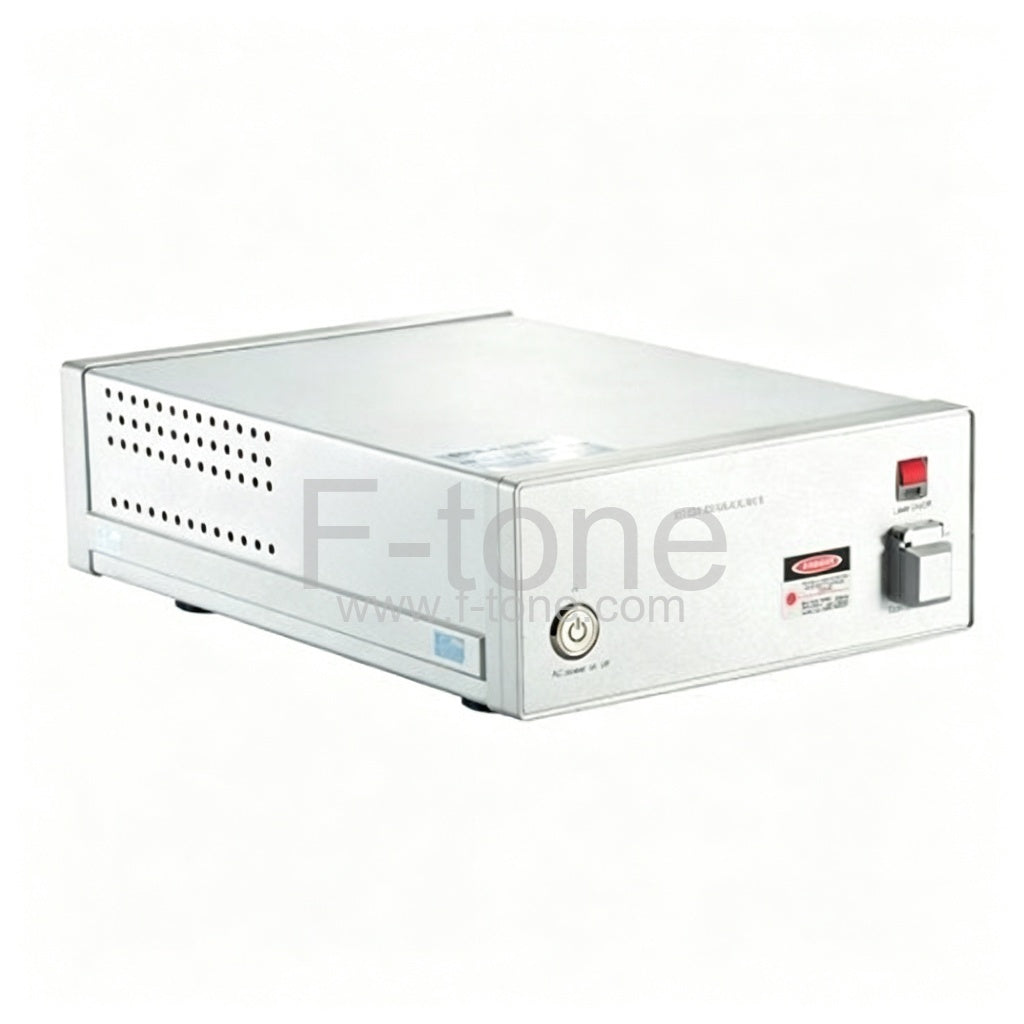

C Band ASE Broadband Light Source Wavalength 1526～1565nm With GFF Bechtop

C Band ASE Broadband Light Source Wavalength 1526～1565nm With GFF Bechtop

Просмотреть всю информацию

Part Number: ASE-C-G-FM

C Band ASE Broadband Light Source Wavalength 1526～1565nm With GFF Bechtop

ASE light source is a hig stable, hig outpt power broadband light source. The new generation of ASE sources have no high frequency ripples, which makes them very useful for sensor interrogation applications. These broadband light sources have desktop or min size module package. F-tone provides C-band 、C+L band and broadband ASE. These are available with either a flattened spectral output for demanding applications, or a non-flattened response for less demanding or cost-sensitive applications. A range of output powers are available.

Application

  • FBG Optical Sensor System
  • Optical Communication
  • Optical Passive device testing
  • Spectrum analyses

Features

  • High Precision ATC and APC Control Circuit
  • High stability and reliability
  • Low Flatness
  • High output power
  • Fiber communication equipment test

Typical Spectrum


15dBm output spectrum without GFF


13dBm output spectrum with GFF <=1.5dB

Order Information

ASE-C Type GFF Standard Fiber Type Output Power Connector
M=Module
D=Desk-top		 G=GFF
N=Without
GFF		 Without Display
Power：Without
Adjust		 S=SM Fiber
P=PM Fiber		 10=10mw
20=20mw
etc		 FC/UPC
FC/APC
etc


Parameters ASE-C
GFF // GFF
Operating wavelength (nm) 1525～1565 1526～1565
Output power (dBm) 10.0 ～23 7.0~17.0
Spectral density (dBm/nm) -20 ～ -2
Spectral stability (dBm/nm) ≤±0.05(5 min)
Output power short-term stability (dB) ≤±0.01 (5 min)
Output power long-term stability (dB) ≤±0.03 (8 hour)
Polarization ≤5%
Pigtail fiber SMF-28 or PM Fiber
Connector type FC/PC, FC/UPC or FC/APC
Operating temperature (℃) 0 ～+65 (-20 ～ +65 available)
Storage temperature (℃) -20 ～+70
Relative humidity (%) 20～80
Power Supply 110/220V AC,+5V or +3.3V DC;>500mA; △V＜1%
Maximal Power Consumption 10W
Dimensions (L×W×H mm) 90×70×16, 100x80x20 ,322×220×88


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
