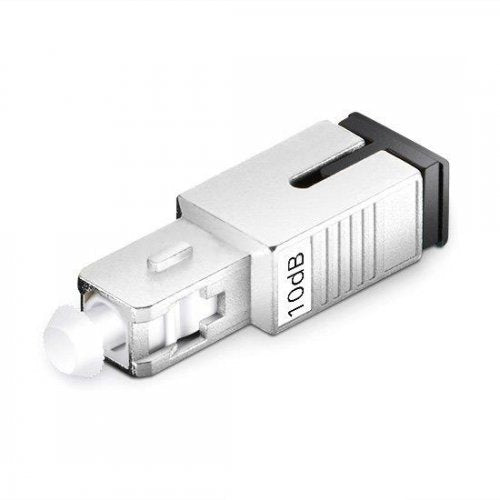

Fixed Male-Female-SC/UPC SM/MM Fiber Optic Attenuator 1~30dB optional

Fixed Male-Female-SC/UPC SM/MM Fiber Optic Attenuator 1~30dB optional

Просмотреть всю информацию

Part Number: AT-M-SCU

Fiber Optic Attenuator Fixed Male-Female-SC/UPC SM/MM 1~30dB optional

Fixed Attenuators are used in applications where a pre-determined amount of light loss is specified.
We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level, from 1dB to 30dB.

Key Features

  • Bellcore Compliant
  • Wavelength Independent
  • Durability & Simple and Reliable Structure

Specifications

  • Operating Wavelength: SM: 1310nm, 1550nm
  • MM: 850nm, 1300nm
  • Return loss: More than 55dB (UPC)
  • Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30)
  • Polarization Dependent Loss: Less than 0.2dB
  • Max. Optical Input Power: 200mW
  • Operating Temp Range: -40~80°C


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
