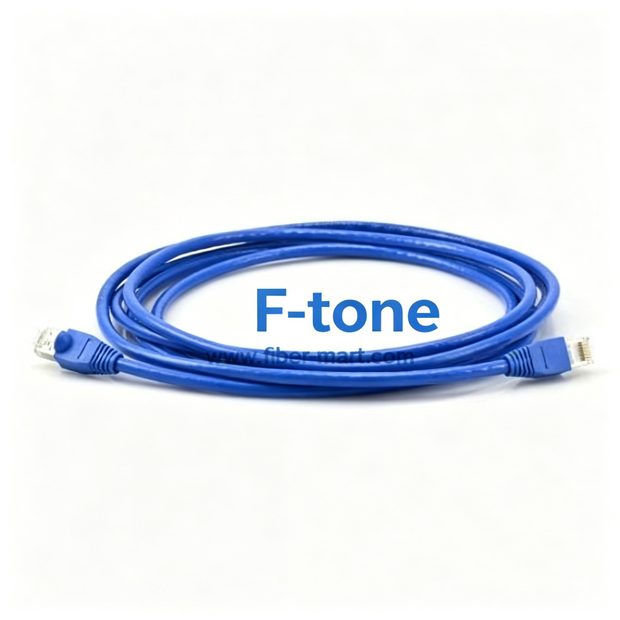

7m Cat6 Shielded Twisted Pair Molded Plenum Patch Cable

7m Cat6 Shielded Twisted Pair Molded Plenum Patch Cable

Просмотреть всю информацию

Part Number: CAT6-TPM-7M-FM

7m Cat6 Shielded Twisted Pair Molded Plenum Patch Cable (MOQ: 15km)

This is an Ultra-High Quality Category 6 Shielded Twisted Pair(STP)Molded Plenum Patch Cable. Unlike UTP(Unshielded Twisted Pair), STP cable is wrapped in metal foil or braid. Both have the same Ethernet communication performance, but STP has better protection against Electro-Magnetics noise from outside. UTP is accepted for residential and general commercial installation. In F-tone, you can get true Cat 6E performance with component certified Cat6E Patch Cables, Our patch cables are made of 100% pure copper wire and 50 micron gold plated RJ45 plugs.We do not use CCA (aluminum wire). You can also enjoy the custom service.Color - white, yellow, black, blue, gray, green, orange, purple, red are all available.

Key Features

  • The Cat6 shield twisted pair molded plenum patch cable
  • STP cables provide better protection against Electro-Magnetics noise
  • Meets Cat6 TIA 568-C.2 standards
  • OFRN Plenum CM type PVC Jacket
  • With molded boot

Specifications

  • 24AWG 4 pair stranded pure copper wire
  • 50 micron gold plated short body RJ45 plug
  • Certification: TIA/EIA
  • T-568B standard wiring
  • RoHS compliant
  • Color: Black

Applications

  • Designed for Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other Computer Networking applications
  • Voice/data/video distribution
  • Handle bandwidth-intensive applications



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
