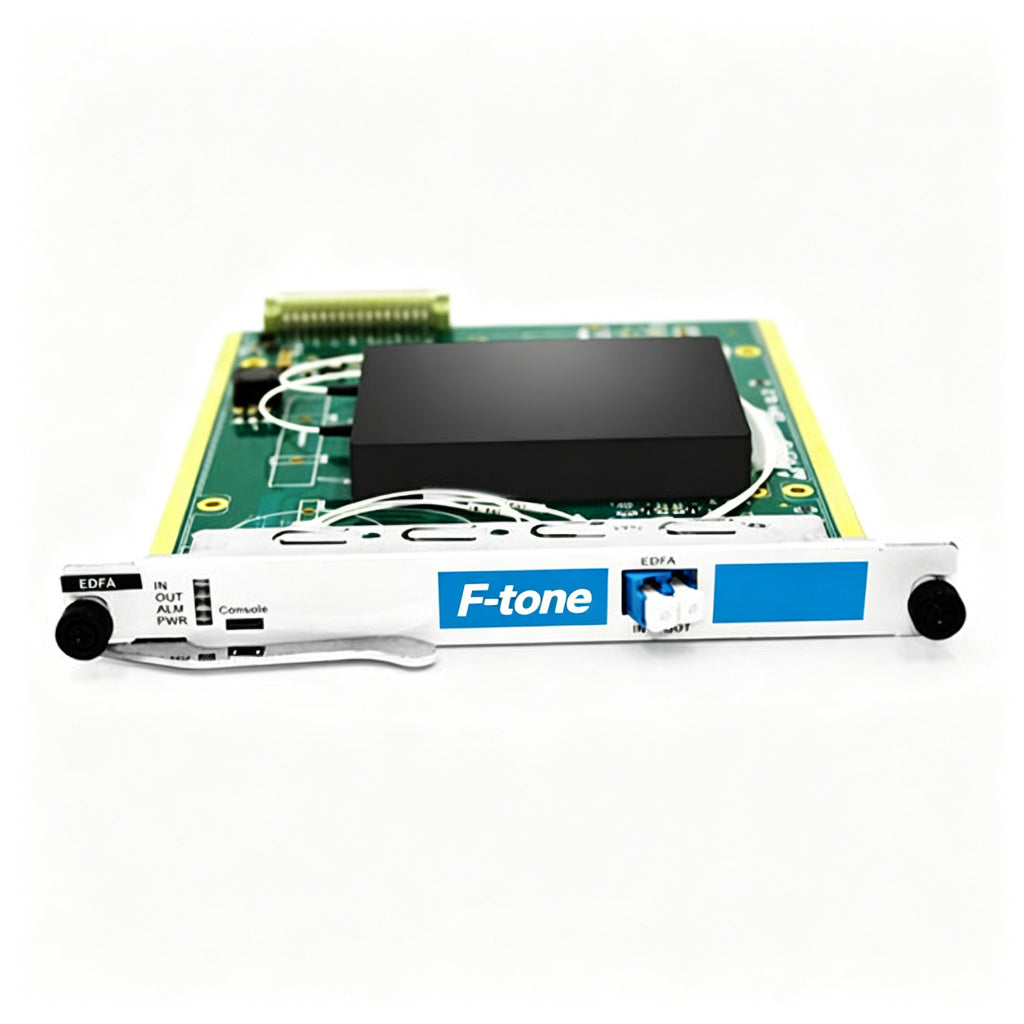

15dBm Output 1550nm Booster EDFA Optical Amplifier for CATV Applications

15dBm Output 1550nm Booster EDFA Optical Amplifier for CATV Applications

Просмотреть всю информацию

Part Number: CATV-EDFA-BA-15

EDFA Optical Amplifier 15dBm Output 1550nm Booster for CATV Applications

F-tone 1550nm booster Erbium Doped Fiber Amplifier (EDFA) utilizes dual high performance 980nm & 1480nm pump lasers, providing 16dBm~23dBm output power with low noise figure of less than 7dB from 1540 to 1560nm. It is designed to amplify 1550nm optical analog and digital signals to increase the optical transmission distance over fiber in CATV application.


The unit is designed with heat dissipation and ventilation in mind to ensure a long operation life, packaged in a self‐contained 19” rack-mount of 1RU with universal mains power supply. It adopts the premium grade pump laser and America OFM erbium-doped optical fiber, pump laser is well protected with the complete control of APC, ACC and ATC circuitry.
The EDFA also feature RS-232 and SNMP via RJ45 for remote system monitoring and management. They offer high reliability and performance for any system integration project, and can be applicable in the group center, substation and trunk circuit.

Features

  • CATV Booster Amplifier, extend analog CATV to suit long distance feeders or larger FTTH distribution systems within 1540~1560nm
  • Output power: +15 dBm
  • Input power: -3 ~ +10 dBm
  • Connectors: Simplex SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC available, if you need the duplex connector, please contact at [email protected]
  • Single or dual 110VAC, 220VAC, and/or -48VDC power supply
  • Reliable 980nm and 1480nm pump laser with very lower power dissipation
  • Microprocessor controlled power, temperature, laser current and other key parameters
  • Easy operation and installation with LCD display on front panel, rear fiber port as default. (Frontmated fiberaccess is also available)
  • High Precise ACC (automatic constant current) Circuit as default,if you need other circuit, please contact at [email protected]
  • ATC (automatic temperature control) function
  • 19” 1RU rack enclosure
  • RJ-45, RS-232 communication ports, with SNMP function
  • Support Telnet for optional
  • 3 years warranty
  • 10 years of operation life

Application

  • Analog & Digital CATV long distance transmission
  • For video optical Transmission system & AM CATV
  • Optical Distribution System
  • FTTx system
  • Laboratory application

Mechanical Structure

Structure Example


NOTE:


  • The CATV EDFA from F-tone including 1+2+3.
Parameters Symbol Min Typ Max Unit
Operation Wavelength λc 1530 1550 1562 nm
Saturated output power Po 15 dBm
Input power Pi -3 ------ 10 dBm
Gain G ------ ------ dB
Noise Figure NF ------ 4.5 ----- dB
Output Power Stability ΔPo ------ ±0.05 ±0.1 dB
Input Isolation ISOi 30 ------- ------ dB
Output Isolation ISOo 30 ------- ------ dB
Input pump leakage PumpLin ------- -35 dBm
Output pump leakage PumpLout ------- ------- -45 dBm
Return Loss RL ------- ------- -45 dB
Polarization Dependent Gain PDG ------ ------- 0.3 dB
PMD PMD ------ ------- 0.5 ps
Operation Temperature Tw -5 ----- 60 ℃
Storage Temperature Ts -40 ----- 80 ℃
Humidity 10 ------ 85 %
Power Supply Vps 85/170 110/220 132/264 VAC
Power Consumption P ----- ----- 18 W
SNMP network management interface RJ45
Serial interface RS232, RS485
Power supply 110VAC, 220 VAC, -48VDC
Connectors Simplex SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC available
Warranty 3 years





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
