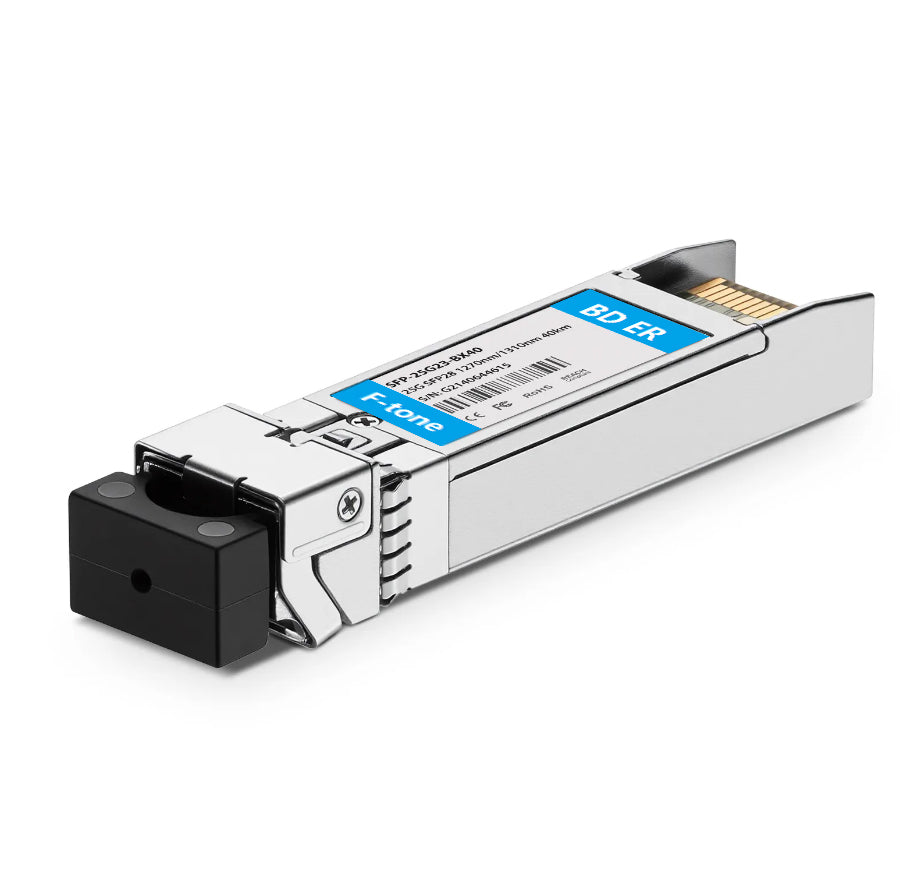

Cisco Compatible 25GBASE-U SFP28 BiDi 1270nm-TX/1310nm-RX 40km Simplex LC/UPC SMF Transceiver Module

Cisco Compatible 25GBASE-U SFP28 BiDi 1270nm-TX/1310nm-RX 40km Simplex LC/UPC SMF Transceiver Module

Просмотреть всю информацию

Part Number: SFP-25G23-BX40

Cisco Compatible 25GBASE-BX40-U SFP28 Optical Transceiver Module for Data Center and Telecom (SMF, 1270nm-TX/1310nm-RX, 40km, LC, DOM)

This Cisco compatible SFP28 transceiver provides 25GBase-BX throughput up to 40km over single mode fiber (SMF) using a wavelength of 1270nm-TX/1310nm-RX via an LC simplex connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Note: The FS P/N is changed from SFP28-25G-BX40 to SFP-25G23-BX40, but the product is the same. Only the FS P/N has been changed.

Specifications



Description

Parameter Value Parameter Value
Cisco Compatible SFP-25G23-BX40 Vendor Name F-tone
Form Factor SFP28 Max. Data Rate 25.78Gbps
Wavelength 1270nm-TX/1310nm-RX Max. Cable Distance4 0km
Connector Simplex LC/UPC Media SMF
Transmitter Type DFB BiDi Receiver Type PIN
TX Power 0~6dBm Minimum Receiver Power <‑18dBm
Power Budget 11dB Receiver Overload 2dBm
Max. Power Consumption ≤1 W Extinction Ratio 3.5dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery) TX & RX Built‑in CDR Inbuilt FEC No
Protocols SFP28 MSA, CPRI, eCPRI Warranty 5 Years

Matched Pairs: It must be used in pairs with SFP28 1330nm‑TX/1270nm‑RX.




Quality Testing Program



Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.











This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
