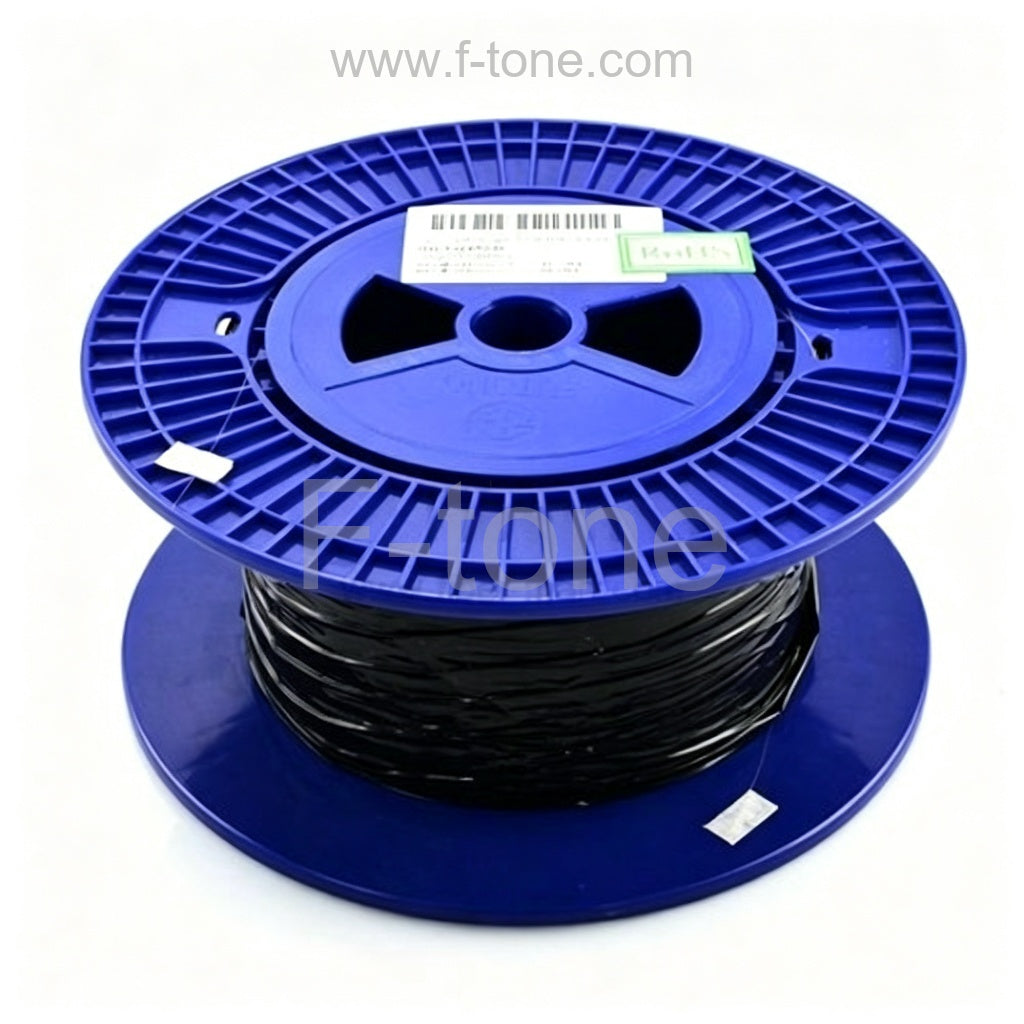

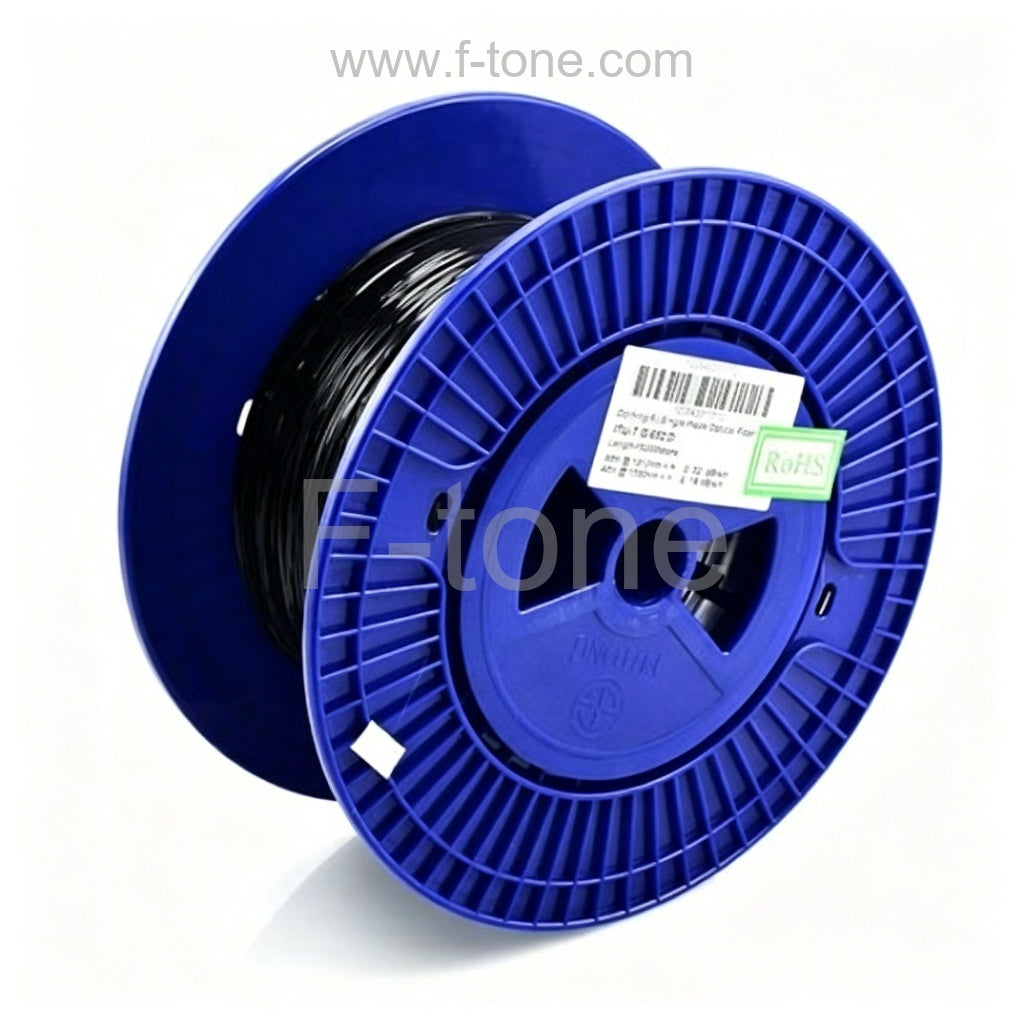

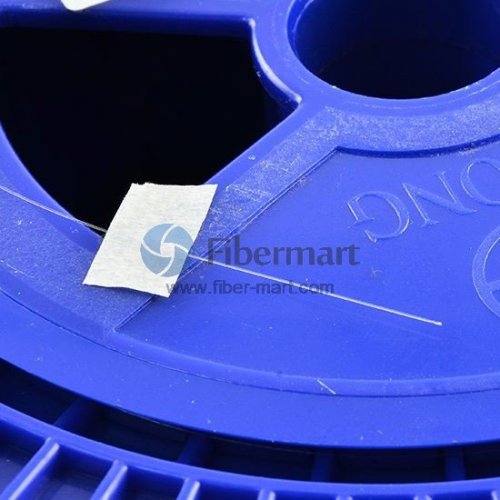

Corning® SMF-28e+ Singlemode Optical Fiber 9/125/250µm

Corning® SMF-28e+ Singlemode Optical Fiber 9/125/250µm

Просмотреть всю информацию

Part Number: CORNING-SMF28e+100Kpsi

Corning SMF-28e+ 9/125/250µm Single-mode Bare Fiber I per Km, Corning Bare Fiber, Bare Singlemode Fiber in Roll, Bare Roll Fiber

"The price above is for one kilometer length"

Corning SMF-28e+ Bare fiber addresses the transmission potential of full spectrum, optical transmission by eliminating high attenuation in and around the water-peak region (1360nm–1460nm). This premium attenuation fiber is suitable for transmission applications in the access and metropolitan/access application spaces.

SMF-28e+ fiber is suitable for various applications with link lengths less than 80km and data rates around 2.5Gbps. While providing compatibility with carriers' legacy systems, SMF-28e+ fiber is optimized for various CWDM applications and provides flexibility and versatility in network design, as it enables the use of the full transmission window. Buy Corning Bare Fiber, Corning Fiber, Bare Fiber in Roll at F-tone.com

Item Details

  • Fiber Count: 1 Fiber
  • Core Size: 9μm
  • Cladding Size: 125μm
  • Jacket Size: 250μm
  • Fiber Type: Corning SMF-28e+
  • Fiber Screening: 100Kpsi

Features
  • In compliance with or exceeding the industry's most stringent requirements, including:
    ITU-T G.652 (Categories A, B, C & D)
    IEC Specifications 60793-2-50 Type B1.3
    TIA/EIA 492-CAAB
    Telcordia's GR-20
  • Confidence in long-term performance.
  • Suitable for various applications with link lengths less than 80km and data rates around 2.5Gbps.
  • Optimized for various CWDM applications.
  • Versatility in 1310nm and 1550nm applications.
  • Provides flexibility and versatility in network design.
  • The entire fiber length is subjected to a tensile proof stress ≥100kpsi(0.7 GN/m2)).
Application
  • Suitable for transmission applications in the access and metropolitan/access application spaces
  • Widely used in the transmission of voice, data, and video services

Corning SMF-28e+ 9/125/250µm Singlemode Bare Fiber I


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
