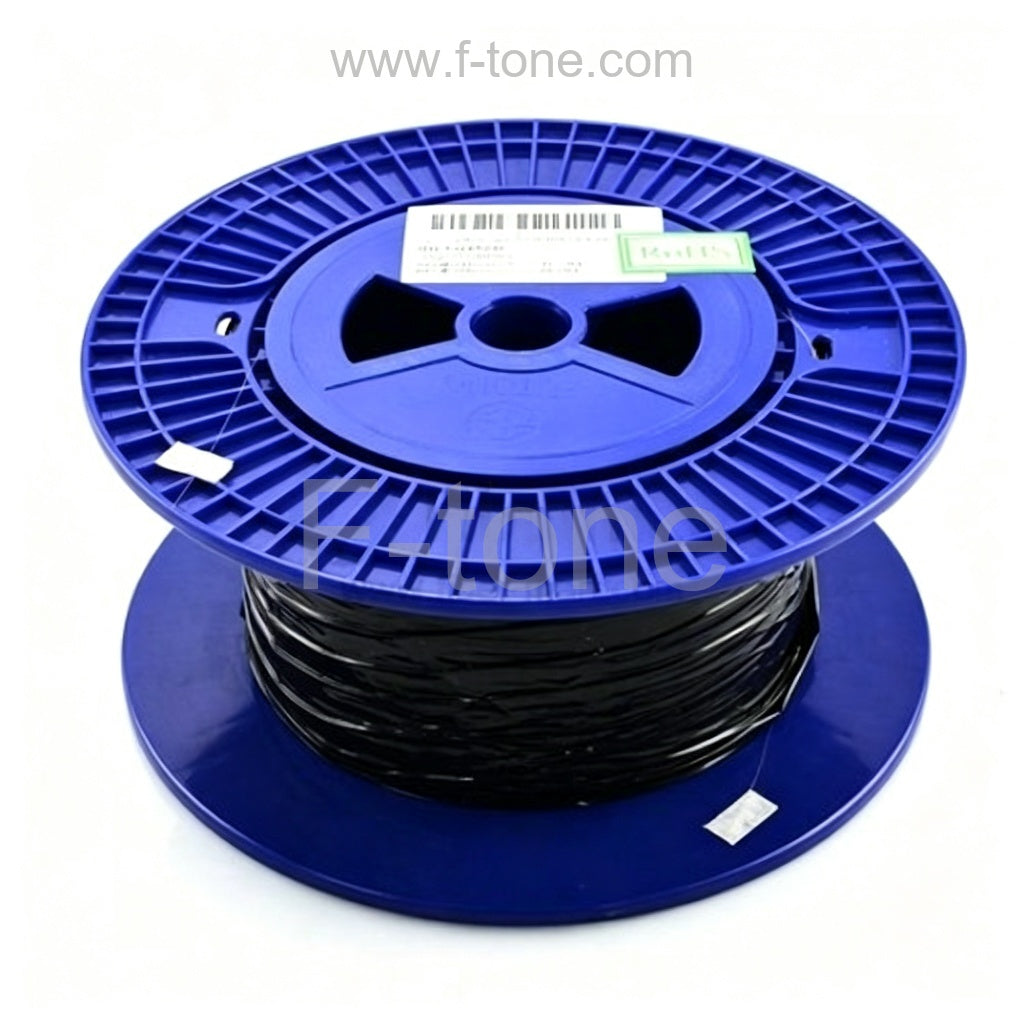

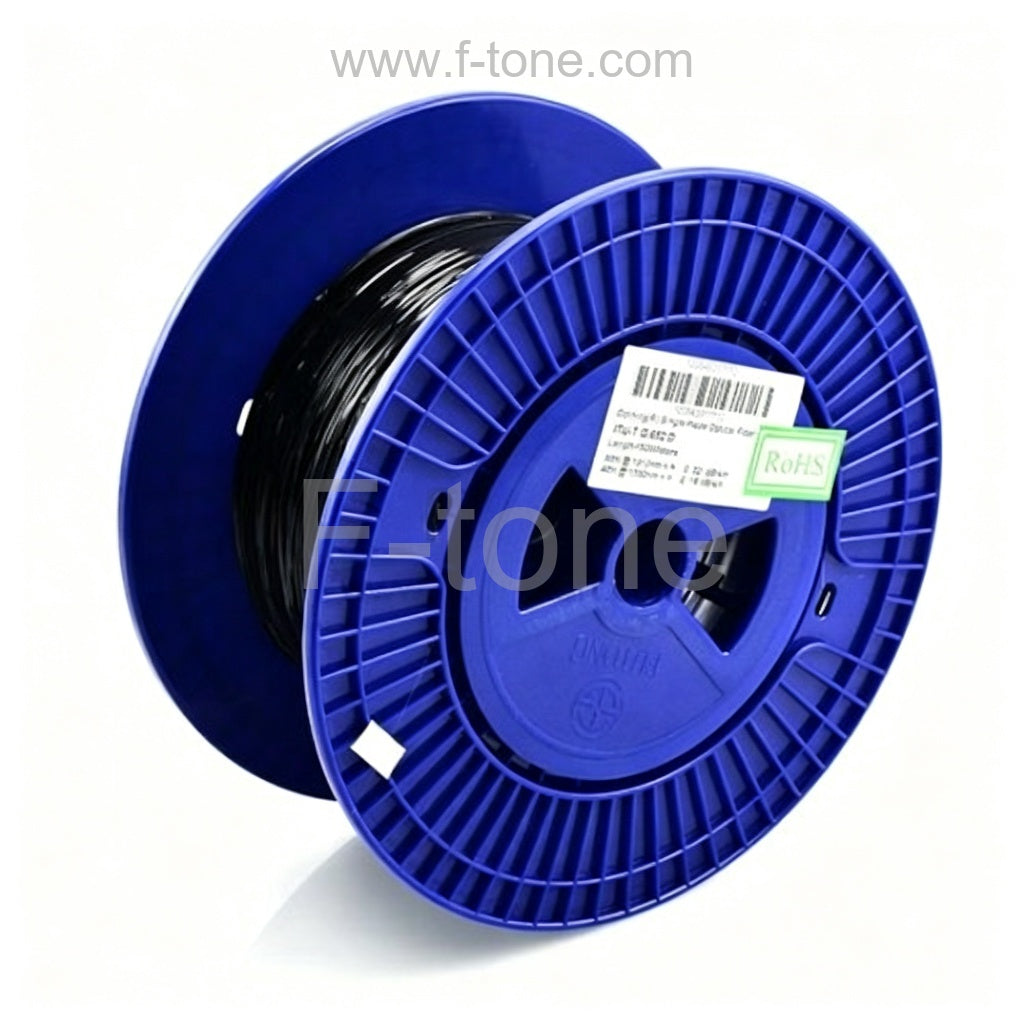

Colored Corning LEAF Fiber-9/125/250µm Non-Zero Dispersion-Shifted SingleMode Fiber per Km

Colored Corning LEAF Fiber-9/125/250µm Non-Zero Dispersion-Shifted SingleMode Fiber per Km

Просмотреть всю информацию

Part Number: CORNING-SMFLFC

Colored Corning LEAF Fiber-9/125/250µm Non-Zero Dispersion-Shifted SingleMode Fiber per Km

"The price above is for one kilometer length"



This Non-Zero Dispersion-Shifted single-mode fiber is suitable for high capacity, high data rate metro and long haul network applications.It is the industry's leader in polarization mode dispersion (PMD) specifications, enabling evolution from 10Gb/s networks to the 40Gb/s systems of the future.

Item Details

  • FiberCount:1 fiber
  • Core Size: 9µm
  • Cladding Size: 125µm
  • Jacket Size: 250µm
  • Fiber Type: Corning LEAF Fiber SMF G.655

Features
  • The world’s first large effective area, non-zero dispersion-shifted fiber NZ-DSF.
  • Optimized for long-haul and high-data-rate metro networks.
  • The world’s most widely deployed NZ-DSF.
  • The industry leader in polarization mode dispersion (PMD) specifications, enabling evolution from today’s 10Gb/s networks to the 40Gb/s systems of the future.
  • The world’s first low-water-peak NZ-DSF.
  • The entire fiber length is subjected to a tensile stress ≥100kpi (0.7GPa).
  • In compliance with the industry’s most stringent requirements, including:
    ITU-T G.655 (Tables A,B,C,D)
    IEC Specifications 60793-2-50 Type B4
    TIA/EIA 492-EA00
    Telcordia’s GR-20
Application
  • Suitable for high capacity, high data rate metro
  • Long haul network applications

Corning LEAF Fiber-9/125/250µm Non-Zero Dispersion-Shifted Single- Mode Fiber


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
