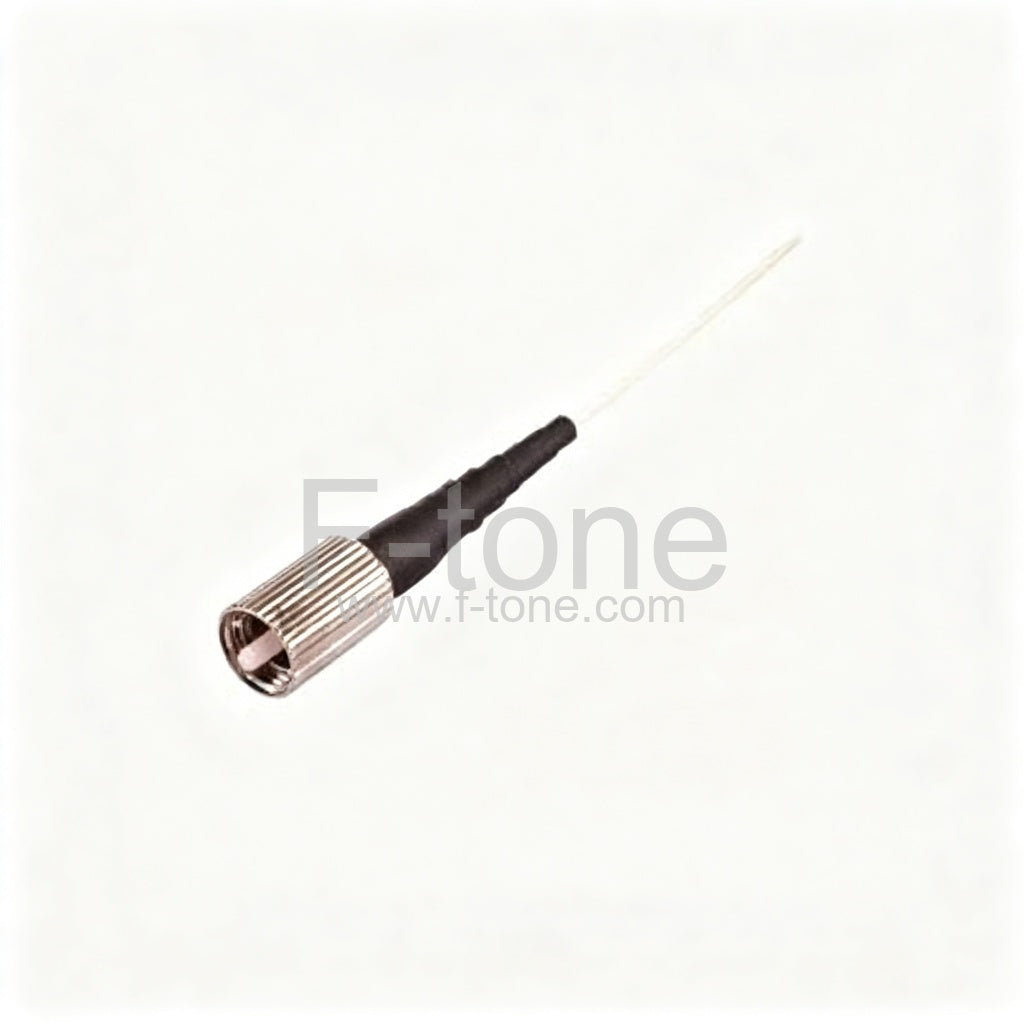

D4 UPC Fiber Optic Connector

D4 UPC Fiber Optic Connector

Просмотреть всю информацию

Part Number: D4-FM

D4 UPC Fiber Optic Connector

D4 connector is one of the older generation connectors, it’s keyed and spring loaded, the ferrule has a diameter of 2.0mm. D4 crimp style connector features a nickel plated brass body for enhanced durability, supply boots in a variety of colors, also provide a singlemode epoxy/crimples version for quick and easy termination.

Specifications

  • Location key structure have high precision alignment
  • Corrosion resistant body (Nickel plated brass)
  • Spring style ferrule
  • Variety of boot colors
  • Low insertion loss and back reflection loss
  • Comply with ROHS
  • Operating Temperature: -40 to + 85°C

Applications

  • CATV
  • Active device termination
  • Test equipment
  • Local Area Networks (LANs)
  • Telecommunication networks
  • Data processing networks
  • Wide Area Networks (WANs)

Specifications

  • Location key structure have high precision alignment
  • Corrosion resistant body (Nickel plated brass)
  • Spring style ferrule
  • Variety of boot colors
  • Low insertion loss and back reflection loss
  • Comply with ROHS
  • Operating Temperature: -40 to + 85°C

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
