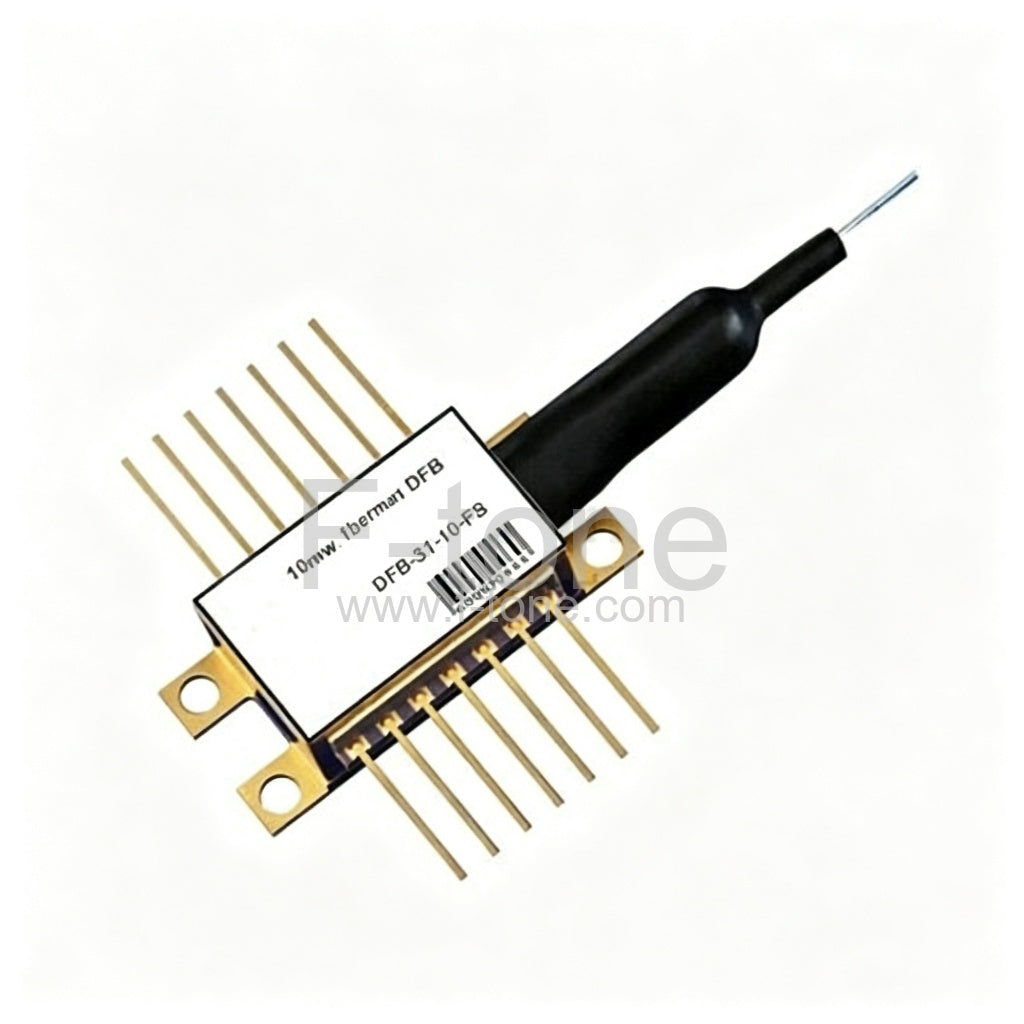

CATV 30MW 1310nm DFB butterfly laser diodes

CATV 30MW 1310nm DFB butterfly laser diodes

Просмотреть всю информацию

Part Number: DFB-CATV-31-30-FM

CATV DFB butterfly laser diodes 30MW 1310nm

DFB butterfly laser module is specialized for adopting the high-quality MQW-DFB chip to meet the requirement of a high-speed, specific-wavelength light transmission system. It can be used for continuous-wave and pulsed applications such as sensing, frequency doubling, light detection and ranging, and injection seeding for fiber amplifiers or lasers.

F-tone CATV 30MW 1310nm DFB butterfly laser module produces laser beams with a particular wavelength. It is able to deliver output power of 30MW. The 14-pin butterfly laser module will be supplied with a built-in optical isolator, a monitor photodiode, a thermoelectric cooler, and FC/APC connector and is pigtailed with a polarization-maintaining fiber. The built-in thermoelectric cooler enables the laser device to run stably under various environmental conditions. This series of product has found wide applications in the LAN, WAN, MAN, CATV transmission system, and long distance DMDW transmission system. It also can be used in the stabilized light source, modulated light source, or other communication equipment such as the CATV transmitter.

Features

  • High linearity Direct Modulation DFB laser
  • Built-in Isolator, TEC, Thermistor and Monitor PD
  • Hermetically sealed 14 Pin Butterfly Package Module
  • Optimized for 2.5 Gb/s Modulation Rates
  • Emission wavelength 1310 nm
  • Output power 30MW
  • Single mode FC/APC connector or customized
  • Singlemode fiber pigtail
  • PAL and NTSC system loading available
  • RoHs compliant

Application

  • Long reach analog transmission systems
  • CATV forward-path
  • 1310nm broadcast and point-to-point applications

Pin Description:

Package Outline:

Specifications(optical & electrical Characteristics)

Parameter Symbol Test Conditions Min. Typ. Max. Unit
Operating Voltage Vop CW - - 1.8 V
Threshold Current Ith CW - 10 20 mA
Thermistor Rth 25℃ 9.5 10 10.5 K
Thermoelectric cooler current Icooler CW,-5℃~60℃ - - 1000 mA
Thermoelectric cooler voltage Vcooler CW,-5℃~60℃ - - 1.5 V
Monitor Current Im CW,VRD=5V 9 - 150 uA/mW
Monitor Dark Current Id CW,VRD=5V - - 500 nA
Central Wavelength λC CW - 1310 1330 nm
Output power Po CW 1290 - 30 mW
Bias Current IB - 4 - 70 mA
Side mode suppression ratio SMSR CW,Iop=10mW - 50 - dB
Slope Efficiency Se CW 30 0.3 mW/mA
Spectral Width Δλ CW,-20dB - 0.3 nm
Tracking Error ΔPf CW,-5℃~60℃
Im=Im@25℃		 - - 0.5 dB
Monitor PD capacitance C VRD=5V,F=1MHz - - 0.5 pF
Connector Repeatability - CW - - 0.3 dB
Composite Second Order CSO If=IOP, Optical
Modulation,Index=3.
2%/channel(minimu
m),CNR,CSO,CTB
tested valuse at
worst case over all
test frequencies.
NTSC 120ch.,10km
singlemode
fiber,-1dBm,
received Power,
Receiver
responsivity=0.85A/
W		 - -60 -57 dBC
Composite Triple Beat CTB - -67 -65 dBC
Carrier Noise Ratio CNR 51 - - dB
Frequency range F - - 870 MHZ
Tracking Error Er TC =-20~65℃,
APC,ATC		 - - 1 dB

Specifications(optical & electrical Characteristics)

Parameter Symbol Test Conditions Min. Typ. Max. Unit
OperatingVoltage Vop CW - - 1.8 V
ThresholdCurrent Ith CW - 10 20 mA
Thermistor Rth 25℃ 9.5 10 10.5 K
Thermoelectriccoolercurrent Icooler CW,-5℃~60℃ - - 1000 mA
Thermoelectriccoolervoltage Vcooler CW,-5℃~60℃ - - 1.5 V
MonitorCurrent Im CW,VRD=5V 9 - 150 uA/mW
MonitorDarkCurrent Id CW,VRD=5V - - 500 nA
CentralWavelength λC CW - 1310 1330 nm
Outputpower Po CW 1290 - 30 mW
BiasCurrent IB - 4 - 70 mA
Sidemodesuppressionratio SMSR CW,Iop=10mW - 50 - dB
SlopeEfficiency Se CW 30 0.3 mW/mA
SpectralWidth Δλ CW,-20dB - 0.3 nm
TrackingError ΔPf CW,-5℃~60℃
Im=Im@25℃		 - - 0.5 dB
MonitorPDcapacitance C VRD=5V,F=1MHz - - 0.5 pF
ConnectorRepeatability - CW - - 0.3 dB
Composite SecondOrder CSO If=IOP, Optical
Modulation,Index=3.
2%/channel(minimu
m),CNR,CSO,CTB
tested valuse at
worst case over all
test frequencies.
NTSC 120ch.,10km
singlemode
fiber,-1dBm,
received Power,
Receiver
responsivity=0.85A/
W		 - -60 -57 dBC
CompositeTripleBeat CTB - -67 -65 dBC
CarrierNoiseRatio CNR 51 - - dB
Frequencyrange F - - 870 MHZ
TrackingError Er TC =-20~65℃,
APC,ATC		 - - 1 dB





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
