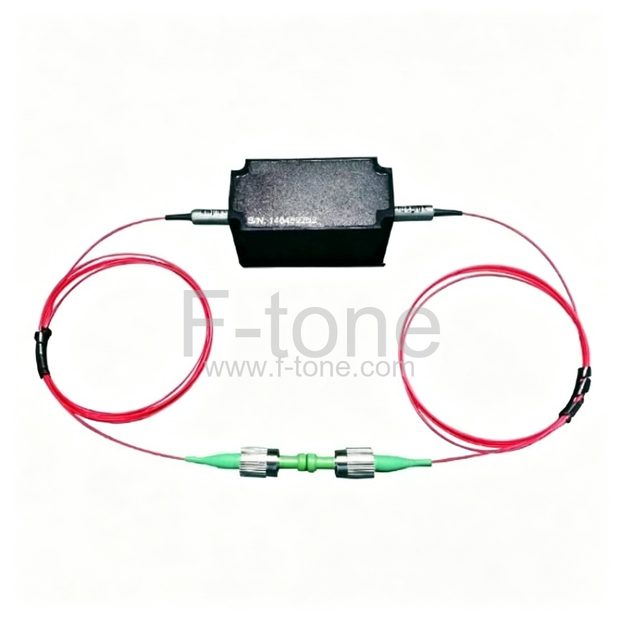

10MW 1550nm DWDM DFB butterfly laser diodes

10MW 1550nm DWDM DFB butterfly laser diodes

Просмотреть всю информацию

Part Number: DFB-DWDM-55-10-FM

1550 DFB Laser Diode, 10MW 1550nm DWDM DFB butterfly laser module

DFB butterfly laser module is specialized for adopting the high-quality MQW-DFB chip to meet the requirement of a high-speed, specific-wavelength light transmission system. It can be used for continuous-wave and pulsed applications such as sensing, frequency doubling, light detection and ranging, and injection seeding for fiber amplifiers or lasers. The 1550 DFB Laser Diode is also widely used in these applications, offering excellent performance at the 1550 nm wavelength, ideal for long-distance transmission in optical networks.



F-tone 10MW 1550nm DWDM DFB butterfly laser module produces laser beams with a particular wavelength. It is able to deliver output power of 10MW. The 14-pin butterfly laser module will be supplied with a built-in optical isolator, a monitor photodiode, a thermoelectric cooler, and FC/APC connector and is pigtailed with a polarization-maintaining fiber. The built-in thermoelectric cooler enables the laser device to run stably under various environmental conditions. This series of product has found wide applications in the LAN, WAN, MAN, CATV transmission system, and long distance DMDW transmission system. It also can be used in the stabilized light source, modulated light source, or other communication equipment such as the CATV transmitter.

Features

  • High linearity Direct Modulation DFB laser
  • Built-in Isolator, TEC, Thermistor and Monitor PD
  • Hermetically sealed 14 Pin Butterfly Package Module
  • Optimized for 2.5 Gb/s Modulation Rates
  • Emission wavelength 1550 nm
  • Output power 10MW
  • Single mode FC/APC connector or customized
  • Singlemode fiber pigtail
  • PAL and NTSC system loading available
  • RoHs compliant

Application

  • Long reach analog transmission systems
  • CATV forward-path
  • 1550nm broadcast and point-to-point applications

Pin Description:

Package Outline:

Specifications(optical & electrical Characteristics)

Parameter Symbol Test Conditions Min. Typ. Max. Unit
Operating Voltage Vop CW - 1.2 1.9 V
Threshold Current Ith CW - 20 40 mA
Thermistor Rth 25℃ 9.5 10.5 K
Thermoelectric cooler current Icooler CW,-5℃~60℃ - - 1500 mA
Thermoelectric cooler voltage Vcooler CW,-5℃~60℃ - - 2 V
Monitor Current Im CW,VRD=5V 9 - 150 uA/mW
Monitor Dark Current Id CW,VRD=5V - - 200 nA
Central Wavelength λC CW - 1560 nm
Output power Po CW 1530 - 10 mW
Bias Current IB - 2 - 70 mA
Side mode suppression ratio SMSR CW,Iop=10mW - - - dB
Slope Efficiency Se CW 30 0.3 mW/mA
Spectral Width Δλ CW,-20dB - 0.3 nm
Tracking Error ΔPf CW,-5℃~60℃
Im=Im@25℃		 - - 0.5 dB
Monitor PD capacitance C VRD=5V,F=1MHz - - 0.5 pF
Connector Repeatability - CW - - 0.3 dB
Composite Second Order CSO If=IOP, Optical
Modulation,Index=3.
2%/channel(minimu
m),CNR,CSO,CTB
tested valuse at
worst case over all
test frequencies.
NTSC 120ch.,10km
singlemode
fiber,-1dBm,
received Power,
Receiver
responsivity=0.85A/
W		 - - -44 dBC
Composite Triple Beat CTB - - -53 dBC
Frequency range F - - 3000 MHZ
Tracking Error Er TC =-20~65℃,
APC,ATC		 - - 1 dB

Specifications(optical & electrical Characteristics)

Parameter Symbol Test Conditions Min. Typ. Max. Unit
Operating Voltage Vop CW - 1.2 1.9 V
Threshold Current Ith CW - 20 40 mA
Thermistor Rth 25℃ 9.5 10.5 K
Thermoelectric cooler current Icooler CW,-5℃~60℃ - - 1500 mA
Thermoelectric cooler voltage Vcooler CW,-5℃~60℃ - - 2 V
Monitor Current Im CW,VRD=5V 9 - 150 uA/mW
Monitor Dark Current Id CW,VRD=5V - - 200 nA
Central Wavelength λC CW - 1560 nm
Output power Po CW 1530 - 10 mW
Bias Current IB - 2 - 70 mA
Side mode suppression ratio SMSR CW,Iop=10mW - - - dB
Slope Efficiency Se CW 30 0.3 mW/mA
Spectral Width Δλ CW,-20dB - 0.3 nm
Tracking Error ΔPf CW,-5℃~60℃
Im=Im@25℃		 - - 0.5 dB
Monitor PD capacitance C VRD=5V,F=1MHz - - 0.5 pF
Connector Repeatability - CW - - 0.3 dB
Composite Second Order CSO If=IOP, Optical
Modulation,Index=3.
2%/channel(minimu
m),CNR,CSO,CTB
tested valuse at
worst case over all
test frequencies.
NTSC 120ch.,10km
singlemode
fiber,-1dBm,
received Power,
Receiver
responsivity=0.85A/
W		 - - -44 dBC
Composite Triple Beat CTB - - -53 dBC
Frequency range F - - 3000 MHZ
Tracking Error Er TC =-20~65℃,
APC,ATC		 - - 1 dB





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
