Part Number: DWDM-SFP1GH-80FM

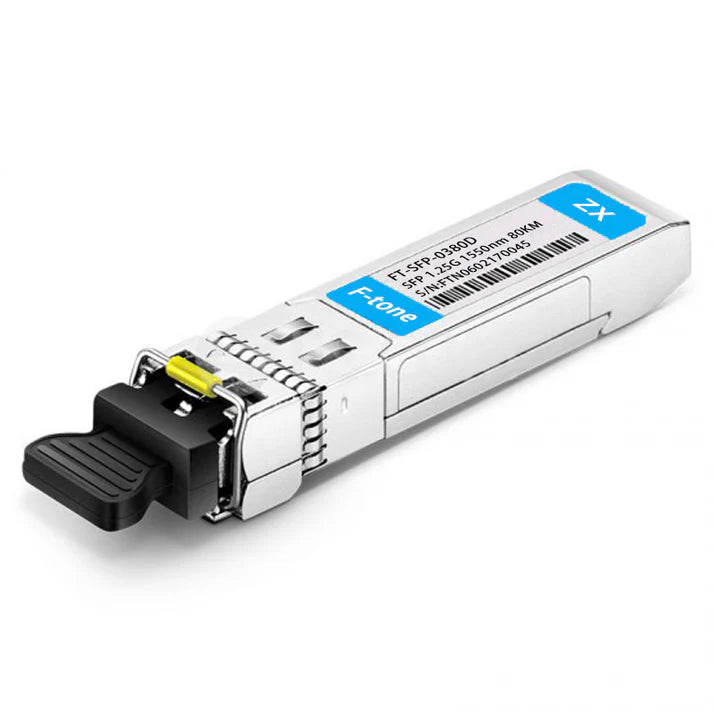

1000BASE-DWDM 50GHz DWDM SFP 80km Transceiver

DWDM-SFP1GH-80

The DWDM-SFP1GH-80 series single mode transceiver is small form factor pluggable module for duplex optical data communications. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528.77nm to 1563.86nm as specified by the ITU-T. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses a DWDM multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The DWDM-SFP1GH-80 series are designed to be compliant with SFF-8472 Multi-Source Agreement (MSA).

Key Features

  • Operating Data Rate up to 1.25Gbps
  • Available in all C-Band Wavelengths on the 50GHz DWDM ITU Grid
  • Compliant with Class 1 FDA and IEC60825-1 Laser Safety Connector
  • Single 3.3V Power Supply and TTL Logic Interface
  • Hot-Pluggable SFP Footprint Duplex LC
  • Compliant with SFF MSA
  • Compliant with SFF-8432
  • Average Output Power:0~5dBm
  • Receiver Sensitivity:-24dBm

Applications

  • Amplified DWDM networks
  • Fiber Channel
  • Ring topologies with fixed and reconfigurable OADMs
  • Fast Ethernet, Giga Ethernet
  • Other optical transmission systems

Datasheet

Part Number Distance Type Port
CWDM-SFP1G-20FM 20km CWDM LC
CWDM-SFP1G-40FM 40km CWDM LC
CWDM-SFP1G-80FM 80km CWDM LC
CWDM-SFP1G-120FM 120km CWDM LC
DWDM-SFP1G-40FM 40km DWDM LC
DWDM-SFP1G-80FM 80km DWDM LC
DWDM-SFP1G-100FM 100km DWDM LC
DWDM-SFP1G-120FM 120km DWDM LC

Quality Certification

Quality and standards are the foundation of F-tone.COM. We are dedicated to providing customers with outstanding, standards-compliant products and services. F-tone.COM has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Ordering Information

Part No. Data Rate (Gbps) Frequency
(GHz)		 Channel/
Wavelength(nm)		 TX Power (dBm) Re Sens. (dBm) Transmission Distance Fiber Type Connector Type Temp. Range Digital Diagnostics
DSFP-1GXX-20 ≤1.25 100GHz CH17~CH61
(1563.86~1528.77)		 20km SMF LC Com./Ex./Ind. Yes/No
DSFP-1GXX-40 ≤1.25 100GHz CH17~CH61
(1563.86~1528.77)		 40km SMF LC Com./Ex./Ind. Yes/No
DSFP-1GXX-80 ≤1.25 100GHz CH17~CH61
(1563.86~1528.77)		 0~5 ﹤-24 80km SMF LC Com./Ex./Ind. Yes/No
DSFP-1GXX-100 ≤ 1.25 100GHz CH17~CH61
(1563.86~1528.77)		 0~5 ﹤-28 100km SMF LC 0~70℃ Yes/No
DSFP-1GXX-120 ≤ 1.25 100GHz CH17~CH61
(1563.86~1528.77)		 0~5 ﹤-32 120km SMF LC 0~70℃ Yes/No
DSFP-1GXX-160 ≤ 1.25 100GHz CH17~CH61
(1563.86~1528.77)		 2~5 ﹤-35 160km SMF LC Com./Ex./Ind. Yes/No
DSFP-1GHXXX-80 ≤ 1.25 50GHz CH17~CH61
(1563.86~1528.38)		 0~5 ﹤-24 80km SMF LC Com./Ex./Ind. Yes/No
DSFP-1GHXXX-100 ≤ 1.25 50GHz CH17~CH61
(1563.86~1528.38)		 0~5 ﹤-28 100km SMF LC 0~70℃ Yes/No
DSFP-1GHXXX-120 ≤ 1.25 50GHz CH17~CH61
(1563.86~1528.77)		 0~5 ﹤-32 120km SMF LC 0~70℃ Yes/No
DSFP-1GHXXX-160 ≤ 1.25 50GHz CH17~CH61
(1563.86~1528.77)		 2~5 ﹤-35 160km SMF LC Com./Ex./Ind. Yes/No

Notes

  • XX means DWDM ITU Channel (CH17 = 1563.86nm, CH18 =1563.05nm, CH19 = 1562.23nm, CH20 = 1561.42nm, etc.)
  • xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)

Packaging

  • Antistatic bag
  • Packed on pallets in a box(Default Customer Options)
  • Specific Labels as Request
  • Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, F-tone provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.

  • OEM/ODM order is available
  • We can supply DWDM-SFP1GH-80 according to your requirements, and design DWDM-SFP1GH-80 label and packaging for your company. We welcome any inquiry for customized DWDM SFP optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying DWDM SFP From Original Manufacturer F-tone Directly.

F-tone is an professional manufacturer & supplier of DWDM SFP+ transceivers. All of our DWDM SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee DWDM SFP transceivers to work in your system and all of our DWDM SFP transceivers come with a lifetime advance replacement warranty. If you have questions about DWDM SFP optics, please feel free to contact us at [email protected].

All the Wavelengths that we can offer refer to the following table:

Channel Part No. Frequency (GHz) Center Wavelength (nm)
H61 DSFP-1GHH61-80 196.15 1528.38
C61 DSFP-1GHC61-80 196.10 1528.77
H60 DSFP-1GHH60-80 196.05 1529.16
C60 DSFP-1GHC60-80 196.00 1529.55
H59 DSFP-1GHH59-80 195.95 1529.94
C59 DSFP-1GHC59-80 195.90 1530.33
H58 DSFP-1GHH58-80 195.85 1530.73
C58 DSFP-1GHC58-80 195.80 1531.12
H57 DSFP-1GHH57-80 195.75 1531.51
C57 DSFP-1GHC57-80 195.70 1531.90
H56 DSFP-1GHH56-80 195.65 1532.29
C56 DSFP-1GHC56-80 195.60 1532.68
H55 DSFP-1GHH55-80 195.55 1533.07
C55 DSFP-1GHC55-80 195.50 1533.47
H54 DSFP-1GHH54-80 195.45 1533.86
C54 DSFP-1GHC54-80 195.40 1534.25
H53 DSFP-1GHH53-80 195.35 1534.64
C53 DSFP-1GHC53-80 195.30 1535.04
H52 DSFP-1GHH52-80 195.25 1535.43
C52 DSFP-1GHC52-80 195.20 1535.82
H51 DSFP-1GHH51-80 195.15 1536.22
C51 DSFP-1GHC51-80 195.10 1536.61
H50 DSFP-1GHH50-80 195.05 1537.00
C50 DSFP-1GHC50-80 195.00 1537.40
H49 DSFP-1GHH49-80 194.95 1537.79
C49 DSFP-1GHC49-80 194.90 1538.19
H48 DSFP-1GHH48-80 194.85 1538.58
C48 DSFP-1GHC48-80 194.80 1538.98
H47 DSFP-1GHH47-80 194.75 1539.37
C47 DSFP-1GHC47-80 194.70 1539.77
H46 DSFP-1GHH46-80 194.65 1540.16
C46 DSFP-1GHC46-80 194.60 1540.56
H45 DSFP-1GHH45-80 194.55 1540.95
C45 DSFP-1GHC45-80 194.50 1541.35
H44 DSFP-1GHH44-80 194.45 1541.75
C44 DSFP-1GHC44-80 194.40 1542.14
H43 DSFP-1GHH43-80 194.35 1542.54
C43 DSFP-1GHC43-80 194.30 1542.94
H42 DSFP-1GHH42-80 194.25 1543.33
C42 DSFP-1GHC42-80 194.20 1543.73
H41 DSFP-1GHH41-80 194.15 1544.13
C41 DSFP-1GHC41-80 194.10 1544.53
H40 DSFP-1GHH40-80 194.05 1544.92
C40 DSFP-1GHC40-80 194.00 1545.32
H39 DSFP-1GHH39-80 193.95 1545.72
C39 DSFP-1GHC39-80 193.90 1546.12
H38 DSFP-1GHH38-80 193.85 1546.52
C38 DSFP-1GHC38-80 193.80 1546.92
H37 DSFP-1GHH37-80 193.75 1547.32
C37 DSFP-1GHC37-80 193.70 1547.72
H36 DSFP-1GHH36-80 193.65 1548.12
C36 DSFP-1GHC36-80 193.60 1548.52
H35 DSFP-1GHH35-80 193.55 1548.92
C35 DSFP-1GHC35-80 193.50 1549.32
H34 DSFP-1GHH34-80 193.45 1549.72
C34 DSFP-1GHC34-80 193.40 1550.12
H33 DSFP-1GHH33-80 193.35 1550.52
C33 DSFP-1GHC33-80 193.30 1550.92
H32 DSFP-1GHH32-80 193.25 1551.32
C32 DSFP-1GHC32-80 193.20 1551.72
H31 DSFP-1GHH31-80 193.15 1552.12
C31 DSFP-1GHC31-80 193.10 1552.52
H30 DSFP-1GHH30-80 193.05 1552.93
C30 DSFP-1GHC30-80 193.00 1553.33
H29 DSFP-1GHH29-80 192.95 1553.73
C29 DSFP-1GHC29-80 192.90 1554.13
H28 DSFP-1GHH28-80 192.85 1554.54
C28 DSFP-1GHC28-80 192.80 1554.94
H27 DSFP-1GHH27-80 192.75 1555.34
C27 DSFP-1GHC27-80 192.70 1555.75
H26 DSFP-1GHH26-80 192.65 1556.15
C26 DSFP-1GHC26-80 192.60 1556.56
H25 DSFP-1GHH25-80 192.55 1556.96
C25 DSFP-1GHC25-80 192.50 1557.36
H24 DSFP-1GHH24-80 192.45 1557.77
C24 DSFP-1GHC24-80 192.40 1558.17
H23 DSFP-1GHH23-80 192.35 1558.58
C23 DSFP-1GHC23-80 192.30 1558.98
H22 DSFP-1GHH22-80 192.25 1559.39
C22 DSFP-1GHC22-80 192.20 1559.79
H21 DSFP-1GHH21-80 192.15 1560.20
C21 DSFP-1GHC21-80 192.10 1560.61
H20 DSFP-1GHH20-80 192.05 1561.01
C20 DSFP-1GHC20-80 192.00 1561.41
H19 DSFP-1GHH19-80 191.95 1561.83
C19 DSFP-1GHC19-80 191.90 1562.23
H18 DSFP-1GHH18-80 191.85 1562.64
C18 DSFP-1GHC18-80 191.80 1563.05
H17 DSFP-1GHH17-80 191.75 1563.46
C17 DSFP-1GHC17-80 191.70 1563.86

Prices and specifications are subject to change without notice. F-tone.Com Transceiver is not responsible for typographical or photographic errors.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
