FAU Edge Coupling

FAU Edge Coupling

Просмотреть всю информацию

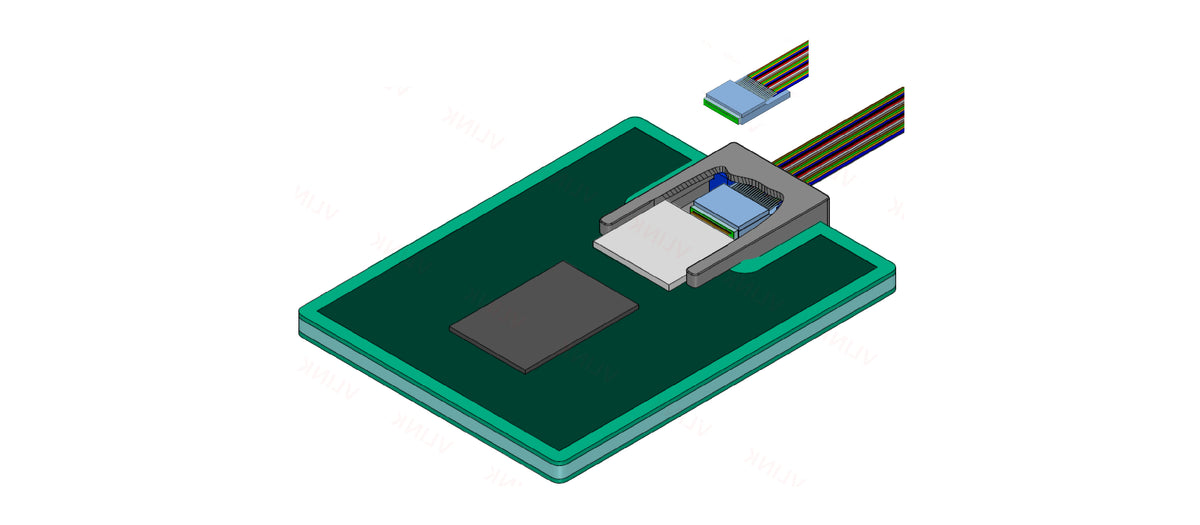

The Edge-Coupling Fiber Array Unit is designed for High-Precision optical coupling between fiber arrays and photonic integrated circuits, including silicon photonics, thin-film lithium niobate, InP, glass waveguides, and other Edge-Coupled optical chips. With tightly controlled fiber core positioning, customized End-Face geometry, and flexible mechanical design, the FAU enables stable, Low-Loss, and scalable optical interconnection for High-Speed optical transceivers, coherent modules, CPO/OIO architectures, optical sensing, and advanced photonic packaging.



Key Features Applications
High-precision fiber core alignment for edge-coupled photonic chips Silicon photonics edge coupling
Customizable fiber pitch: 127 μm/250 μm/Customer-Specific (1D or 2D) Thin-Film lithium niobate modulator coupling
Supports SMF, PM fiber, polarization-maintaining fiber arrays, and specialty fibers Coherent optical modules
Optional angled polish for back-reflection reduction 800G/1.6T optical transceivers
Compatible with SiPh, TFLN, InP, PLC, glass, and other photonic platforms CPO/optical I/O packaging
Custom mechanical outline for active/passive alignment and automated assembly Optical engine assembly
Available with lid glass, V-groove substrate, spacer, stopper, and customized bonding area LiDAR optical modules
Suitable for High-Density optical I/O and advanced photonic packaging Fiber sensing and test systemsMedical and scientific photonic systems



Specifications
Parameter Unit Value
Wavelength nm 1310
Fiber Count — 8 ch, 16 ch, 32 ch, 40 ch, 80 ch + (Customizable)
Max. Connector Insertion Loss dB 0.5
Max. Coupling Insertion Loss dB 1
Min. Return Loss dB 30
Min. PER dB 20
Fiber Pitch Spacing μm 84 μm, 127 μm, 250 μm (Customizable)
Max. Core Pitch Error μm ± 1.0
Fiber Type — SM (G.657.A1/A2), PM Fiber, RCBI (Reduced-Clad)
Termination Connector Type — LC, FC, MPO, MMC, ELSFP Connector (Customizable)
Operating Temperature °C - 40 °C to + 85 °C








This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
