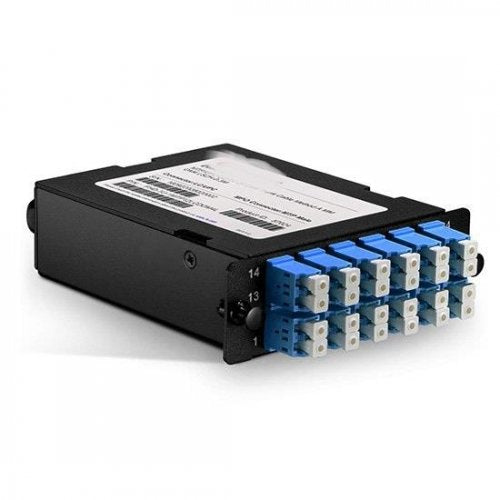

MTP to 12x LC/UPC Duplex, 0.35dB IL, Polarity A, 24 Fibers OS2 Single Mode MPO/MTP Cassette

MTP to 12x LC/UPC Duplex, 0.35dB IL, Polarity A, 24 Fibers OS2 Single Mode MPO/MTP Cassette

Просмотреть всю информацию

Part Number: FHD-1U-1MTP12LCDSMFL

MTP Male to 12x LC/UPC Duplex, 0.35dB IL, Polarity A, 24 Fibers OS2 Single Mode MPO/MTP Cassette

HD MTP Modular Cassettes Solution in Data CenterDesigned for high-density applications, helping users saving more spaces.

Structure of HD MPO MTP Cassette

F-tone's MTP Cassette Modules are fitted with 12 or 24 Fibers and have LC, SC adapters on the front side and MTP at the rear. This cassette was made into smaller size and can be deployed in an ODF for higher density main distribution area (MDA) to the equipment distribution area (EDA) in the data center.

Features and Applications

Reliability 100%tested Ultra low insertion loss High performance zirconia sleeveOptimized performance, discrete premium connectorsHigh density applicated in interoffice cross-connects and campus environments
Enterprise data centersHigh performance zirconia sleeveColocation facilitiesCloud storage networks Telecommunication

HD MPO/MTP Cassette Polarity A, B1 and B2

Comparison Traditional Cabling with MTP Cassette Cabling Solutions

Modular system allows for rapid deployment of data center infrastructure during moves, adds and changes and this innovative system is specially designed to reduce installation time and cost for an optical network.

Cabling Solution Installation Time within Data Center Cost-Product and Labour Rack Space for Cable Management Fault Isolation Single Port Replacement Cabling Maintenance
Traditional Cabling Using LC to LC Panels High Medium High Easy Easy Medium
MTP Solutions Using MTP Trunks/Harness and Cassettes Ultra Low Medium Ultra Low Medium Hard Ultra Low

Fiber Enclosure with FHD-1U/4U Cassette

The HD series MPO/MTP Cassette will match most FHD series fiber enclosure. F-tone can provide 1RU fiber enclosure to hold up to 4 pieces HD cassettes (up to 96 fibers) and 4RU fiber enclosure to hold up to 12 pieces HD cassettes (up to 288 fibers).




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
