2 Door 4 Adapter Panel Wall Mount Fiber Enclosure

2 Door 4 Adapter Panel Wall Mount Fiber Enclosure

Просмотреть всю информацию

Part Number: FHD-FWME4

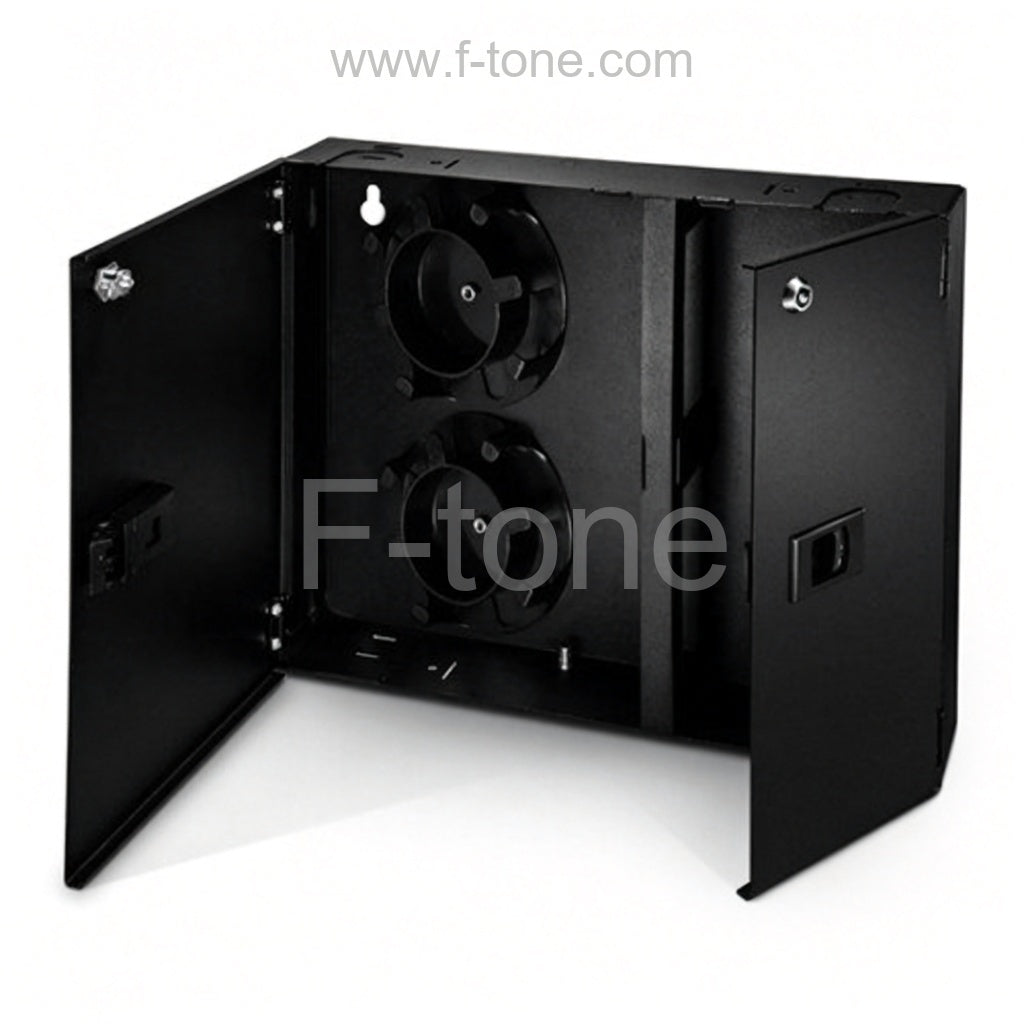

2-Door 4-Adapter Panel Wall Mount Fiber Enclosure

Ultra Low Insertion Loss and More Efficient Cabling Your Data CenterF-tone.COM Wall Mount Fiber Enclosure is a smart way to deploy your network in a building, more neatly, conveniently, and flexibly.

Learn More


F-tone's wall mount interconnect enclosure (FWME4) provides a convenient convergence point for interconnecting and splicing in wall mount applications. The enclosure features a well-engineered solution for fiber and cable management on both the ingress and egress openings of the enclosure.

Part Number FHD-FWME4 Vendor Name F-tone.COM
Fiber Count Max.96 Fibers Material SPCC (Black Coating)
Mounting Type Wall-Mountable Dimensions (WxHxD) 16.11"x12.28"x3.51"(409.2x312x89.4mm)
Related Product Adapter Panel,HD Cassette Compliant TIA/EIA-568-C.3

Product Highlights

Black Powder Coated SPCC Rugged Heavy-Duty Steel Housing

1.5mm SPCC steel to enhance fiber enclosure service life.

0.15mm powder better prevent housing scratches and rust.

Installation of FHD Fiber Enclosure

Accessories included in Fiber Enclosure

Accessories Optional for FHD Series Enclosure

Multi-Style Mounting and High-Density Installed in 10G/40G/100G Storage,Telecom and Data Center Housing

  • FHD Series Fiber Patch Cable Optional

  • FHD Series 24F MTP HD Cassette Optional

  • FHD Series 24F Adapter Panel Optional

Image Part Number ID# Description Price
FHD MTP Cassettes
FHD-1U-2MTP12LCDOM4L 57342 MTP-12 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, OM4, Polarity A US$ 99.00 Add to Cart
FHD-1U-1MTP12LCDOM4L 57024 MTP-24 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, OM4, Polarity A US$ 120.00 Add to Cart
FHD-1U-1MTP6LCDOM4LA 57017 MTP-12 to LC UPC Duplex 12 Fibers MPO/MTP Cassette, OM4, Polarity A US$ 55.00 Add to Cart
FHD-1U-2MTP12LCDSMFL 57341 MTP-12 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, Single Mode, Polarity A US$ 110.00 Add to Cart
FHD-1U-1MTP12LCDSMFL 57023 MTP-24 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, Single Mode, Polarity A US$ 150.00 Add to Cart
FHD-1U-1MTP6LCDSMFLA 57016 MTP-12 to LC UPC Duplex 12 Fibers MPO/MTP Cassette, Single Mode, Polarity A US$ 63.00 Add to Cart
FHD Adapter Panels
FHD-FAP12LCDXSMF 35488 Fiber Adapter Panel with 12 LC Duplex OS2 Singlemode Adapters (Blue), Zirconia Ceramic US$ 11.00 Add to Cart
FHD-FAP12LCDX10GMM 41998 Fiber Adapter Panel with 12 LC Duplex OM3/OM4 Multimode Adapters(Aqua), Zirconia Ceramic US$ 12.00 Add to Cart
FHD-FAP6SCDXSMF 35484 Fiber Adapter Panel with 6 SC Duplex OS2 Singlemode Adapters (Blue), Zirconia Ceramic US$ 8.00 Add to Cart
FHD-FAP6SCDZ10GMM 51284 Fiber Adapter Panel with 6 SC Duplex OM3/OM4 Multimode Adapters (Aqua), Zirconia Ceramic US$ 9.00 Add to Cart
FHD-FAP8MTPHA 35508 Fiber Adapter Panel with 8 MTP(12/24F) Key-up/Key-down Adapters (Black), Horizontal US$ 74.00 Add to Cart
FHD-FAP12MTPHA 35510 Fiber Adapter Panel with 12 MTP(12/24F) Key-up/Key-down Adapters (Black), Horizontal US$ 110.00 Add to Cart


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
