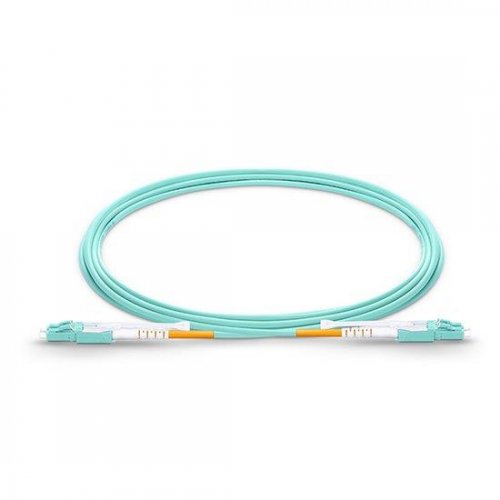

1M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) OM4 Multimode HD Fiber Patch Cable

1M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) OM4 Multimode HD Fiber Patch Cable

Просмотреть всю информацию

Part Number: FHD-PVCOM4PPDX-LC-LC-1

OM4 50/125 m Multimode LC to LC (High Density) Duplex Fiber Optic Patch Cable, with Push-pull Tab Connector - Aqua

High Density LC-HD Push-pull Tab Fiber Optic Patch Cable is a totally unique design which can increase panel density to its highest possible, and the lever design utilizes a flexible "push-pull tab" allowing for the connector to be disengaged easily from densely loaded panels without the need for special tools, allow users easy accessibility in tight areas when deploying in data center applications.

Connector Push-pull Tab LC to Push-pull Tab LC Jacket OD 2.0mm
Fiber Mode 50/125 m Jacket Color Aqua
Polish UPC to UPC Wavelength 850/1310nm
Fiber Type Duplex Jacket Material PVC
Insertion Loss 0.3dB Interchangeability 0.2dB
Return Loss 30dB Vibration 0.2dB
Operating Temperature -40~75C Storage Temperature -45~85C

Features and Application

Free-floating ceramic ferrule Easy to release trigger connectorLow insertion loss and reflection lossHigh-Speed, High-Bandwidth and Low-CostROHS, IEEE 802.3ae and TIA LOMMF compliantStackable adapters and high precision alignment60%increase in density
CATVMultimediaTest equipmentData centersActive device terminationTelecommunication networksPremise installations

LC Push-pull Tab Connector VS LC Traditional Connector


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
