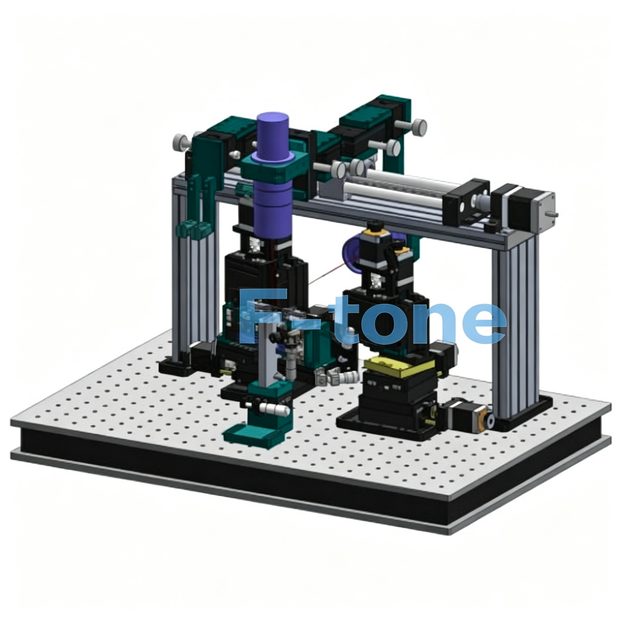

Y-Waveguide to Fiber Array Optical Alignment System Dual 6 Axis SemiAutomated Workflow Software Control

Y-Waveguide to Fiber Array Optical Alignment System Dual 6 Axis SemiAutomated Workflow Software Control

Просмотреть всю информацию

Part Number: FOCML-90/120S-Y

Y-waveguide Align System for Y-waveguide Modulator manufacuturing, Customized Workflow Software, Auto Epoxy Dispenser and UV Curing, Double 6 axis SemiAuto alignment Y waveguide Optical alignment and packaging system

High Precision and Maneuverable Y waveguide Alignment Machine for Y waveguide Modelator manufacturing, 2 side 6 axis SemiAuto alignment with 100nm minimum accurate

The Sunma instrument company develops a new generation of manual and auto aligner for Y waveguide manufacturing. This product line features cost effective, high precision motion control capability with a compact mechanical design.


High quality components are used to assemble the system to guarantee high precision and repetitive motion applications.
The precision of linear motion motion (Translational) X, Y, Z and rotationl motion (Rotational)Pitch, Yaw, the Roll is 0.1 micron and 0.003 degree respectively.


All the machinical handlers are our own proprietary designs and made of high quality stainless steal to achieve motion and temperature difference stability.
Handlers for fiber coupled array are equiped with touch sensors for accurate spacing control.
Versatile motion control software is both user friendly and powerful.
Its modular design makes system upgrade and modification very simple. Moreover, alignment procedure customerization is made possible by the "workflow editor". Hence, users only just need to add and subtract the preinstalled functions and input the corresponding parameters to establish a particular alignment process.
2-day Free training, Installation &Calibration all for Free
Advantages:Trademarked Technology-5 Rs
Real Dual 6 degrees of freedom
Real Parallelism
Real Seamless Coupling
Real Gap Control
Real Performance

Features:

Low-cost, compact and fast SemiAuto-Alignment machine for Y waveguide pigtailing
Fast 1st light searching by near IR Camera(visible band to 1310nm) & rapid and automatic alignment
Fast automatic pitch-yaw parallelism adjustment
Accurate gap distance control by means of touch sensor
Precision motion platform of Newport delivers high accuracy and repeatability
Powerful software for easy operation
Total alignment time:100～125s
In addition to automatic, as well as semi-automatic and manual options

Customized Workflow Software Control with different algorithm for auto fiber to chip/PIC coupling alignment

Applications:

• Fiber optical gyroscope (FOG)
• Fiber Optic Current Sensor (FOCS)
• Hydrophones and other optical fiber sensing fields

System confguration:


Specifications:

Translation（X-Y-Z axis）
Component Sunma VP-25XA or VP-25XL
Travel Range（mm） XYZ: 25mm
Resolution（μm） 0.1 (VP-25XA), 0.05 (VP-25XL)
Bi-directional Repeatability（μm） 0.15
On-axis Accuracy（μm） 1
Maximum（mm/s） 25
Rotation（PitchθX-YawθY-RollθZ axis）
Component Newport CMA-PP or TRA-PPD
Travel Range（mm） θX:6mm, θY:6mm, θZ:12mm (±3°)
Resolution（μm） 0.3 (CMA-PP), 0.1 (TRA-PPDL)
Bi-directional Repeatability（μm） 2
Maximum（mm/s） 0.4
Tooling
（Patent Pending）Touch sensor embedded Universal Fiber Array Holder × 2
（Patent Pending）Touch sensor accuracy(μm)< 2
Universal 1×N Splitter Holder（1×2 to 1×64）× 1
Vacuum AWG Holder × 1
Vision
Camera Type CCD×2, IR Cam×1 for 1st light searching
Lighting Software Controlled LED Bar Light
Machine vision Image ssen through PC Vision Card
Image Resolution <3μm/Pixel（depends on Mag. X of lens）
Motion 100mm（according to request）
6 or 13mmmanual XY stage



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
