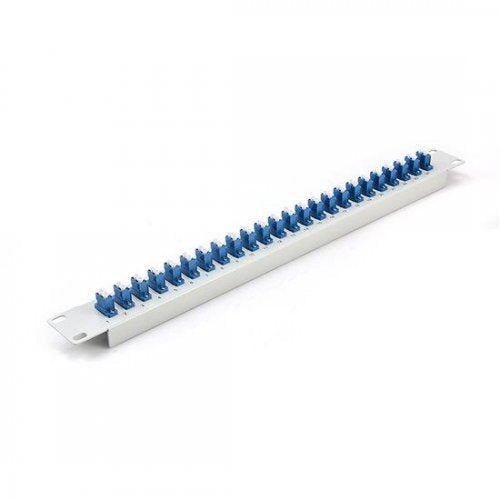

48 Fibers, 24 Ports LC/APC Duplex OS2 Single Mode Adapters, 1U High 19' Fiber Patch Panel

48 Fibers, 24 Ports LC/APC Duplex OS2 Single Mode Adapters, 1U High 19' Fiber Patch Panel

Просмотреть всю информацию

Part Number: FPP1U24LCADXSMF

24-Position LC Fiber Adapter Panel, 19" 1U Network Rack Installation

No.of Adapter/Port 24 Fiber Count 48
Adapter Type LC/APC Duplex(Green) Fiber Mode OM4
Plate C.R.S POWDER COATED Dimensions(Inch&mm) 1.75"x19"/482.6x44.45(WxL)
RoHS Compliancy Status Compliant Application Mount In A 19" Network Rack

Features and Benefits

Provides a complete system solution for connectivityMeet or exceed TIA/EIA-568-C.3 requirementsAllows for the industry's highest patch field density and fiber countsAssures flexibility and ease of network deployment and moves, adds, and changesMount to standard EIA 19" rack rails, robust but light weight construction

Details Drawing

F-tone.COM LC Series 1U Fiber Patch Panels

F-tone FAPS ADAPTER COLOR FIBER TYPE DUPLEX & SIMPLEX
FPP1U12LCDOS2 Blue OS2 DUPLEX
FPP1U12LCDOM1 Electric Ivory OM1 DUPLEX
FPP1U12LCDOM2 Electric Ivory OM2 DUPLEX
FPP1U12LCDOM3 Aqua OM3 DUPLEX
FPP1U12LCDOM4 Aqua OM4 DUPLEX
FPP1U12LCADOS2 Green OS2 DUPLEX
FPP1U24LCDOS2 Blue OS2 DUPLEX
FPP1U24LCDOM1 Electric Ivory OM1 DUPLEX
FPP1U24LCDOM2 Electric Ivory OM2 DUPLEX
FPP1U24LCDOM3 Aqua OM3 DUPLEX
FPP1U24LCDOM4 Aqua OM4 DUPLEX
FPP1U24LCADOS2 Green OS2 DUPLEX

Packaging Details


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
