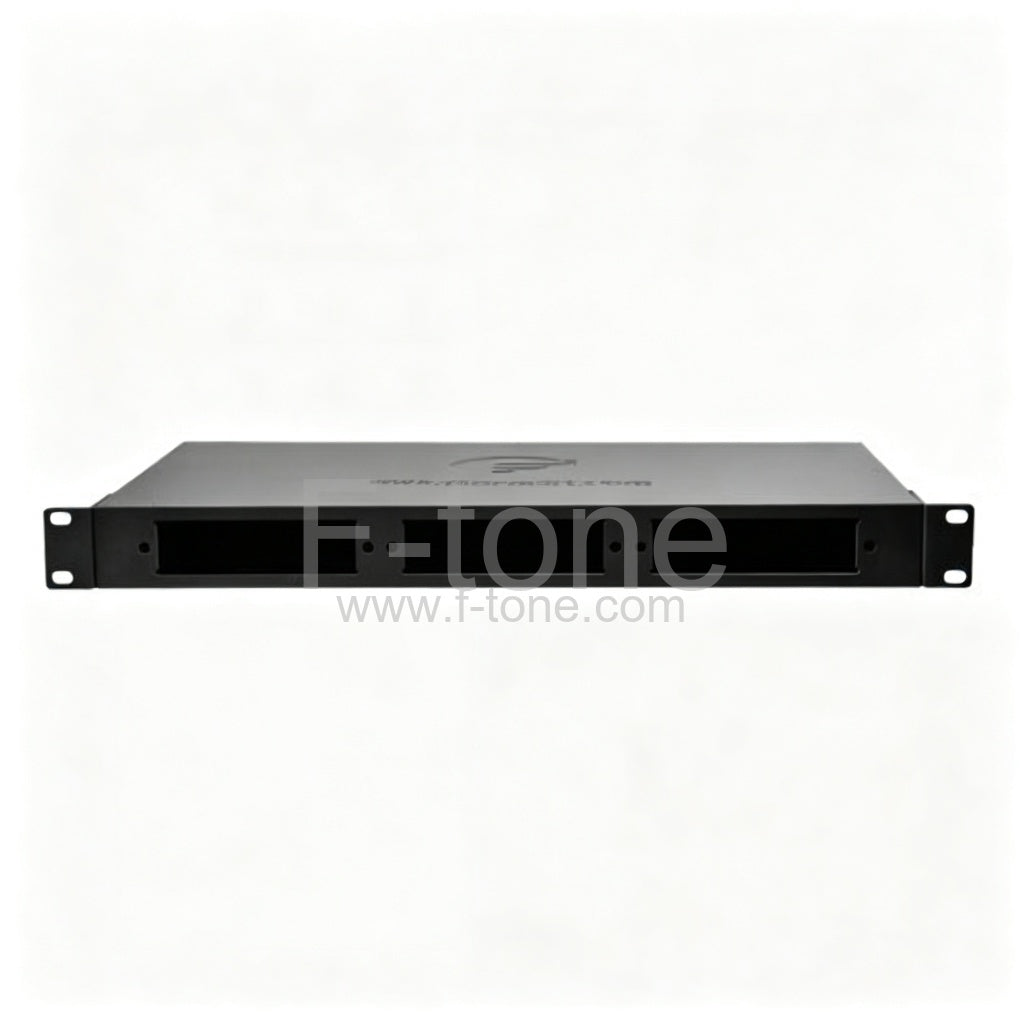

Customized MTP/MPO LGX Holder 1U Rack Chassis Only

Customized MTP/MPO LGX Holder 1U Rack Chassis Only

Просмотреть всю информацию

Part Number: FT-1RU-MX

19 inch, MTP/MPO Panel, 1U Rack Chassis, LGX - MTP/MPO Cassette Holder, Without LGX Box

MTP/MPO 1U 19”Rack Mount is an integrated unit for fiber management a protection function, to hold 3 pieces of F-tone’s MTP/MPO LGX cassettes.

Notes: The type of MTP which have became the tendency in Europe&American fiber communications areas at present.

Mechanical Drawing



F-tone’s MTP/MPO Rack Mount with high technology requirements as follows:
a. Sandblasting surface treatment, and black anodized.
b. Remove all burrs and oil pollution.
c. All sharp edge chamfer (C 0.5)
d. The surface must be not scratch, grooves, and loss color, the hole is also not deformation, gaps and sawtooth.
e. Once complete installation, there is no buckling and deformation phenomenon.

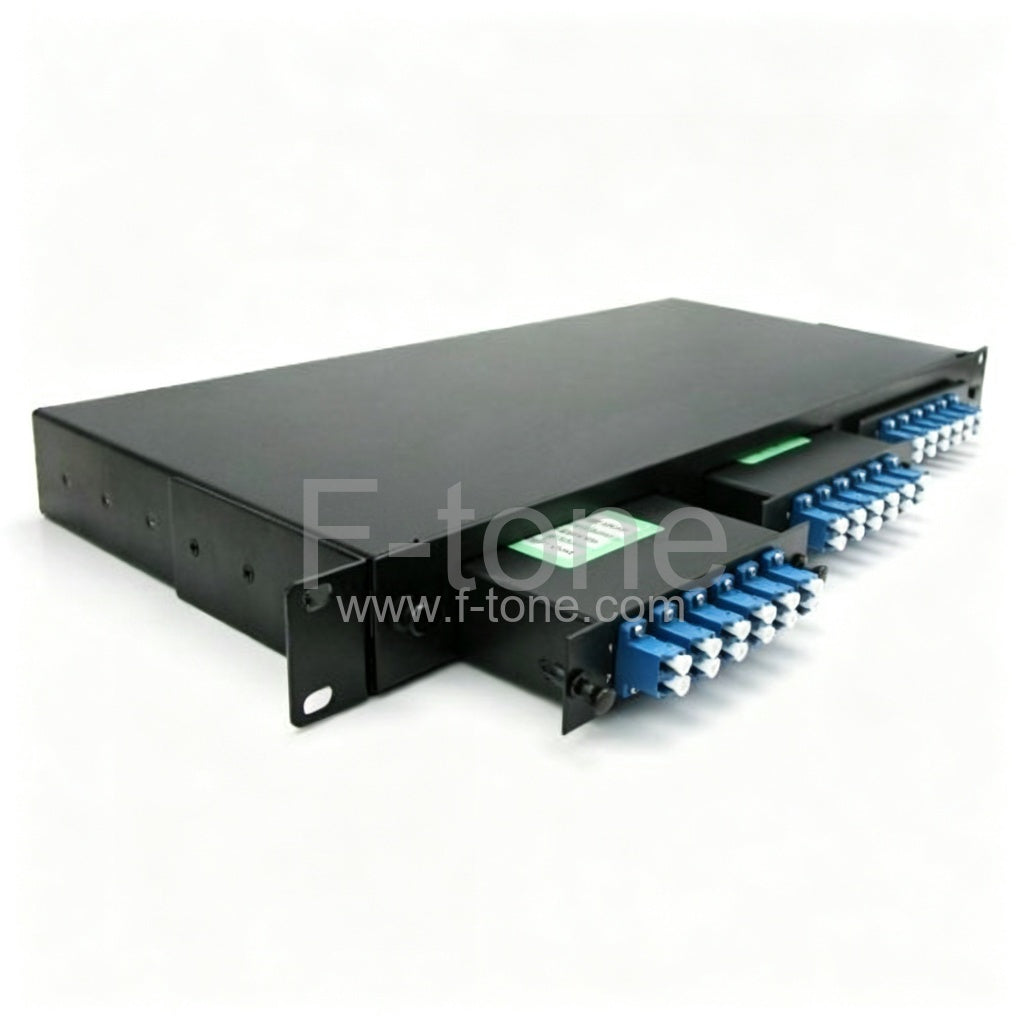

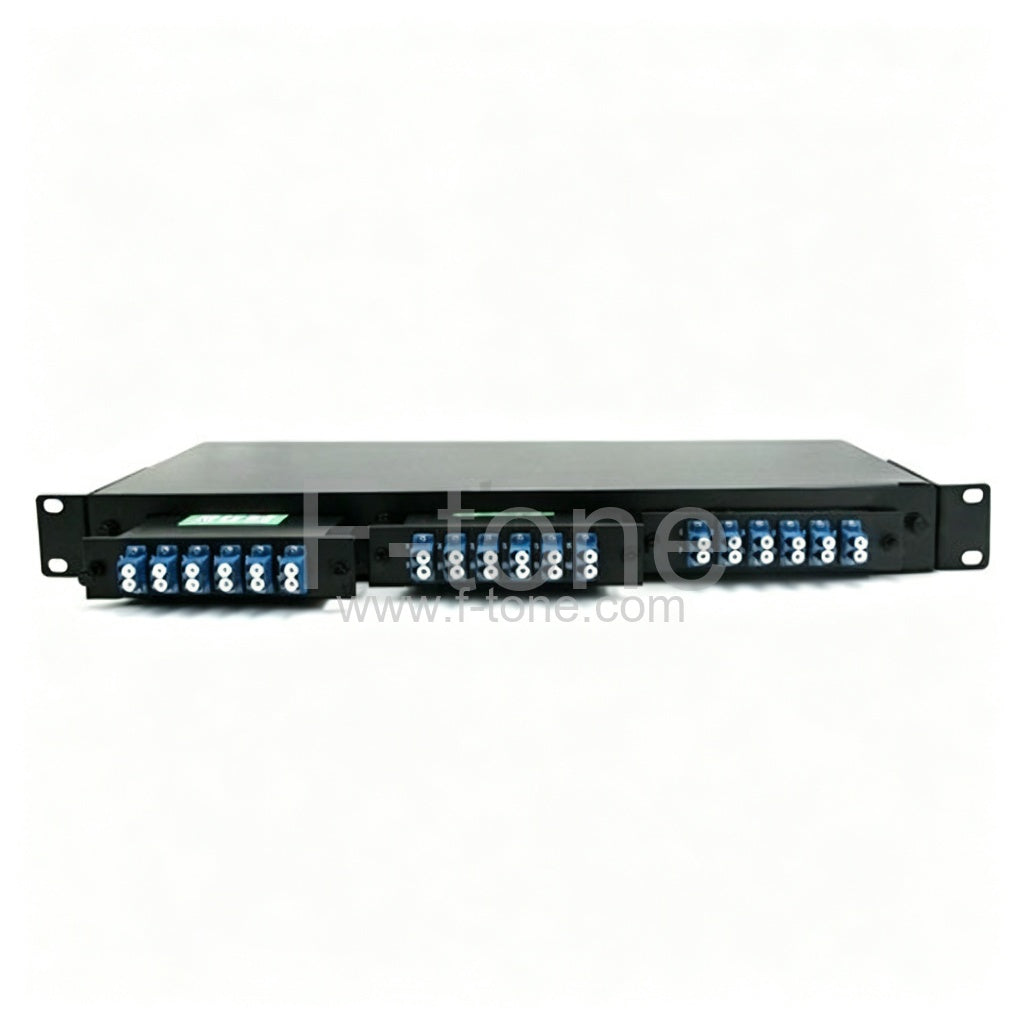

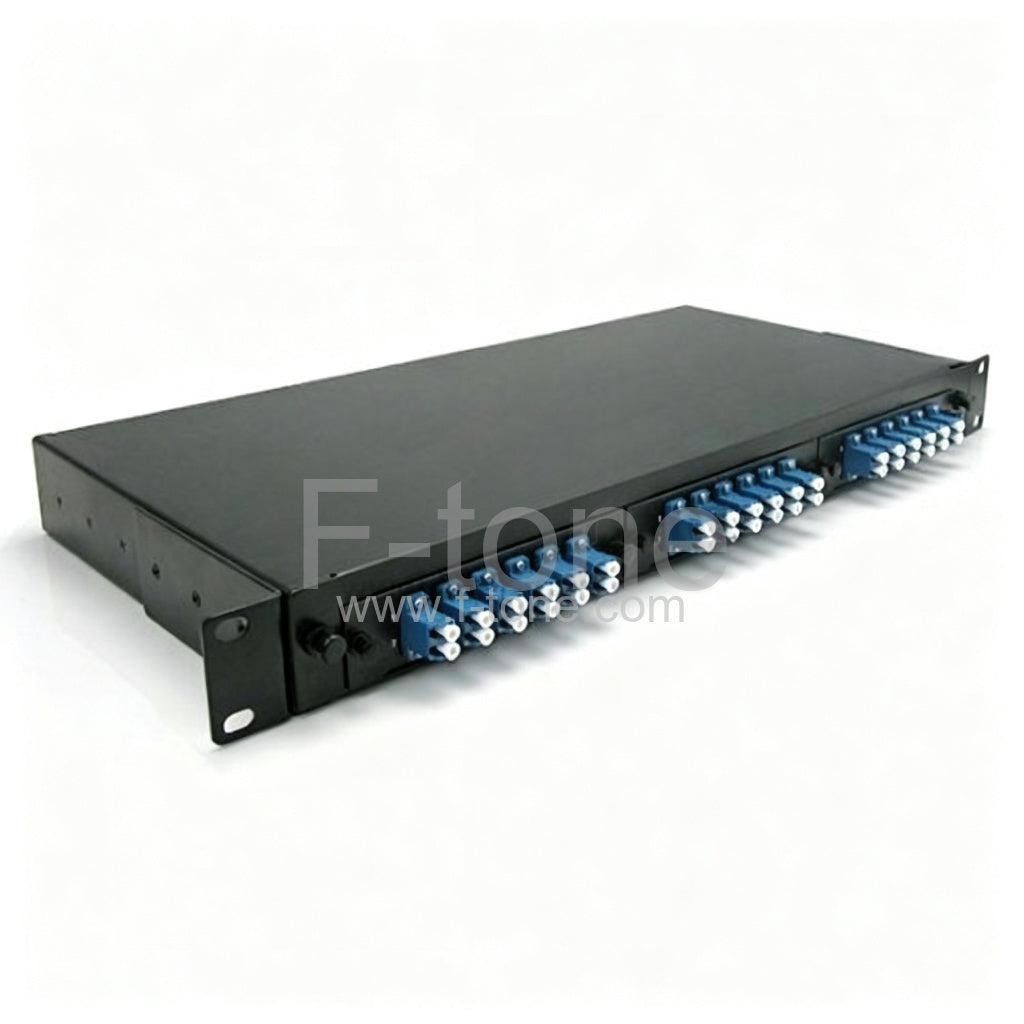

The Assembly Diagram of MTP/MPO LGX Cassette and Rack Mount


In the picture, 12 fibers LC MTP/MPO LGX Cassette can be replaced with 24 fibers LC MTP/MPO LGX Cassette, or 12 fibers SC/ST/FC MTP/MPO LGX Cassette.

F-tone provides the custom MTP/MPO Rack Mount, for example:

  • 1 U Rack Mount to hold 3 pieces of MTP/MPO LGX Cassette.
  • 4U Rack Mount to hold 12 pieces of MTP/MPO LGX Cassette.
  • Other size requirements, please kindly contact us at [email protected].
    • Notes: ( 1 LGX Cassette=156x102x29mm Standard MTP/MPO Cassette )


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
