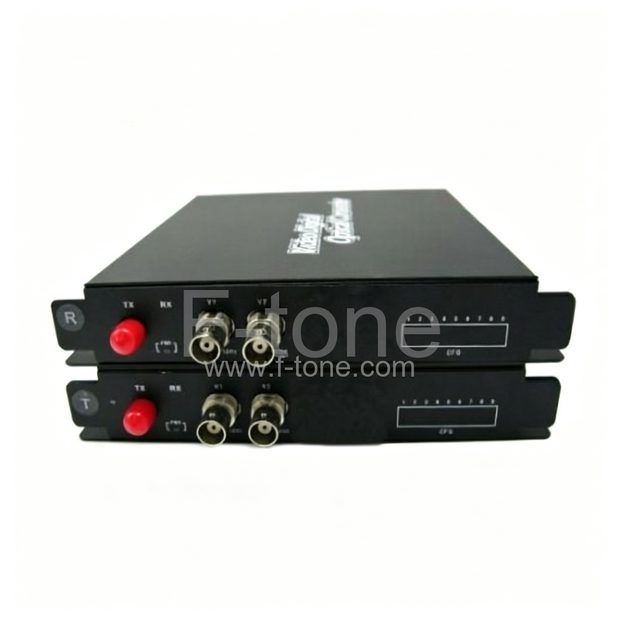

2 Channel HD-AHD over Optical Fiber Transmitter and Receiver Set

2 Channel HD-AHD over Optical Fiber Transmitter and Receiver Set

Просмотреть всю информацию

Part Number: FT-2HD-AHD-T/R

2 Channel HD-AHD over Optical Fiber Transmitter and Receiver Set

HD-AHD TO Fiber Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

And AHD Fiber Optic Transmitter should be worked with AHD Fiber Optic Receiver. The price on the website is for Pair.

Features

  • 2 channel HD-AHD video signal of computer over one fiber optic
  • Support HDTV highest resolution 1080P
  • 10-bit digital video encoding and uncompressed transmission technology
  • Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc…
  • Strictly selection material and quality control in order to ensure high quality and high reliability
  • System status could be monitored by the power and other parameters LED indicator
  • Compact size
  • Excellent cost performance
  • SMT Surface Mount Technology
  • Stand-alone or rack-mount
  • Lower power consumption and free installation, debugging

Applications

  • Remote OB Van/Truck Video Feeds
  • Broadcast Studio Camera Feeds
  • Long-haul Signal Transport
  • TV station/video conference
  • Lecture Hall Projector Connectivity
  • Medical/Surgical Room Broadcast
  • Building to video conference calling
  • Small corporate campus video links

System connection diagram

Opitcal
Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity (-3 dB) -25dBm
Optical connector FC、ST、SC (optional)
Distance 0~550M (MM) /0~20KM (SM)
Video
Number of Channels 1
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time 4<0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC
Other
Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
UnitWeight 1ch/2ch:0.75kg,
4ch/8ch:1.5KG(pair)
Dimension 1ch/2ch:104mm×104mm×28mm
4ch/8ch:183mm×154mm×30mm
Installation Wall mount
MTBF ≥ 100000Hours





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
