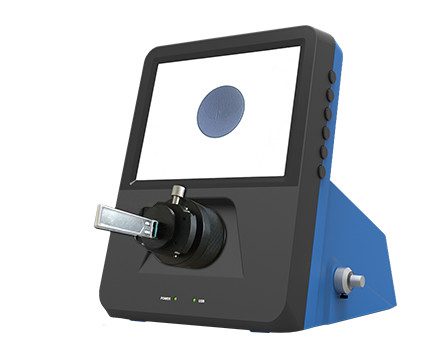

FT-300 Optical Fault Tester

FT-300 Optical Fault Tester

Просмотреть всю информацию

Part Number: FT-300

Optical Fault Tester FT-300

Description

The FT-300 fiber ranger is a high performance fiber fault locator which can be used to detect the fiber fault location and display the exact distance on the coloured LCD. The FT-300 is designed to be palm sized, lightweight, easy carry and simple operated which can be an ideal instrument for fiber installation, detection and maintenance.

Features

• 3-inch color LCD display large screen
• Chinese and English menu, easy to operate
• One-button testing, engineers can operate without any training
• Break point testing fast and accurate, range 0-80KM
• Four Ni-MH rechargeable batteries, continuous testing more than 5000 times
• USB communication interface
• Small, light weight, portable, easy to carry and maintenance.

Application

▪It is used for testing fiber breakpoint and fault, fast measurement: fiber break point with 100KM.
▪It be widely used in the MAN, WAN , CATV and other communication systems installation and maintenance
▪ With palm design, hi-technology chip, reliable performance, accurately detects fiber fault location.

Specifications

Item /Model No. FT-300
Fiber Type 9/125 μm Single Mode
Wavelength 1550 ± 20nm
Emitter Type LD
Connector Type FC/PC (interchangeable SC,ST)
Pulse Width Automatic mode10ns/20ns/40ns/80ns/160ns/320ns/640ns/1280ns/2560ns/5120ns/10240ns/20480ns
Max output power 90 mW
Max. Measurement Range 100 Km(Reflection event, >1dB)
Distance Accuracy Reflection event ± (2 + 0.1% x Distance)
Non-Reflection event ± (100 + 0.5% x Distance)
Data Storage 260 measurements
Dead Zone 10 m (Reflection event )
Power Supply AC/DC adaptor &. Rechargeable Batteries* 4
Battery Life 5,000 times measurement
Operating Temp. -10 ~ +50ºC
Storage Temp. -20 ~ +60ºC
Humidity 0 ~ 85% (non-condensing)
Communication Port Mini USB
Weight 400 g
Dimension 190*105*55 mm
Max Event No. 13 reflective event +13 Non -reflective event

iberstore is specializing in supplying fiber optic components and network equipment, all the products are qualified because they have been 100% tested before delivery. A special discount will be provided if you need this brand new optical fault tester FT-300 at a large quantity.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
