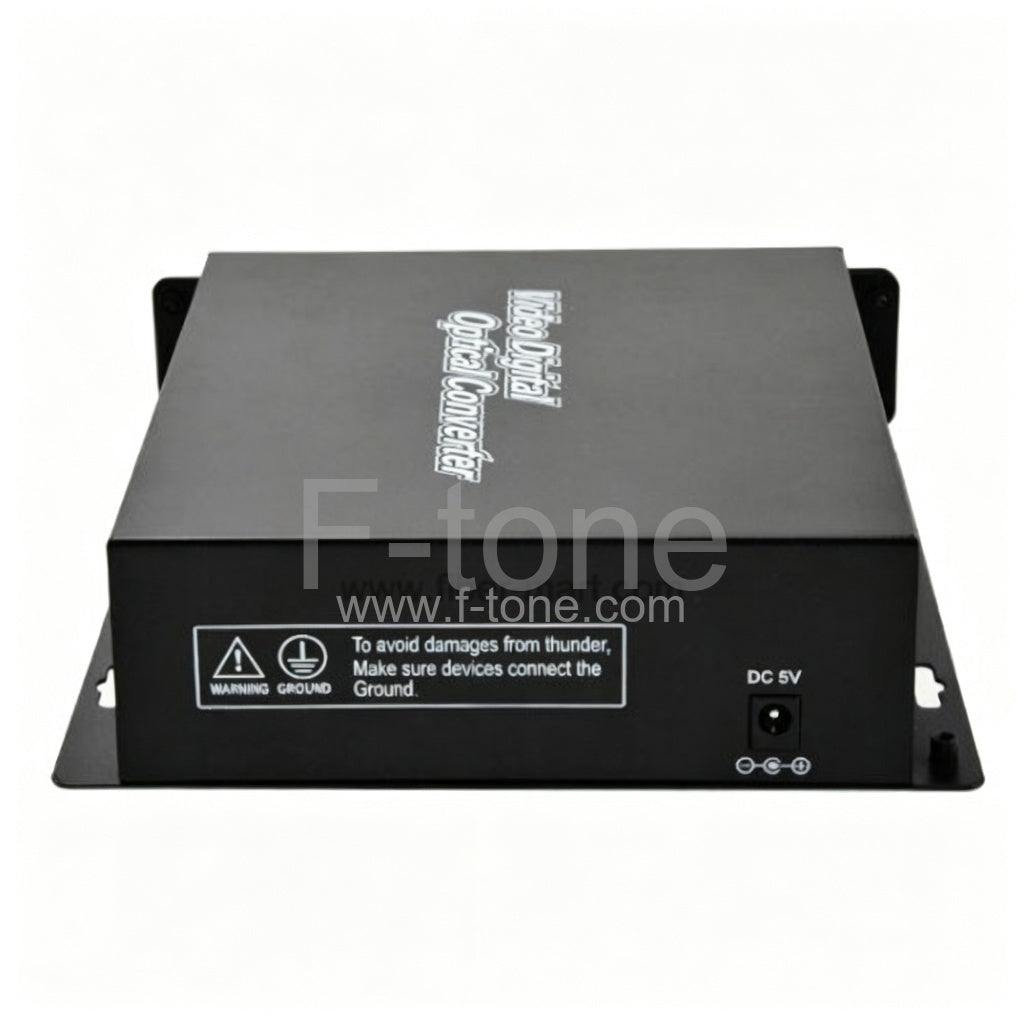

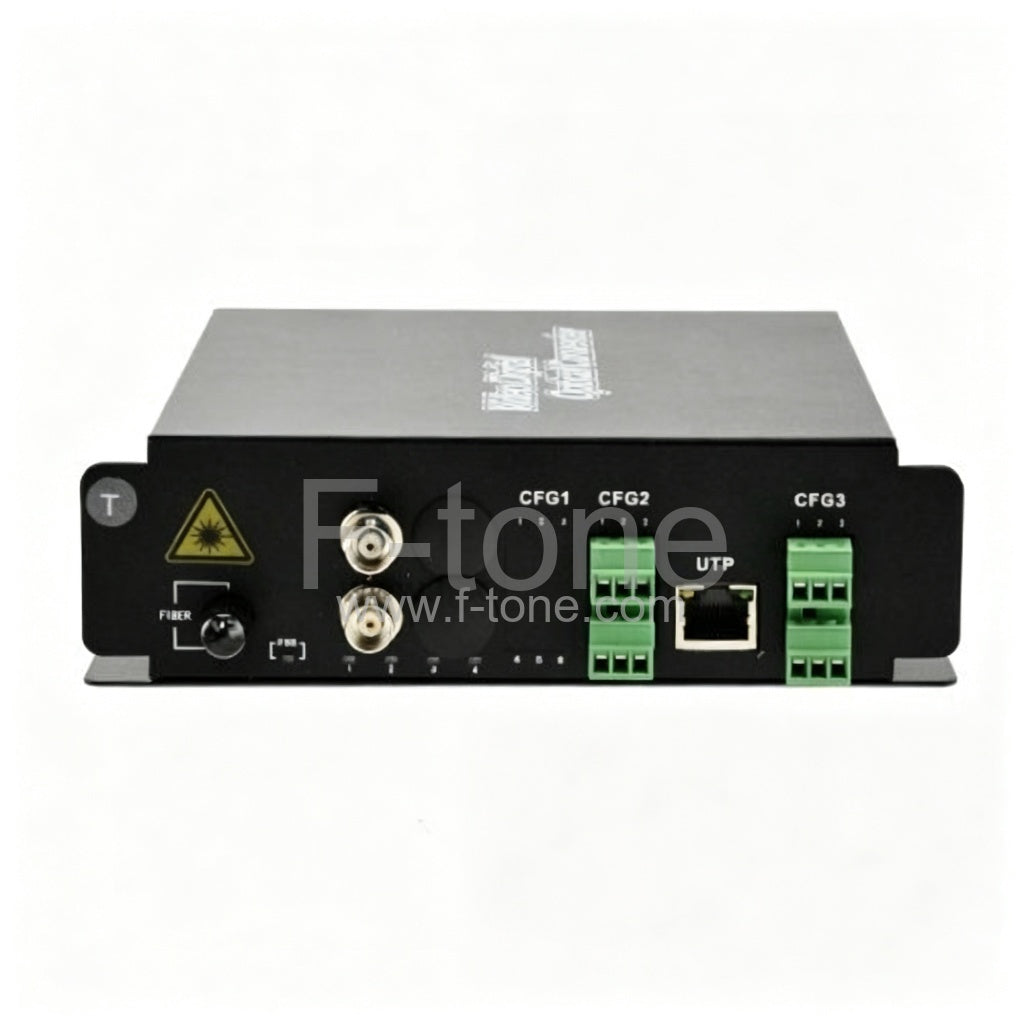

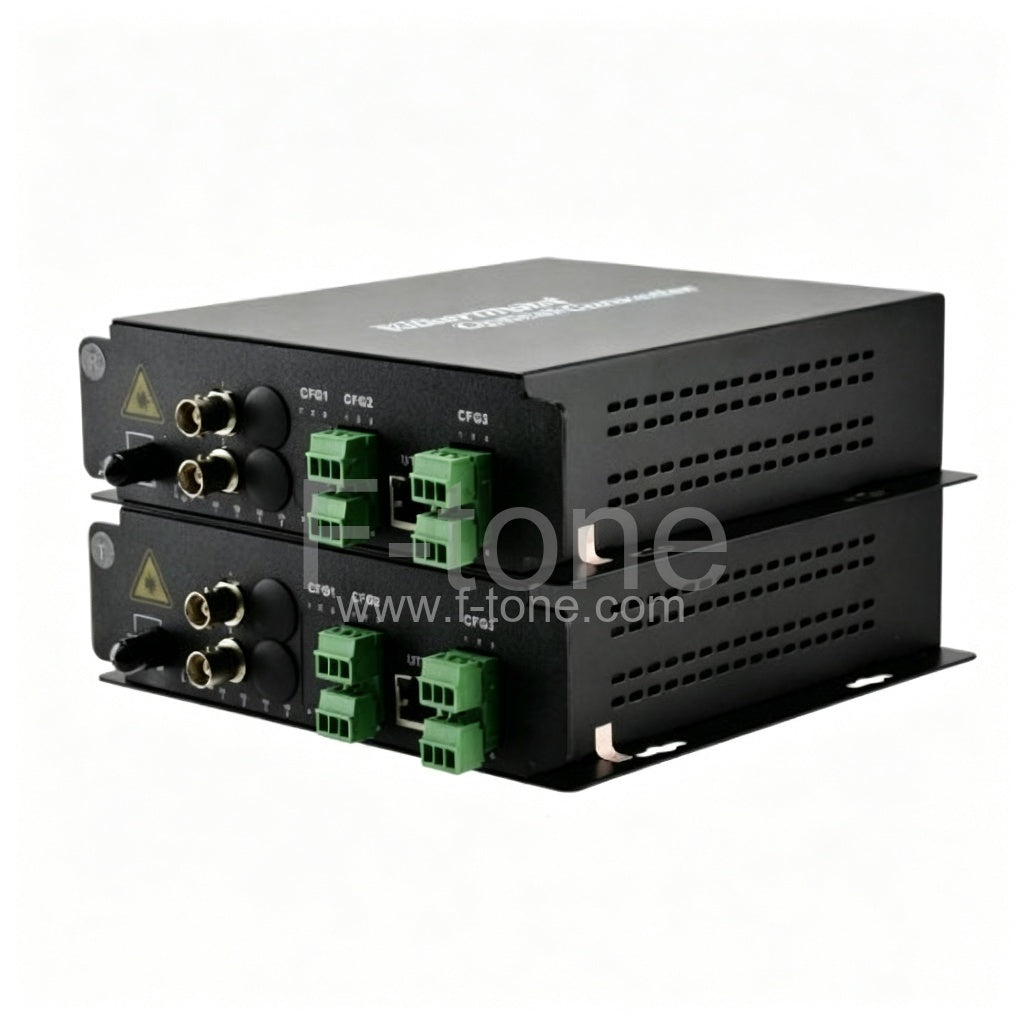

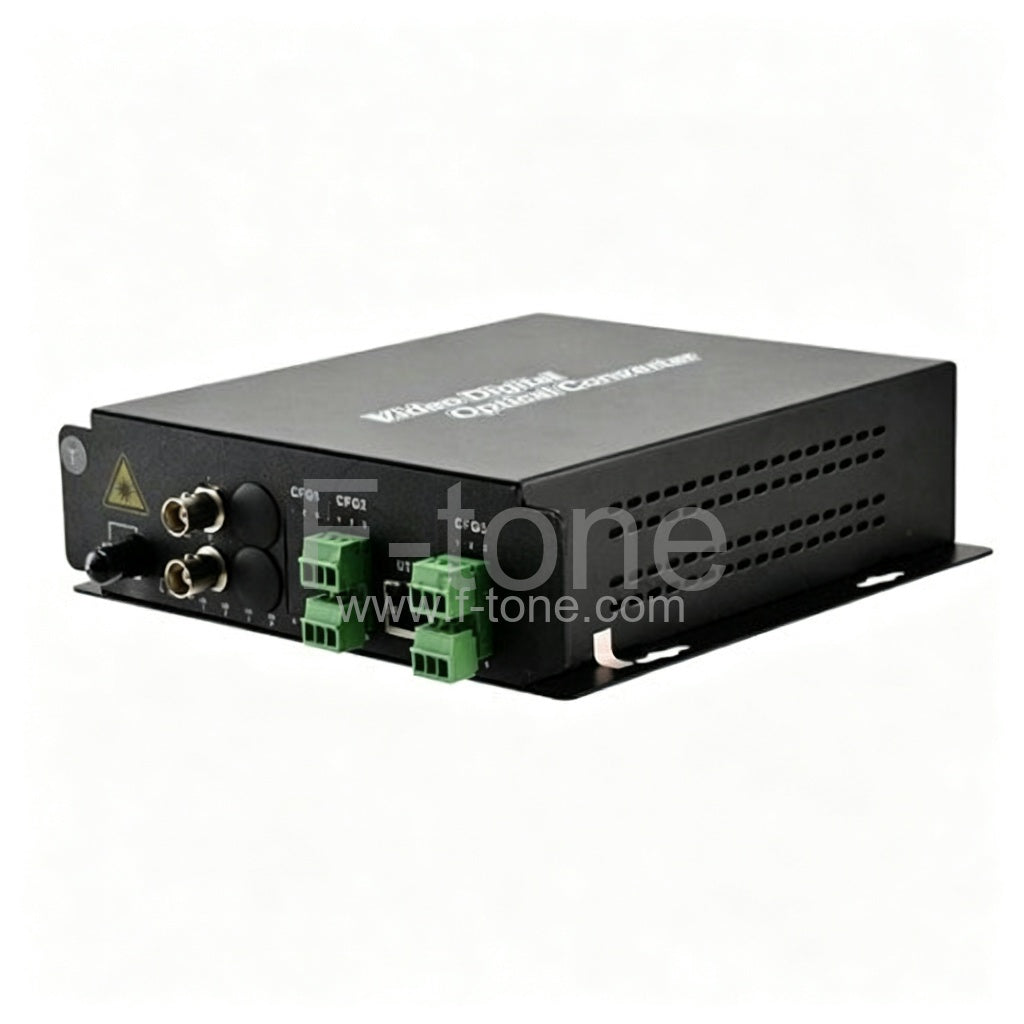

4 Channel Video & 2 Channel Bi-Directional Data to Fiber SM 20km Optical Video Multiplexer

4 Channel Video & 2 Channel Bi-Directional Data to Fiber SM 20km Optical Video Multiplexer

Просмотреть всю информацию

Part Number: FT-4V2BD-SM-20

4 Channel Video & 2 Channel Bi-Directional Data to Fiber Optical Video Multiplexer SM 20KM

Description

Our video, data and audio transmitter and receiver support simultaneous transmission of several channels of 8-bit digitally encoded video. The modules are compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-485, RS422 and RS232 data protocols. Plug and Play design ensures convenience of installation and operation.

Features

  • 8-Bit Uncompressed Video Transmission
  • Compatible with NTSC, PAL, or SECAM CCTV
  • Supports RS-232, RS-422, and RS-485 Data Protocols
  • WDM for Highest Quality Video Transmission
  • No EMI, RFI, Cross Talk, and Ground Loop
  • No Electrical or Optical Adjustments Required
  • LED Indicators for Instant System Monitoring
  • Standalone or Rackmount
  • Transmit up to 30 km without Optical Attenuation
  • Simultaneous Transmission of Video and Data

Applications

  • Intelligent Transportation System
  • Connection of Sub-network for Surveillance Center
  • Public Security Surveillance
  • High Way & Toll Station Surveillance
  • Industrial Closed Circuit Television Surveillance

Technical Specifications

VIDEO CONNECTORS
Number of Channels 1, 2, 4, 8, 16, 24, 32, 48, 64 optional Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Optical FC Standard; ST/SC optional
Input/output Compatibility PAL,NTSC,SECAM Audio Terminal Block
Input/output voltage 1.0 Volt p-p Data Terminal Block
Bandwidth 6.5MHZ Standalone power Screw terminal block
Bit Resolution 8-Bit Digital Transmission Rack Power AC line card
Differential Gain < 1.5% ELECTRICAL & MECHANICAL
Differential Phase < 1.5° Input Power Requirements DC 5V@2A

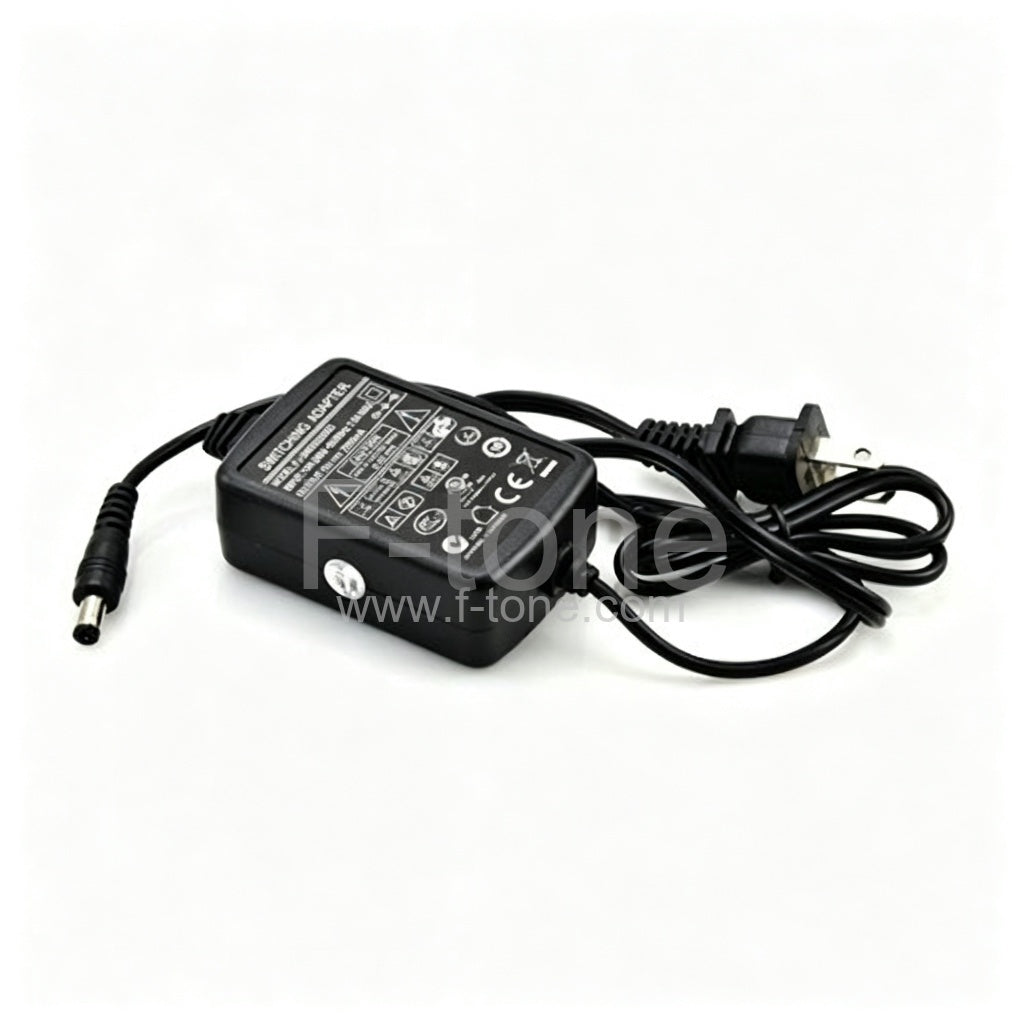

Tilt < 5% Power Adapter AC 100V~240V
Signal-to-Noise Ratio(SNR) > 67 dB Power Consumption < 3W
AUDIO Bit Error Rate 1.00E-08
Number of Channels 1, 2, 4, 8, 16 optional DATA
Audio in/output impedance 600Ω Unbalanced Number of Channels 1, 2, 4, 8, 16 optional
Audio in/output Level 6 dBm Interface Port RJ45
Signal-to-Noise Ratio (SNR) >80 dB Data Formats RS485(2-wire or 4-wire), RS232, RS422, Contact Closure
Bit Resolution 24-Bit Data Rate DC to 115.2Kbps
Bandwidth 20Hz~20KHz Bit Error Rate 1.00E-08
ENVIRONMENTAL ETHERNET/IP
Operating Temperature -45 °C~ +75 °C Standard Ethernet IEEE 802.3 (Auto-Negotiation)
Relative Humidity 0%~95% (non-condensing) Data Rate 10/100 Mbps
Storage Temperature -45 °C~ +85 °C Connector RJ-45, Auto MDI/MDI-X
MTBF >100,000 hours





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
