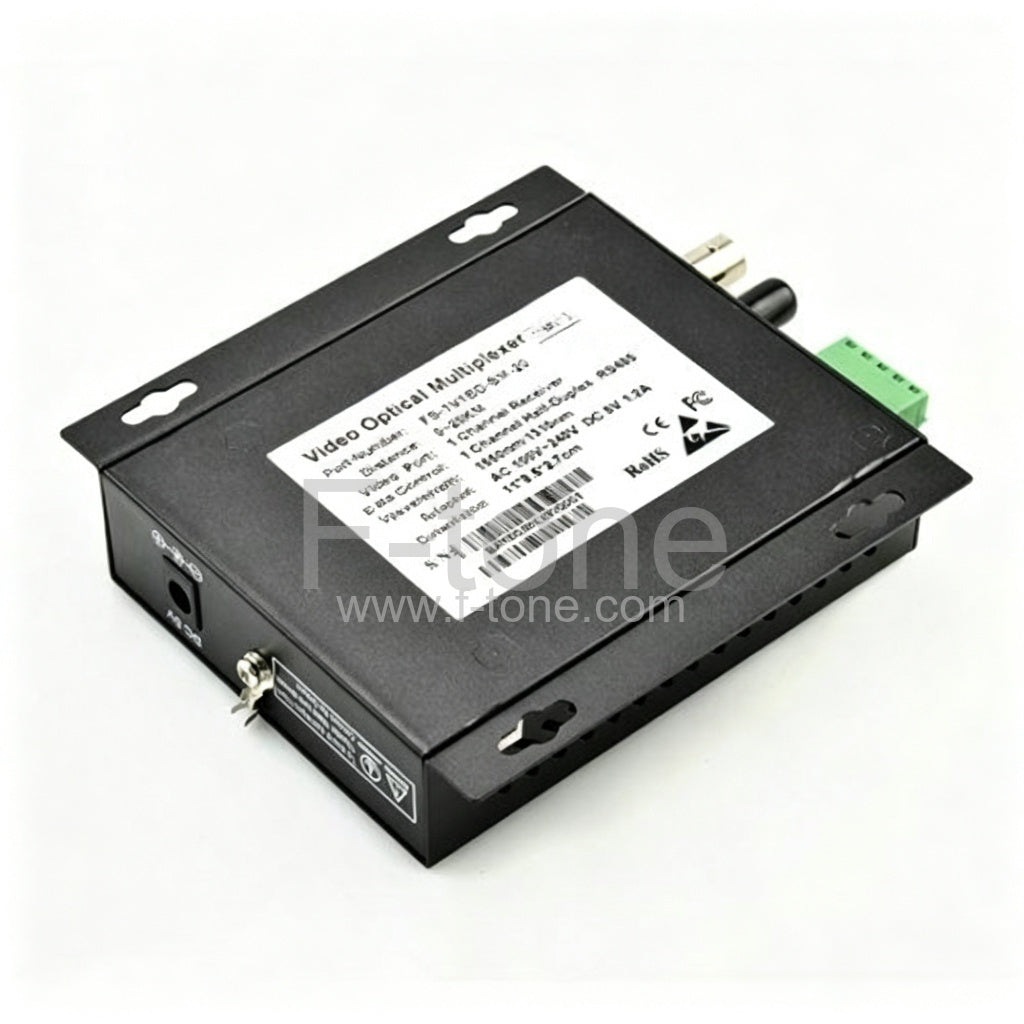

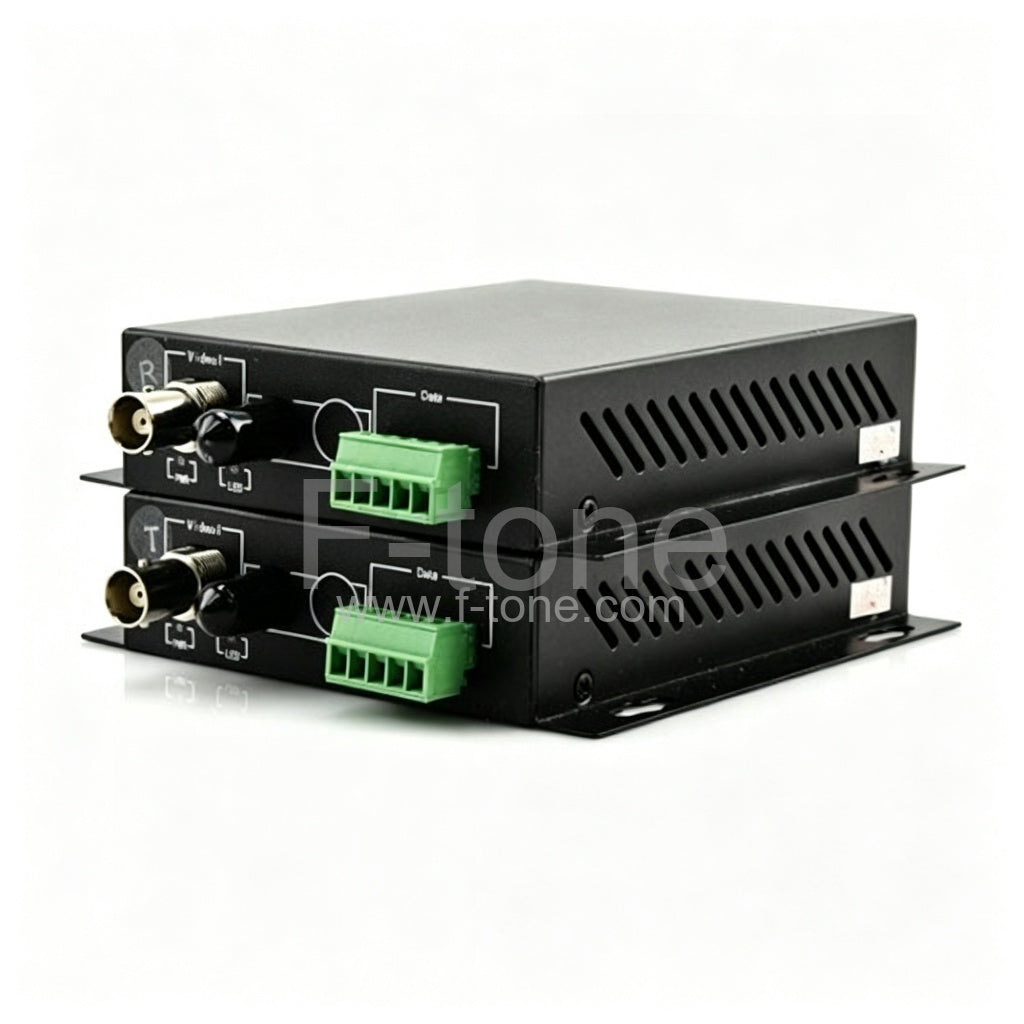

Part Number: FT-8V1D8A-SM-20

8 Channel Video & 1 Return Data & 8 Forward Audio to Fiber Optical Video Multiplexer Transmitter and Receiver SM FC 20km

Descriptions

  • Model: FT-8V1D8A-SM-FC-20
  • Transmitter + Receiver
  • Fiber Mode: Single-Mode
  • Wavelengths: 1310nm/1550nm
  • Optical Power Budget: 12dB
  • Maximum Transmission Distance: 20km
  • Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
  • Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)

Key Features

  • Support Point-to-Point or Daisy-Chain connection
  • Uncompressed Digital Composite Video over one fiber
  • Compatible with all PAL, NTSC,SECAM Video Systems
  • Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
  • Single-Mode Fiber Support for Distances up to 100 km
  • LED Status Provide Rapid Indication of Operating Parameters
  • No EMI or RFI and no ground loops
  • Support Coarse Wavelength Division Multiplexing (CWDM)
  • Stand alone
  • Produce according to customer's specifications,providing OEM

Specifications

Video Connectors
Number of Channels 8 channel Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Data 3 Pin Terminal Block
Input/output Compatibility PAL,NTSC,SECAM Audio Terminal Block
Input/output voltage 1.0 Volt p-p Optical FC (Standard)

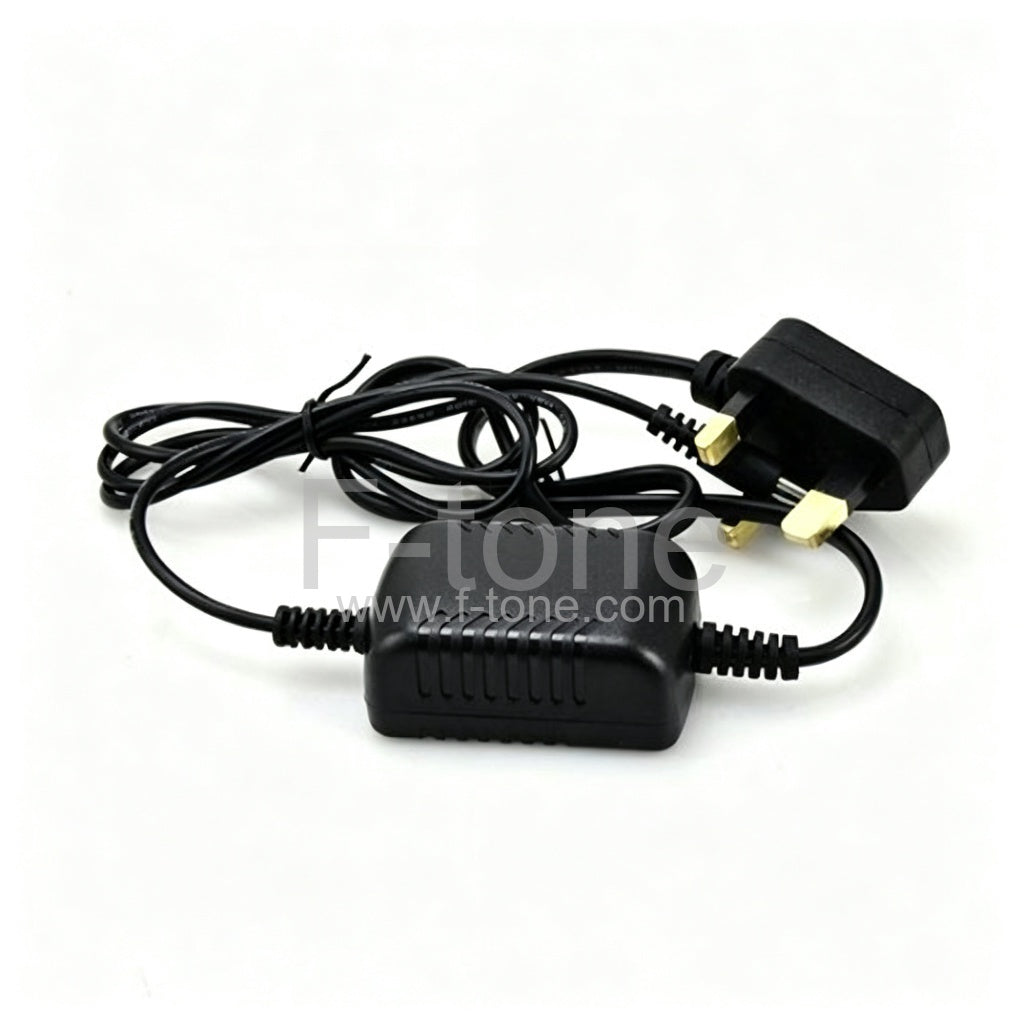

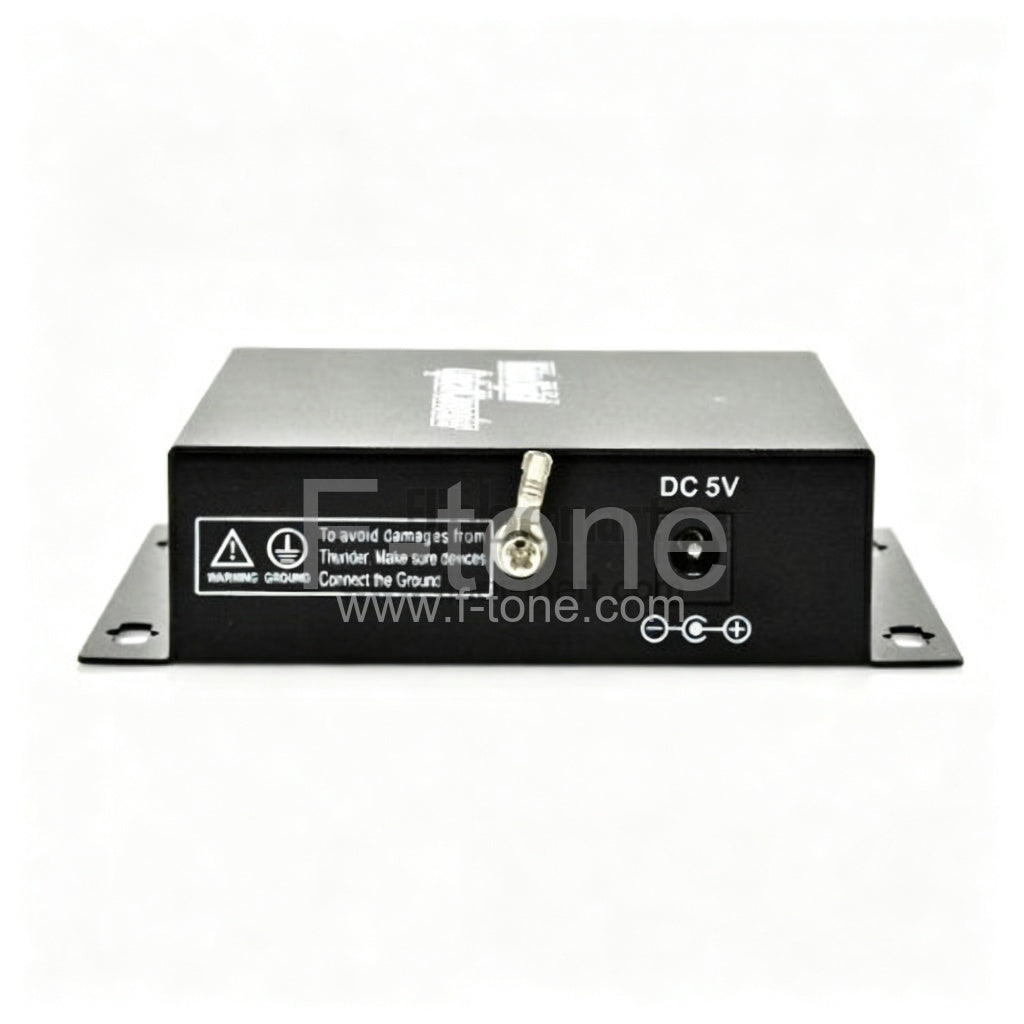

Bandwidth 6.5MHZ Standalone power Screw terminal block
Bit Resolution 8-Bit Digital Transmission Rack Power AC line card
Differential Gain < 1.5% Electrical & Mechanical
Differential Phase < 1.5° Input Power Requirements DC 5V@2A
Tilt < 5% Power Adapter AC 100V~240V
Signal-to-Noise Ratio(SNR) > 67 dB Power Consumption < 3W
Shipping weight 3kg(include TX & RX)
Data
Data Formats RS485(2-wire or 4-wire), RS232/422,Contact Closure
Data Rate DC to 115.2Kbps
Bit Error Rate 10E-9
Audio
Number of Channels 8 channel forward audio
Audio in/output impedance 600Ω Balanced/Unbalanced
Audio in/output Level 6 dBm
Signal-to-Noise Ratio (SNR) >80 dB
Bit Resolution 24-Bit
Bandwidth 10Hz~20KHz
Environmental
Operating Temperature -45°C~+75 °C Storage Temperature -45°C~+85 °C
Relative Humidity 0%~95% (non-condensing) MTBF >100,000 hours




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
