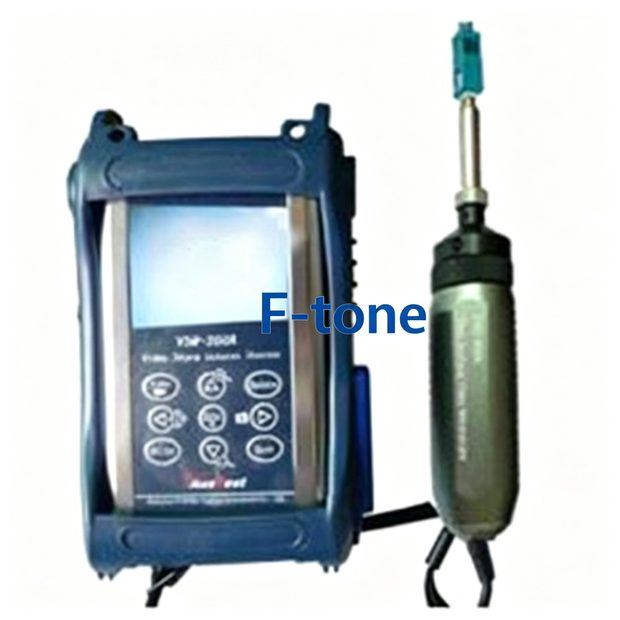

Fiber Optic Inspection FT-900A-V

Fiber Optic Inspection FT-900A-V

Просмотреть всю информацию

Part Number: FT-900A-V

FT-900A-V Fiber Optic Inspection

Key Features

  • 2 inch VSM-360A monitor with multiple functions support
  • USB transmission; Four-level zoom and Pan function
  • Single-way focus control for quick detection, get image within 3-5 seconds
  • 35 types of adapters tips available for different connectors and angle-mounted connectors with limited access space
  • Adapter tips easily interchangeable, no tools required
  • 95% Image centralization in screen
  • Precise resolution (<1 μm), no shadow or vignetting around screen
  • High definition image, no interface, no flash
  • Store and document image through multiple functions as AV video/Single-frame Image Capture/Zoom and Pan function/software analyze etc
  • Reliable output signal, no default under repeated operation
  • Water-proof; Quake-proof; Pressure-proof; Comfort and Simple for operation

Applications

Specification

  • End face inspection for patch cord /bulkhead-mounted equipment/transceiver etc
  • End face inspection of assorted connectors PC/APC,MPO/MTRJ etc
  • End face inspection of connectors at different angle in patch panels
Magnification/Resolution 400*/0.75μm(Based on benchmark -8 Inch monitor)
Field of View 0.35mm×0.25mm
Tips Connection Cone contact
Focus way /Range Two-way /<3mm
Output Type PAL or NTSC or USB
Light Source/Life time Coaxial blue LED with 100,000 hrs above
Size/Weight （ mm/kg ） 180*41*36 /0.164
Image Sensor 1/3 Inch 5V Voltage
Temperature -10~60 ℃
Humidity 90% Relative humidity Tolerance, no condenses


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
