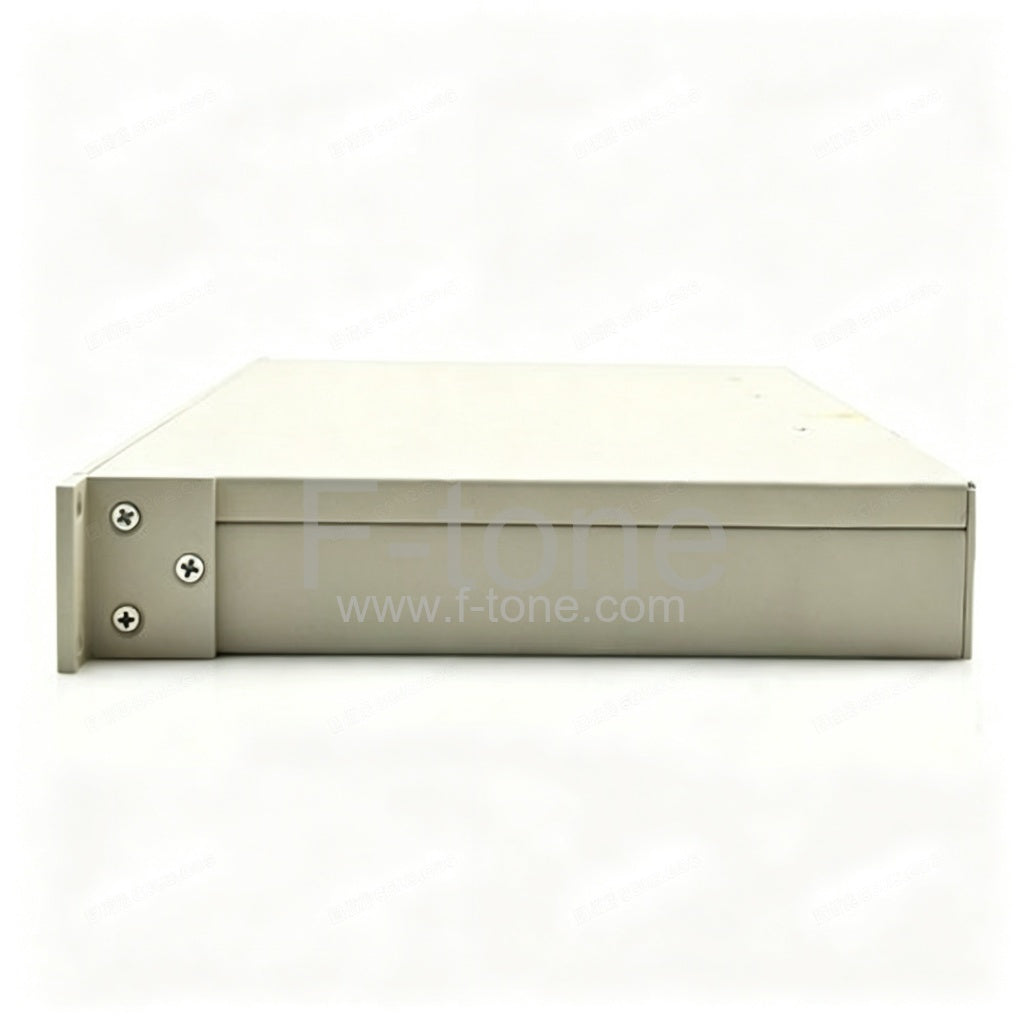

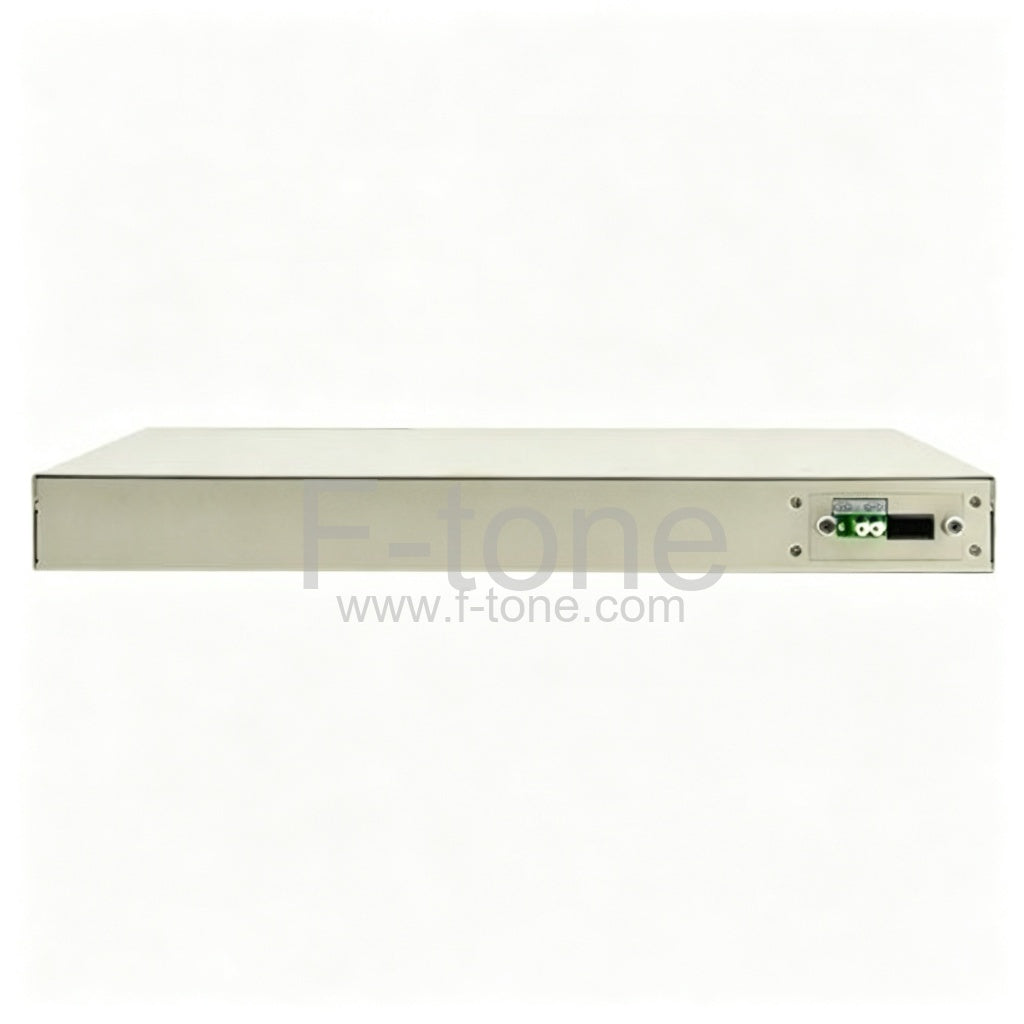

20KM 1RU 19' Passive Dispersion Compensation Module

Part Number: FT-DCM-20

20 KM Passive Dispersion Compensation Module in 1RU 19' Chassis

F-tone Dispersion Compensation modules (FTDCMs) are purely passive modules that based on dispersion slope compensating fiber in 19-inch single slot Rack Mount configuration. They serve at optical communication nodes to compensate the dispersion with optimized residual dispersion for standard single-mode fiber (G.652) in the C-band in optical transmission systems.
The dispersion compensation modules are available for any dispersion values from 10km to 140km compensation distance for protocol transparent data rates between 10Mbps and 40Gbps, with this FT-DCM-20 for dispersion up to 20 km. They can be used both for single channel and multi-channels DWDM optical fiber communication systems and typically connects to an Optical Amplifier.

Key Features

• Dispersion Compensation lengths 10km, compensation levels of 10 to 140km in 10km steps are available
• Purely passive component supporting high reliability
• Compensates standard single-mode G.652 optical fiber
• Compatible with C-Band DWDM optical channels
• Protocol transparent ranging from 10 Mbps to 40 Gbps
• Operation with a booster amplifier or a pre-amplifier to get excellent character
• Single-slot 1U 19' rack mount design
• Low end-to-end insertion loss
• Operating Temperature:-5°C ~ 55°C
• Storage Temperature:-40°C ~ 85°C
• RoHS compliant

Applications

• DWDM optical transmission system
• SDH optical transmission system
• CATV optical transmission system.

Mechanical Figure

Ordering Information (100GHZ ITU DWDM Grid)

F-tone custom designs and manufactures high performance Dispersion Compensation Modules to meet your special requirements, such as operating wavelength, optical fiber, transmission distance, connectors,package, etc. We are happy to discuss your requirements. This ordering information is for 100GHZ, if you need 50GHZ and price information, please email [email protected] or call us at +1-86-2786-1199.

Specifications

Note:
(1) Insertion Loss is the MAX in operation wavelength（1525 nm -1565 nm）
(2) The above-mentioned data is measured on the 1550 nm wavelength
(3) PMD is the mean difference Grouping Delay for the measuring of Jones matrix Method.
(4) OEM and customize character are available.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
