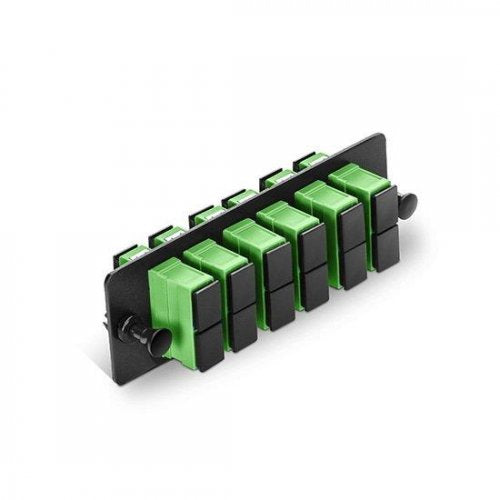

12 Fibers 6x SC/APC Duplex OS2 Single Mode Fiber Adapter Cassette with Pigtails

12 Fibers 6x SC/APC Duplex OS2 Single Mode Fiber Adapter Cassette with Pigtails

Просмотреть всю информацию

Part Number: FT-FAC12F-SCD-SM

Fiber Adapter Cassette 12 Fibers 6x SC/APC Duplex OS2 Single Mode

The fiber adapter cassette modules can house and protect fiber optic splices, guarantee proper fiber cable management and bend radius control, allow for clear labeling and logical organization of the fiber optic splices, and hold and protect up to 12 fusion splices. Splice cassettes eliminate the need for individual splice trays within FHD® series rack mount fiber enclosures and provide optimal organization and slack management of fibers. Typical applications include Wide Area Networks (WAN), campuses, government installations, data centers, and central offices.

Item Spotlights

● Compatible with F-tone Fiber Adapter Enclosures, Sliding Enclosures, and Wall Mount Enclosures

● 4 Cassettes Fit into 1U, Up to 48 Fibers

● Interface Color-coding Makes It Easy to Identify Fiber Type

● Push-lock Rivets for Tool-less Snap Installation and Removal

● Pre-terminated SC Adapters Reduce Field Installation Time

● Ideal for Quick Field Splicing of Pigtails Without External Splice Tray

Specifications

Fiber Count 12 Fibers Fiber Mode OS2 9/125μm
Front Connector Type SC UPC Duplex (Green) Number of LC Port 6 Ports
Material of Splice Tray ABS Housing Type Cassette
Material of Sleeve Zirconia Ceramic Insertion Loss ≤0.3dB
LC Pigtail Length 70cm Fiber Splice Jacket OD 0.9mm
Material of Cassette Body Aluminium (AL5052) Dimensions (HxWxD) 1.38''x4.29''x6.29'' (35x109x160mm)
Standard RoHS Compliant Application Matching forF-tone Fiber Adapter Enclosures, Sliding Enclosures, and Wall Mount Enclosures


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
