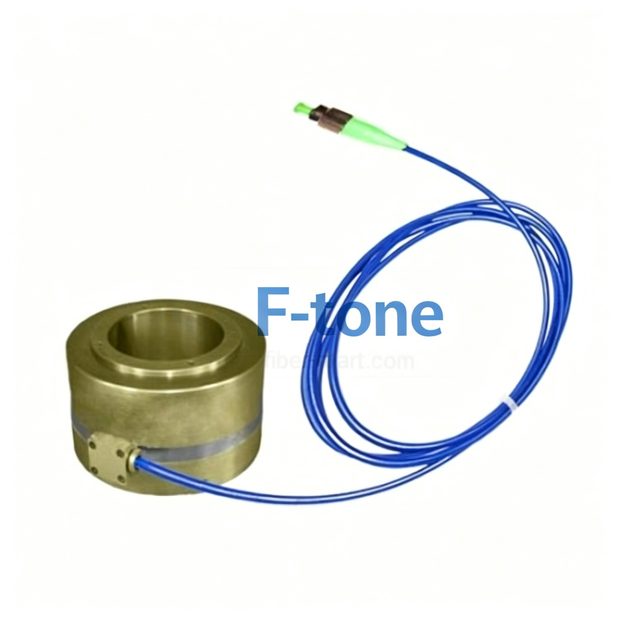

Part Number: FT-FBG-A
Acceleration FBG Sensor
FBG accelerometer is designed for buildings and civil infrastructures. The accelerometer has a high sensitivity in low frequency range to cover the most important frequency components of the structural response, typically from 1 Hz to 50Hz.
Key Features
- Range: 0.5g
- Frequency Range :〈50HZ
- Robust and reliability
- High sensitivity
- Long lifetime
Application
- Oil pipeline security monitoring.
- Perimeter alarm.
Specification
| Parameter | Unit | Minimum value | Typical value | Maximum value |
|---|---|---|---|---|
| Center Wavelength | nm | 1510 | / | 1590 |
| Range | ms-2 | 0 | / | 3 |
| Accuracy | / | 1‰ F.S | 10 | |
| Sensitivity | pm/ms-2 | 250 | / | 500 |
| Frequency Response | Hz | 1 | / | 50 |
| Operating Temperature | ℃ | -20 | / | 80 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
