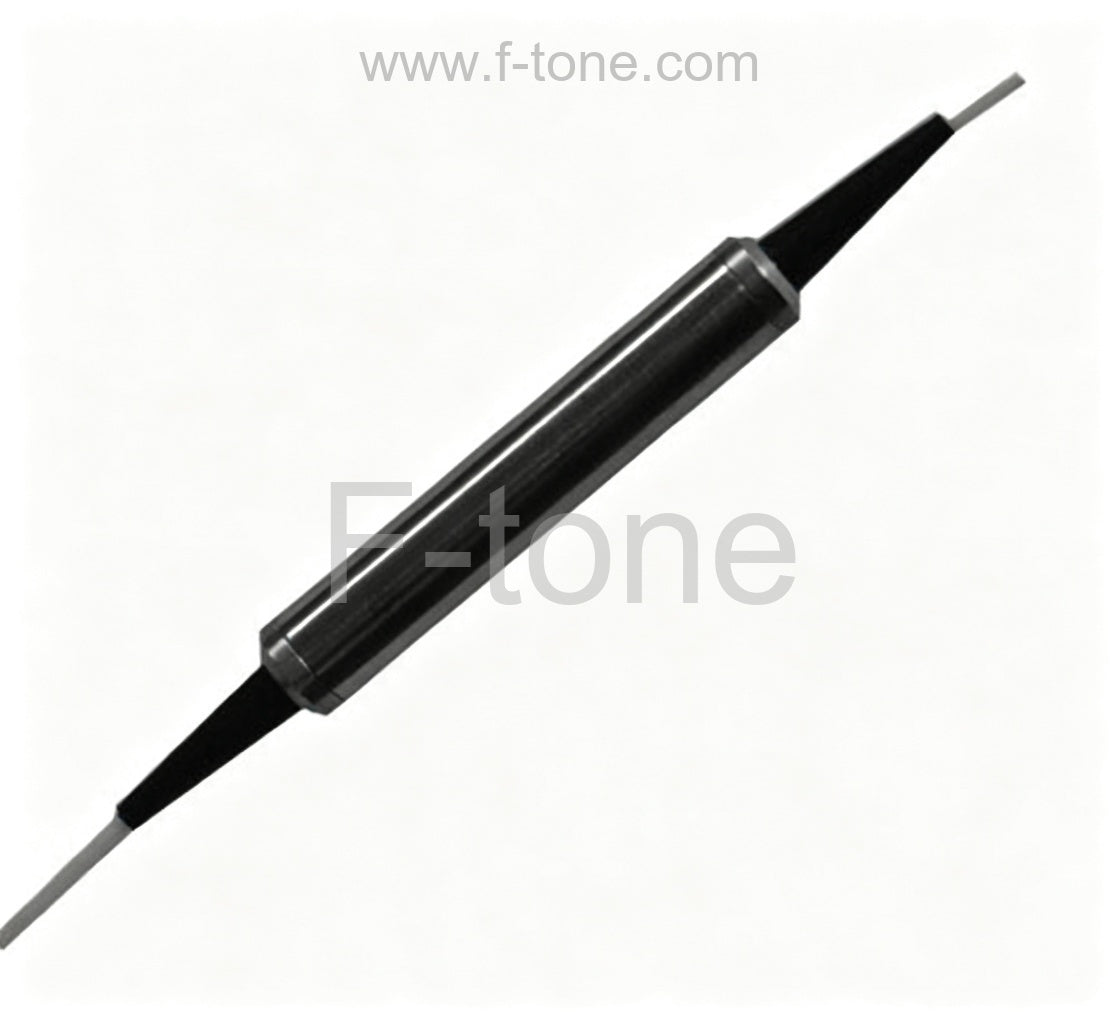

Part Number: FT-FWDM-1550-BPF

Optical Fiber Bandpass Filter(BPF) WDM for FTTX, Pass 1550nm, Reflect 1460～1515 & 1585~1620

The optical filter is an instrument that is used for wavelength selection, which can select required wavelengths from a large number of wavelengths and reject the addition wavelengths. It optical bandpass filter can used in wavelength selection, the noise filter of the optical amplifier, gain equalization, optical multiplexing /demultiplexing.

Our Optical Optical Fiber Bandpass Filter(BPF) WDM FTTX 1550nm FT-FWDM-1550-BPF is based on proven thin-film filter technology. This optical bandpass filter BPF is widely used in fiber optical communication systems and EDFA where flat and broad operating bands are needed.

Key Features

  • Broad operating band
  • High channel isolation
  • High stability and reliability
  • Length: 1M
  • Fiber Diameter: 0.9mm
  • Connector: FC/UPC

Applications

  • EDFA
  • WDM systems
  • CATV

Specification

Parameter
Type		 BPF-1*1-T1550±20
Operating wavelength (nm) 1460～1620
Transmission band wavelength (nm) 1550±20
Reflection band wavelength (nm) 1460～1515&1585~1620
Transmission insertion loss (dB) ≤0.6
Transmission channel isolation ≥20
@ 1460～1515&1585~1620 (dB)
Channel flatness (dB) ≤0.3
Return loss (dB) ≥50
PDL (dB) ≤0.1
Wavelength thermal stability (nm/℃) ≤0.003
Insertion loss thermal stability (dB/℃) ≤0.005
Power handling (mW) ≤500
Operating temperature (℃) -5 ~ +70
Storage temperature (℃) -40 ~ +85
Fiber Type SMF-28e
*The above specification is without connector.
**Other specifications can be made on customer request.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
