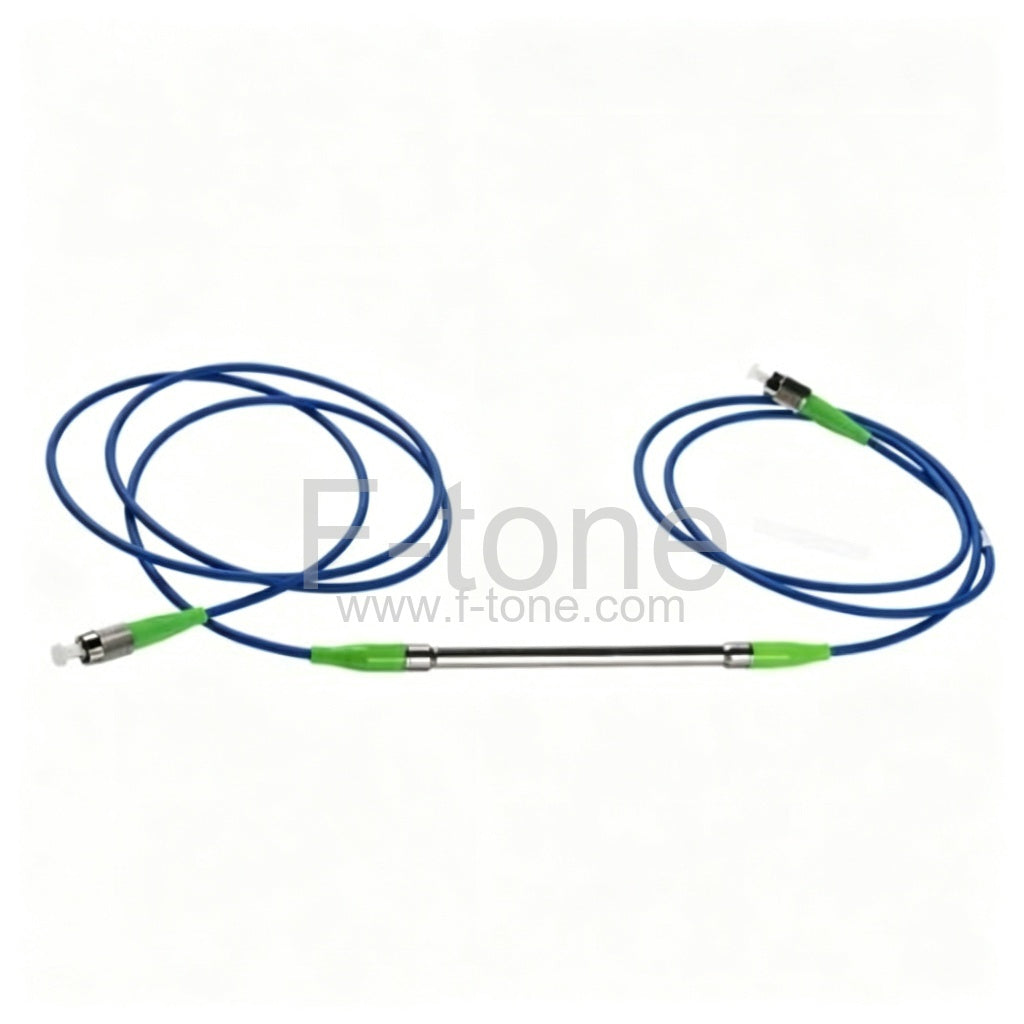

1510nm-1590nm 3.0mm Armored Cable Standard Temperature Sensor

1510nm-1590nm 3.0mm Armored Cable Standard Temperature Sensor

Просмотреть всю информацию

Part Number: FT-HTS-AC

Armored Cable Standard Temperature Sensor 1510nm-1590nm -10~80℃ 3.0mm

Standard Temperature Sensor packaged by stainless steel metal tube , it use of temperature-sensitive grating own features to monitor the temperature. It can be used for power plants, railways and long-term temperature monitoring tank.

Key Features

  • Fast response
  • High stability and reliability

Application

  • For power plants, railways and long-term temperature monitoring tank.

Specification

Parameter Unit Minimum value Typical value Maximum value
Wavelength range nm 1510 / 1590
-3dB broadband nm / 0.25 /
Temperature resolution ℃ 0.05 0.1 0.1
Temperature accuracy ℃ 0.5 1 1
Temperature range ℃ -40 / 80
Insertion loss(IL) dB / 0.5* /
Dimension mm φ8*63
Pigtail mm Φ 3 indoor cable or armored cable
Connector type Customized





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
