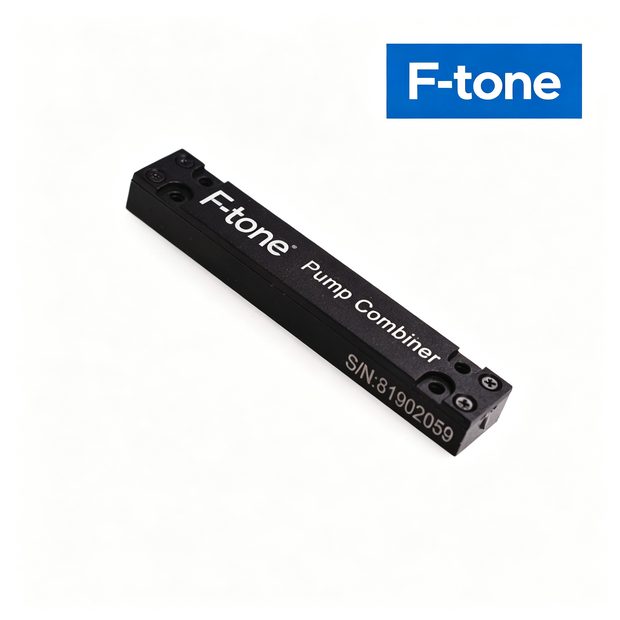

PM（2+1）×1 Type C Pump and Signal Combiner

PM（2+1）×1 Type C Pump and Signal Combiner

Просмотреть всю информацию

Part Number: FT-PC-PM(2+1)x1-C

PM Pump and Signal Combiner PM(2+1)x1

PM(2+1)x1 PM Pump and Signal Combiner feature high power handling, low loss and high coupling efficiency from multimode pump fibers to PM signal fiber. This PM (2+1)×1 multi-mode fiber combiner combines 2 pump lasers and one PM signal channel into one double cladding PM output fiber. Fiber type can be customized. If you need more details, please contact at [email protected].

Applications

  • High Signal Transfer Efficiency
  • High Power Fiber Amplifiers
  • Medical, industrial, defense

Features

  • Signal Operating Wavelength:
  • High Signal Transfer Efficiency
  • High PER
  • Wavelength Insensitive
  • Custom Configurations Available

Product specifications

  • Signal Operating Wavelength: 1000-1200nm
  • Pump Operating Wavelength: 800-1000nm
  • Configuration:PM（2+1）×1
  • Pump Fiber (core/clad, NA):105 /125 μm 0.15 or 0.22NA
  • Signal Input Fiber (core/clad, NA): PM20/130um GDF 0.08/0.46NA
  • Output Fiber (core/clad, NA):PM20/130umGDF 0.08/0.46NA
  • Total Input Power:14W/50W
  • Fiber length: 0.8m
  • Package Dimension: Ø4.0×60mm(14W) or 70×13×8mm(50W)


Parameter PM(2+1) ×1 PM(2+1) ×1 PM(2+1) ×1 PM(2+1) ×1
Signal Operating Wavelength 1530-1575 nm 1530-1575 nm 1000-1200nm 1000-1200nm
Pump Operating Wavelength 800-1000 nm 800-1000 nm 800-1000 nm 800-1000 nm
Pump Fiber core/clad diameter NA 105 /125 μm 0.15 or 0.22 105 /125 μm 0.15 or 0.22 105 /125 μm 0.15 or 0.22 105 /125 μm 0.15 or 0.22
Signal Input Fiber core/clad diameter NA PM 12/130GDF 0.17/0.46 PM25/300umGDF 0.10/0.46 PM20/130umGDF 0.08/0.46 PM 30/250GDF 0.06/0.46
Output Fiber core/clad diameter NA PM 12/130GDF 0.17/0.46 PM25/300umGDF 0.10/0.46 PM20/130umGDF 0.08/0.46 PM 30/250GDF 0.06/0.46
Total power 14W/50W 14W/50W 14W/50W 14W/50W
Maximum Signal Insertion Loss ＜0.5dB ＜0.5dB ＜0.5dB ＜0.5dB
ER (dB) ≥18 dB ≥18 dB ≥18 dB ≥18 dB
Pump Efficiency ＞90% ＞90% ＞90% ＞90%
Mechanical Specifications
Package Ø4.0×60mm(14W) or 70×13×8mm(50W) Ø4.0×60mm(14W) or 70×13×8mm(50W) Ø4.0×60mm(14W) or 70×13×8mm(50W) Ø4.0×60mm(14W) or 70×13×8mm(50W)
Fiber Length ＞800mm ＞800mm ＞800mm ＞800mm





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
