Part Number: FT-PC-PM(4+1)x1

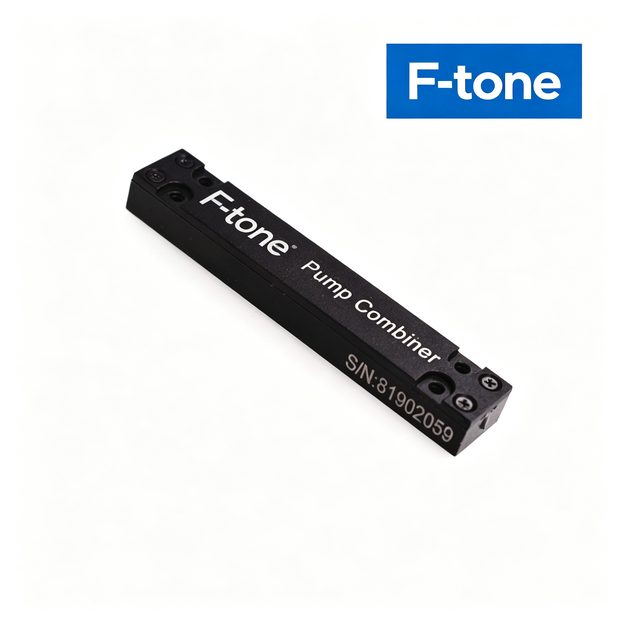

PM Pump and Signal Combiner PM(4+1)x1

PM(4+1)x1 PM Pump and Signal Combiner feature high power handling, low loss and high coupling efficiency from multimode pump fibers to PM signal fiber. This PM (4+1)×1 multi-mode fiber combiner combines 4 pump lasers and one PM signal channel into one double cladding PM output fiber. Fiber type can be customized. If you need more details, please contact at [email protected].


Applications

  • High Signal Transfer Efficiency
  • High Power Fiber Amplifiers
  • Medical, industrial, defense

Features

  • Signal Operating Wavelength:
  • High Signal Transfer Efficiency
  • High PER
  • Wavelength Insensitive
  • Custom Configurations Available

Product specifications

  • Configuration: PM（4+1）×1
  • Pump Fiber (core/clad, NA):105 /125 μm 0.15 or 0.22NA
  • Signal Input Fiber (core/clad, NA): PM10/125um GDF 0.08/0.46NA
  • Output Fiber (core/clad, NA): PM25/250um GDF 0.07/0.46NA



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
