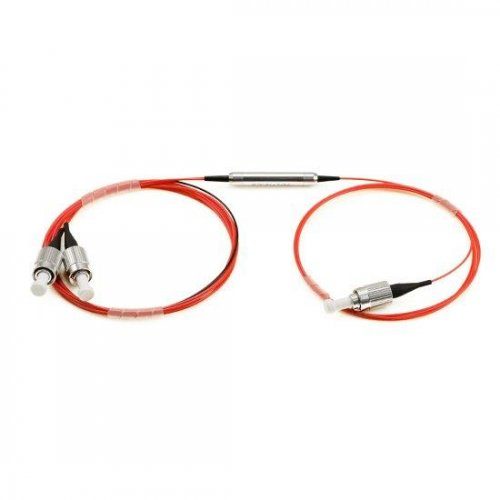

Part Number: FT-PMCIR-1550-3B-3W

1X2 1550nm 3W High Power Polarization Maintaining Optical Circulator, both fast and slow axis working Single Stage/Dual Stage 900um

F-tone’sPolarization-Maintaining (PM) Optical Circulators are non-reciprocating, unidirectional, three-port devices that are used in a wide range of optical setups. Polarization Maintaining Circulator Available with a center wavelength of 1064, 1310 (O-Band), or 1550 nm (C-Band), these circulators are designed to work with light that is launched into the slow axis.


Choose from versions with no connectors, FC/ST/SC/LC PC&APC connectors and so on.

Characteristics

  • Low Back Reflection
  • High Extinction Ratio
  • Low Insertion Loss
  • High Return Loss
  • Excellent environmental stability and reliability

Applications

  • DWDM system
  • Add-Drop Multiplexing
  • Fiber Amplifier
  • Fiber Sensor
  • Chromatic Dispersion Compensation Devices
  • Fiber Bragg Grating
  • Polarization maintaining optical system

Application Diagram

Below are Three Port Circulator application for your reference.

As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.
Circulator can be used to send optical signals through a single fiber in two directions.

Dimension

Order Information

PMCIR
Product Description Port Type Stage Operating
Wavelength		 Pigtail Type Fiber Type Connector Type Fiber Length

P=Polarization
M=Maintaining
CIR=Circulator
1X2
2X2
Dual
Single
1064nm
1310nm
1550nm
250um
900um
PM98
PM15
PM13
others
None
FC/UFC
FC/APC
SC/UPC
SC/APC
0.5m
0.8m
1.0m
1.2m

Custom

Note:
1. Operating Wavelength: F-tone can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, F-tone could also provide 0.5M,0.8M,1.5M, 2.0M, etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc. Please contact us by email to [email protected] or call at +1-205-282-9089 if you have any requirement for it.

Sample Picture



Parameter Unit Value
Type - Type A Type B
Center Wavelength nm 1310& 1550 1310 &1550 1064
Operating Wavelength Range nm ±30 ±20 ±5
Typ.Peak Isolation 23℃ dB 46 30 30
Min.Isolation at 23℃ dB 40 20 25
Typ.Insertion Loss at 23℃ dB 0.7 0.6 1.8
Max.Insertion Loss at 23℃ dB 0.9 0.8 2.1
Min.Extinction Ratio dB 22 20 20
Min.Cross Talk dB 50
Min.Return Loss dB 50
Max.Optical Power(CW) mW 300
Max.Tensile Load N 5
Fiber Type - PM Panda Fiber
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
The default connector key is aligned to slow axis;




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
