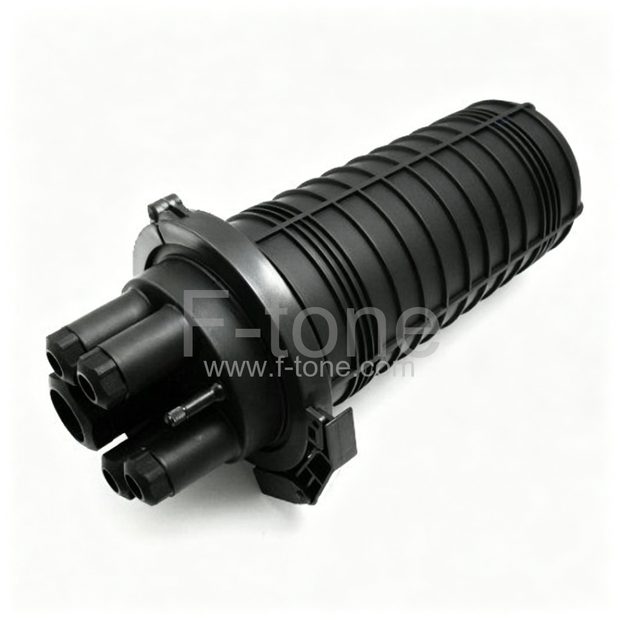

96 Fibers 2In-3Out/3In-2Out S018 Series Heat Shrinkable Type Vertical/Dome Fiber Optic Splice Closure

Part Number: FT018-5IO-96

FT-S018 Series 5 Entries Vertical/Dome Fiber Optic Splitter Closures Max. Capability up to 96 Fibers

FT-S018 type of Fiber Optic Splice Closure (FOSC) is a member of dome closure series, the product adopts fully-mechanical sealing structure, only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 13mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection.

Key Features

• 1. It could be installed 36pcs SC/PC Pigtails of 1.5
• 2. It applies to PLC splitter with Max ratio 2:32 or 2*2:16.
• 3. This model has four small round ports and one large round port.
• 4. The Max quantity of SC adaptor is 36pcs. (Other types of adaptor could be customized).
• 5. The sealing component is made from vulcanized rubber.
• 6. The sealing method adopts screw pressure, sealing performance is excellent, convenient to re-open, especially suitable for optical splitter used.
• 7. Adopt modified PP material with high strength and anti-corrosion to make the closure have a longer lifetime and excellent sealing performance.
• 8. There are various sealing accessories of soft cable to be chosen

Main Technical Parameters

• The application of temperature : -40℃～65℃
• Atmospheric pressure: 70～106KPa
• Resist pull: ＞1000N
• Resist pressure: ＞2000N/10cm2pressure, time 1min
• Insulation resistance: ＞2×104MΩ
• Dielectric strength: 15KV (DC)/1 min spark-over and no flying arc.

Specifications

• Applies to PLC splitter
• Fully-mechanical sealing structure
• IP safety rate is IP68
• The sealing method adopts screw pressure
• This model is suitable for different methods of branch connection, including branching of uncut cable.
• It could be used for aerial, pole-mounting, wall-mounting and underground application.
• The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.
• Number of fibers:96
• Length:420 mm ,Diameter:190 mm
• Weight: 3.5kg

Note: This Fiber Splice Closure belongs to Fiber Optic Splitter type and the charges do not include Fiber Adapter, but we provide it to our customers, please contact [email protected]

Sample Pictures

Basic structure and configuration

Dimension and capacity;

Main components

Main accessories and special tools

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
