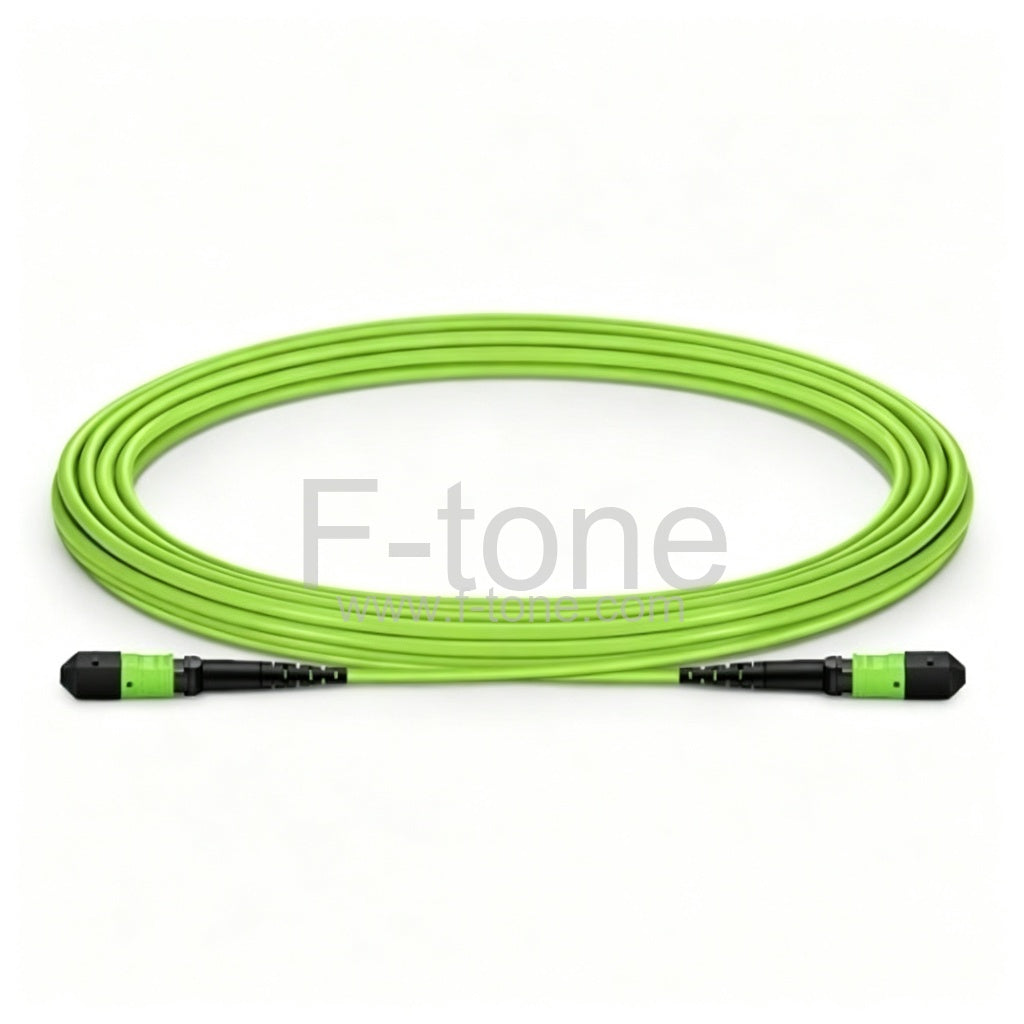

MTP-12 (Female) to MTP-12 (Female) OM5 Multimode Elite Jumper Cable, 12 Fibers, Type B, LSZH(Riser), Lime Green

MTP-12 (Female) to MTP-12 (Female) OM5 Multimode Elite Jumper Cable, 12 Fibers, Type B, LSZH(Riser), Lime Green

Просмотреть всю информацию

Part Number: FT12FMTPOM5

MTP Female to MTP Female OM5 Multimode 12 Strands MTP Trunk Cable

MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure.

Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.

F-tone's MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for

  • The data centra application with high dense degree environment
  • The optical fiber to the building
  • The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.

MTP Connector Types

MTP Male with Pins
MTP Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side.(Note: Female connector need to connect with male connector type.)

Pre-terminated MTP Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Assembly Structure Illustration



MTP Trunk Fiber Patch Cables are terminated with MTP connector on both end.
1.The default diameter of the MTP cable is 3.0mm.
2.The default color of the single mode MTP connector is Blue.
3.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter strands.
4.We also support custom pulling eyes for the cable, welcome to contact me for details.

MTP & MPO Difference

The term MTP is a registered trademark of US Conec, it has been the main trend in European and American areas.

MTP/MPO Machinery & Testing Equipment



1
Our adopt industry's leading high-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2
The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3
After the 3D interference detection, the flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Parameter Reference

Type Single mode Single mode Multi mode
(APC polish) (PC polish) (PC polish)
Fiber count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.70 dB ≤0.35 dB ≤0.70 dB ≤0.35dB ≤0.60dB
Return Loss ≥55 dB ≥45 dB ≥20 dB
Durability ≥200 times ≥200 times ≥200 times
Operating Temperature -10℃ ~ +70℃ -10℃ ~ +70℃ -10℃ ~ +70℃
Test Wavelength 1310nm 1310nm 850nm

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m

Make To Order

Fiber Type Cable Type Fiber Count Termination Cable Length Breakout Length (Inches) Breakout Termination Polarity Lableing
OM5
OM4
OM3
OS1/2
OM2
OM1		 LSZH Bunch
Riser Bunch
LSZH Ribbon
Riser Ribbon		 12
24
36
48
72
96
144		 First Connector
MTP Female
MTP Male
APC MTP Female
APC MTP Male		 1~999 12~99
(36" is typical)		 0.9mm
(standard)
2.0mm
3.0mm		 Style A
Style B
Style C		 Standard Custom
Second Connector
MTP Female
MTP Male
APC MTP Female
APC MTP Male


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
