12 Fibers Single-Mode LC/SC/ST/FC 12 Strands MPO LGX Cassette

12 Fibers Single-Mode LC/SC/ST/FC 12 Strands MPO LGX Cassette

Просмотреть всю информацию

Part Number: FT12SM-LGX-2MX

12 Fibers, MPO to LC/SC/ST/FC, 9/125 Singlemode Fiber, 12 Standard, LGX - MPO Cassette Panel

F-tone’s MPO Cassette Modules provide secure transition between MPO and LC,SC,ST or FC discrete connectors with two types.

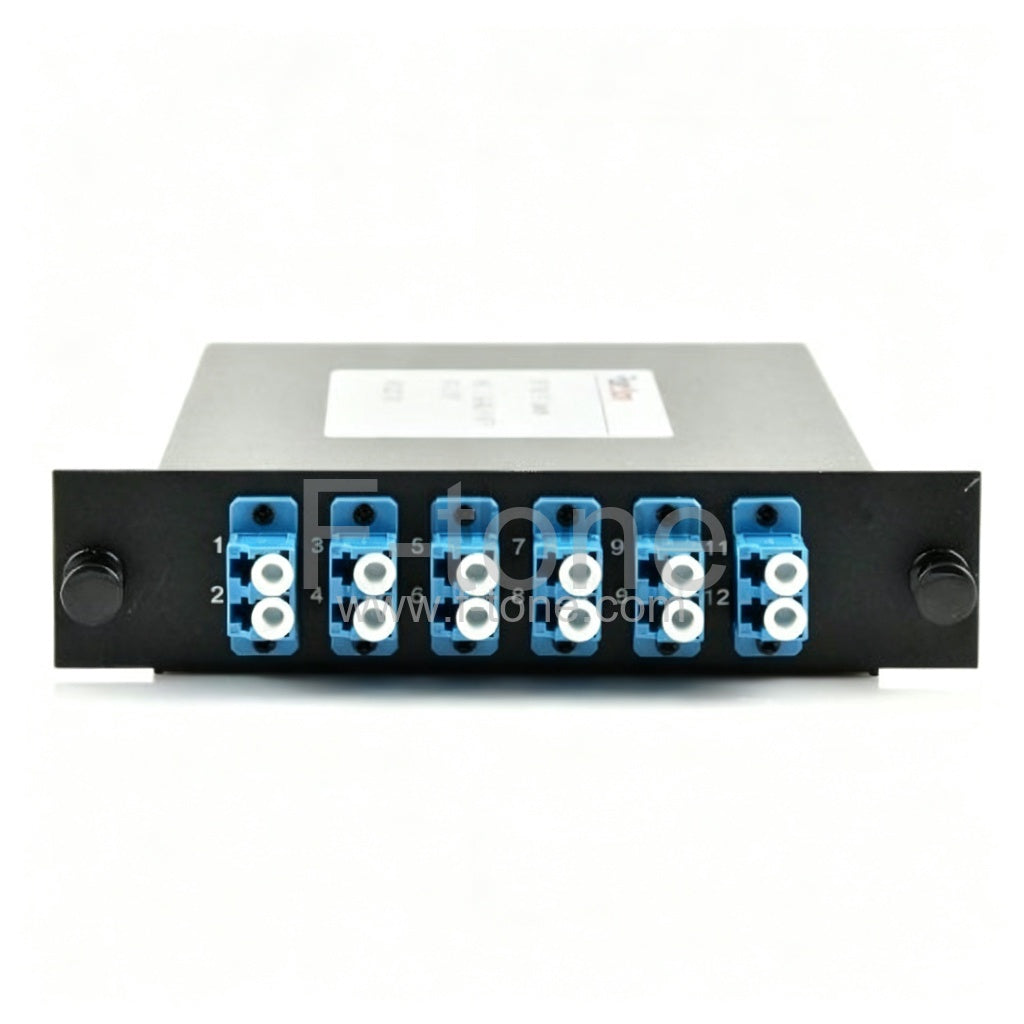

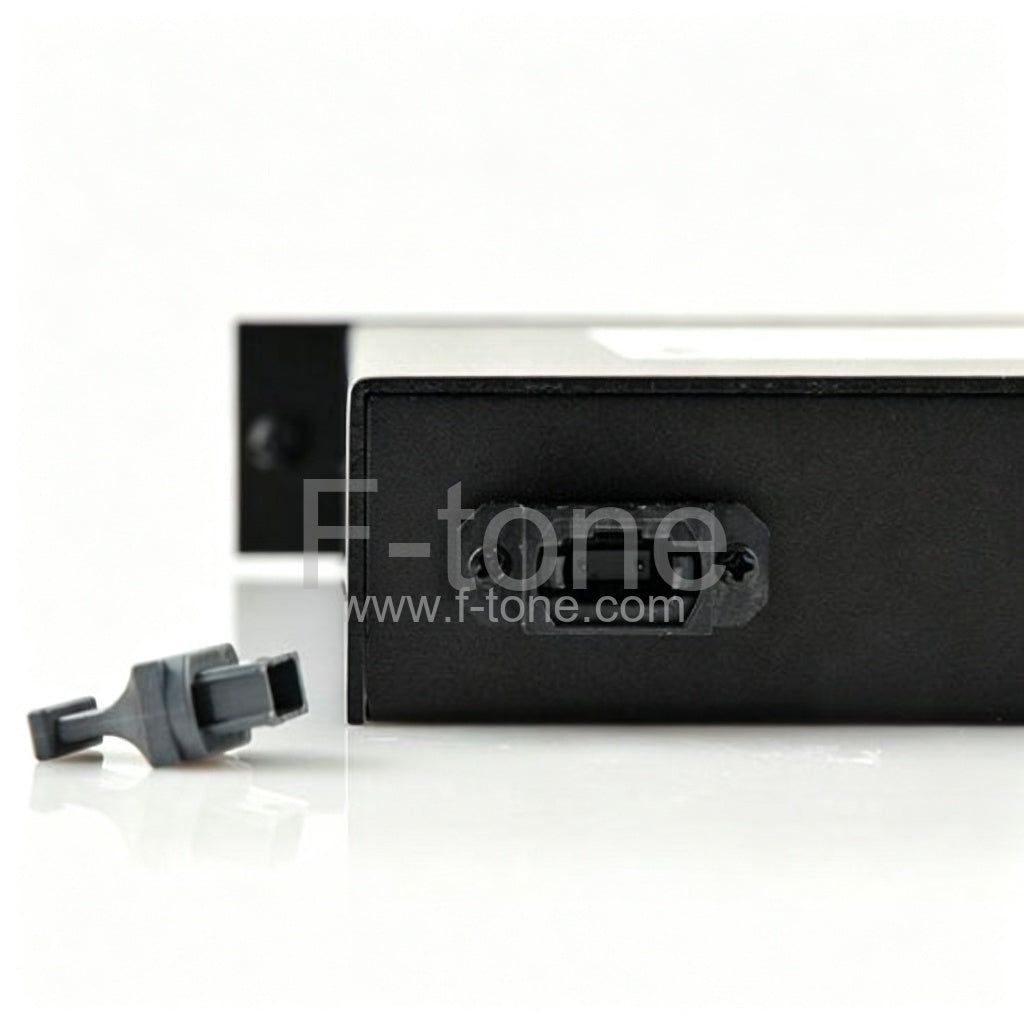

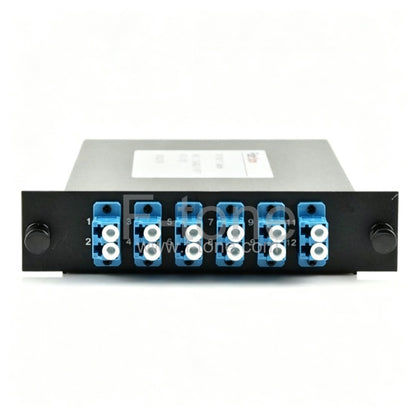

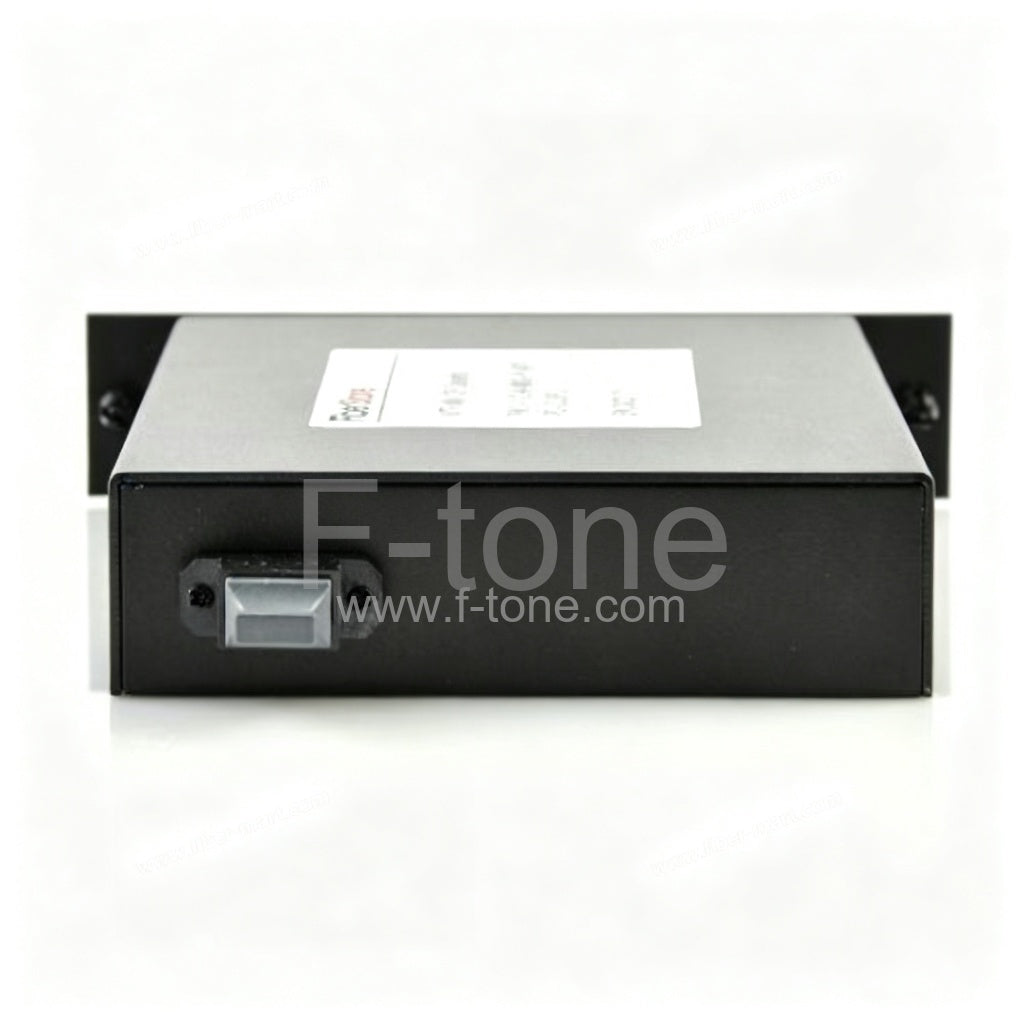

The MPO modules are fitted with 12 or 24 fibers and have LC, SC adapters on the front side and MPO at the rear.

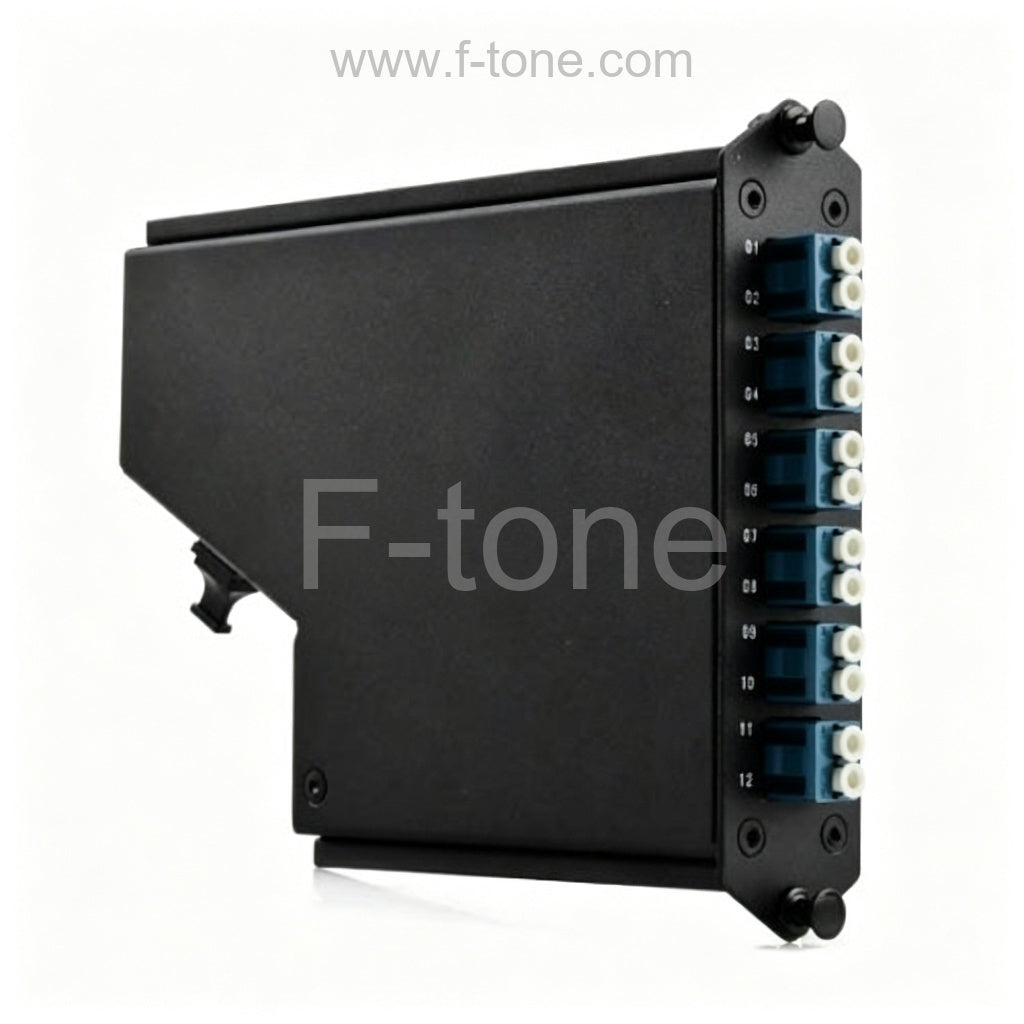

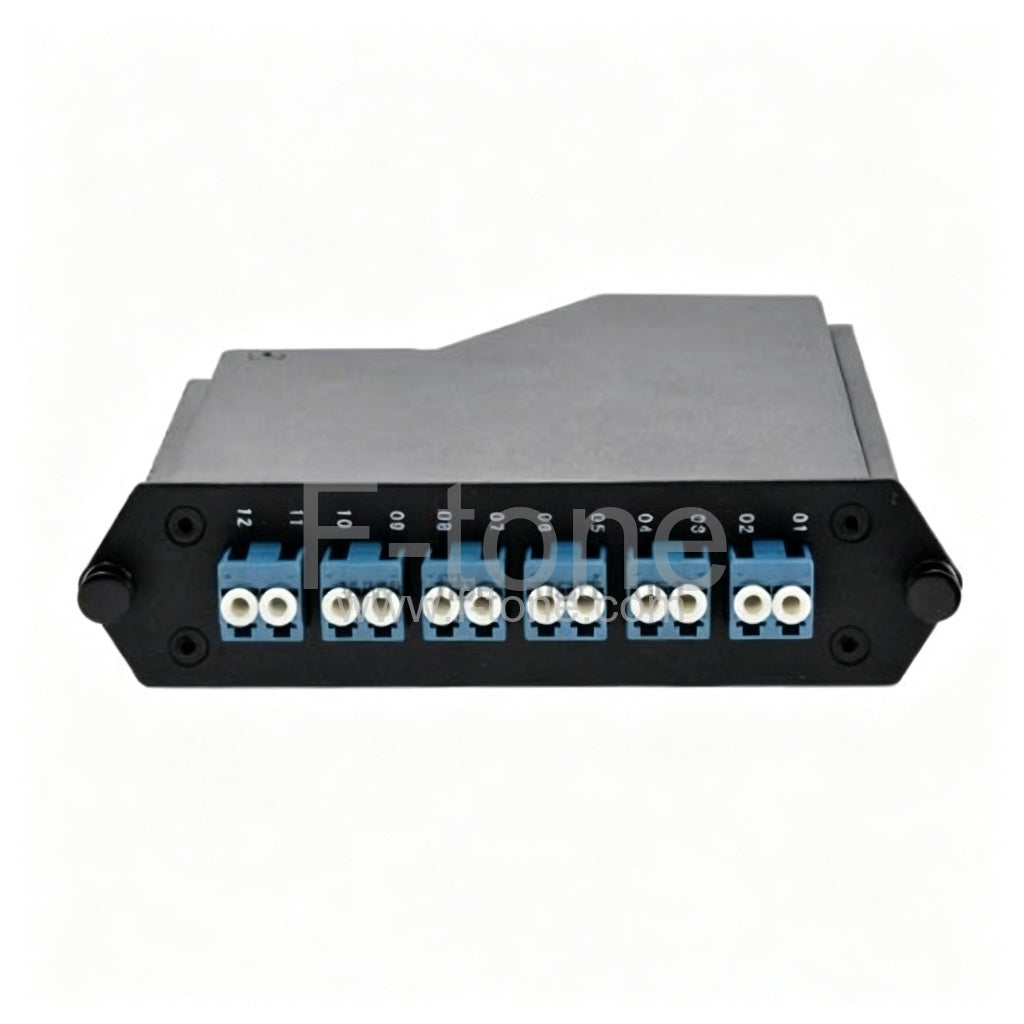

Cassette Type: Standard Cassette Type: Irregular shape

Features

  • High performance zirconia sleeve adapters.
  • Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.
  • MPO interface MPO components feature superior optical and mechanical properties.
  • Optimized performance Low loss MPO Elite, discrete Premium connectors and OM4 fiber assures low insertion losses and power penalties in tight power budget, high-speed network environments.
  • High density 12 or 24 fiber cassettes can be mounted in 1U scaling up to 72 or in 4U scaling up to 288 discrete connectors.
  • Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.

Application

  • Data centers
  • LAN, WAN and SAN
  • Interoffice cross-connects
  • Campus environments

Mechanical Drawing:


1U slide and tilt panel - holds up to 3 cassettes (72 fibers) MPO Cassette housing in 4U Rack mount

MPO Cassette Structure

MPO cable connect with MPO Cassette MPO Harness cable housing in MPO Cassette

Specifications

Connector requirements
Multimode Single mode
IL MPO Single max:0.35dB(L)
Single max:0.60dB(G)		 Single max:0.35dB(L)
Single max:0.75dB(G)
LC max:0.10dB(L)
max:0.15dB(G)		 MAX:0.3dB
RL MPO >20dB >60dB(8°Angle Polish)
LC >30dB >50dB(UPC)
>60dB(APC)
Mechanical MPO <0.2dB,200times insertion
LC <0.2dB,200times insertion
Environmental Working Temp. -20~ +60℃
Storage Temp. -40~ +70℃
Install Temp -5~ +50℃

Order Information

Order Information Packaging
Mode Type Fiber Standard Fiber Connector Fiber counts Polish Type 1. MPO-FC/SC/ST/LC Fiber Optic Cable
( The type of fiber mode according to
your choice MTP/MPO Cassettes )
2. FC/SC/LC/ST Fiber Adapter
3. MPO/MTP Fiber Adapter
4. LGX box
OM4 12 Fiber Standard
24 Fiber Standard		 MPO-FC ( 12 fiber available )
MPO-SC (12 fiber available )
MPO-LC (12&24fiber available )
MPO-ST (12 fiber available )		 12 Fibers
24 Fibers		 UPC APC
OM3
OS1/2
OM2
OM1






This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
