Part Number: FT24OM3-MTPF-3MTPF-B-3M

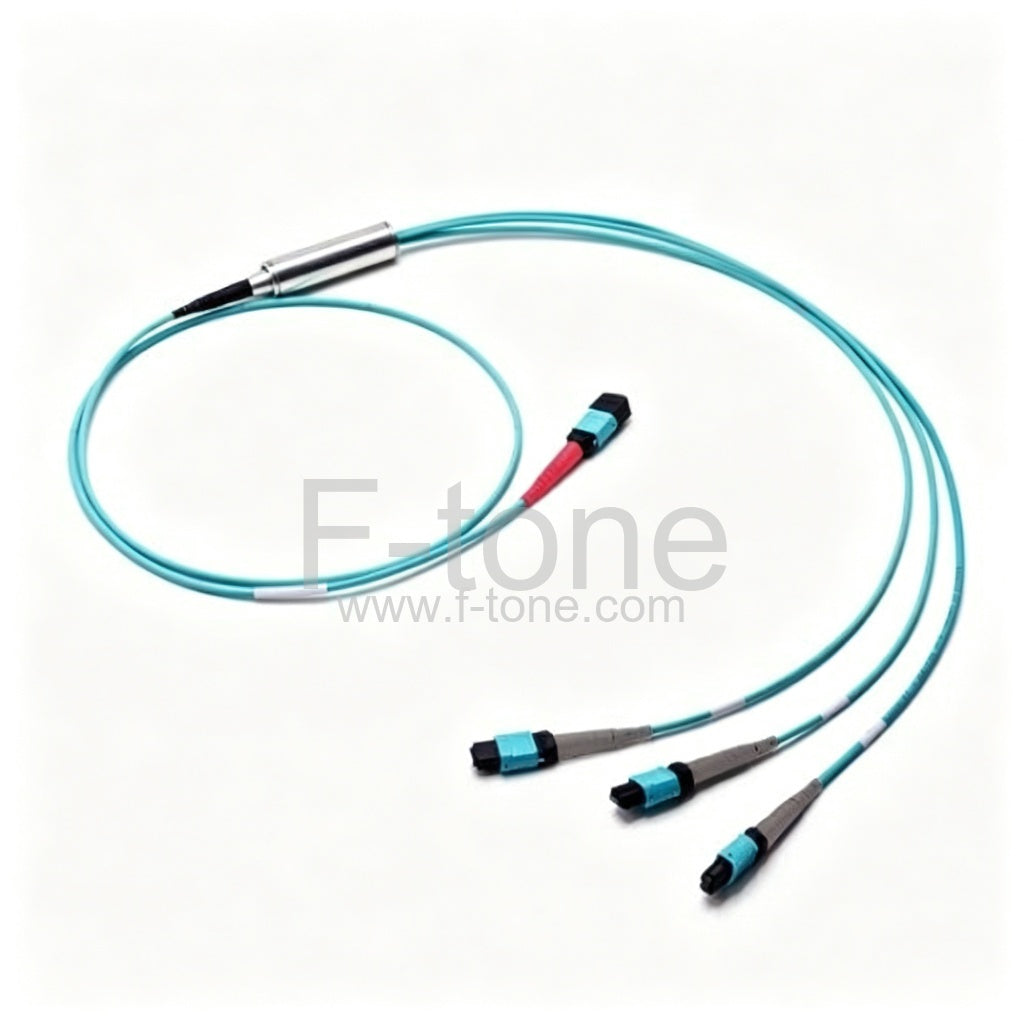

24 Strand MTP(Female) to 3x8 Strand MTP(Female) Interconnect Conversion Harness Cable
| Fiber Connector | 1xMTP to 3xMTP | Jacket OD | 3.0 mm |
|---|---|---|---|
| Fiber Category | 50/125 m MM (OM3) | Gender | Female to Female |
| Fiber Count | 24 | Test Wavelength | 850nm |
| Insertion Loss | 0.6dB | Return Loss | 20dB |
| Polarity | Type B (Full-Flipped) | Durability | 500 times |
| Operating temperature | -40 ~ 80C | Fiber Grade | G651 |
| Flame Rating | LSZH | Outer Jacket Color | Aqua |
Features and Benefits
Cable Polarity - Type B Crossover(Full-Flipped)
How to Choose The Right Fiber Optic Cable Type
PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
| Designation | Fiber Dia.( m) | Type | 10Gbps Ethernet 10GBASE SR/LR | 40Gbps Ethernet 40GBASE SR4/PLRL4 | 100Gbps Ethernet 100GBASE SR10/IR4 |
|---|---|---|---|---|---|
| OM1 | 62.5/125 | Multimode | 33 Meters (SR) | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 82 Meters (SR) | Not supported | Not supported |
| OM3 (Laser Optimized) | 50/125 | Multimode | 300 Meters (SR) | 100 Meters (SR4) | 100 Meters (SR10) |
| OM4 (Laser Optimized) | 50/125 | Multimode | 400 Meters (SR) | 150 Meters (SR4) | 150 Meters (SR10) |
| Singlemode | 9/125 | Singlemode | 10 KM at 1310nm (LR) | 1KM (PLRL4) | 2KM (IR4 PSM) |
Type B MTP-Female Cabling for 100GBASE SR10 CFP to 40GBASE SR4 QSFP+ Migration Networks
High Quality MTP Cable Guarantee
a.High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
b.3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
c.The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
