Part Number: FTB-200-7200D-023B

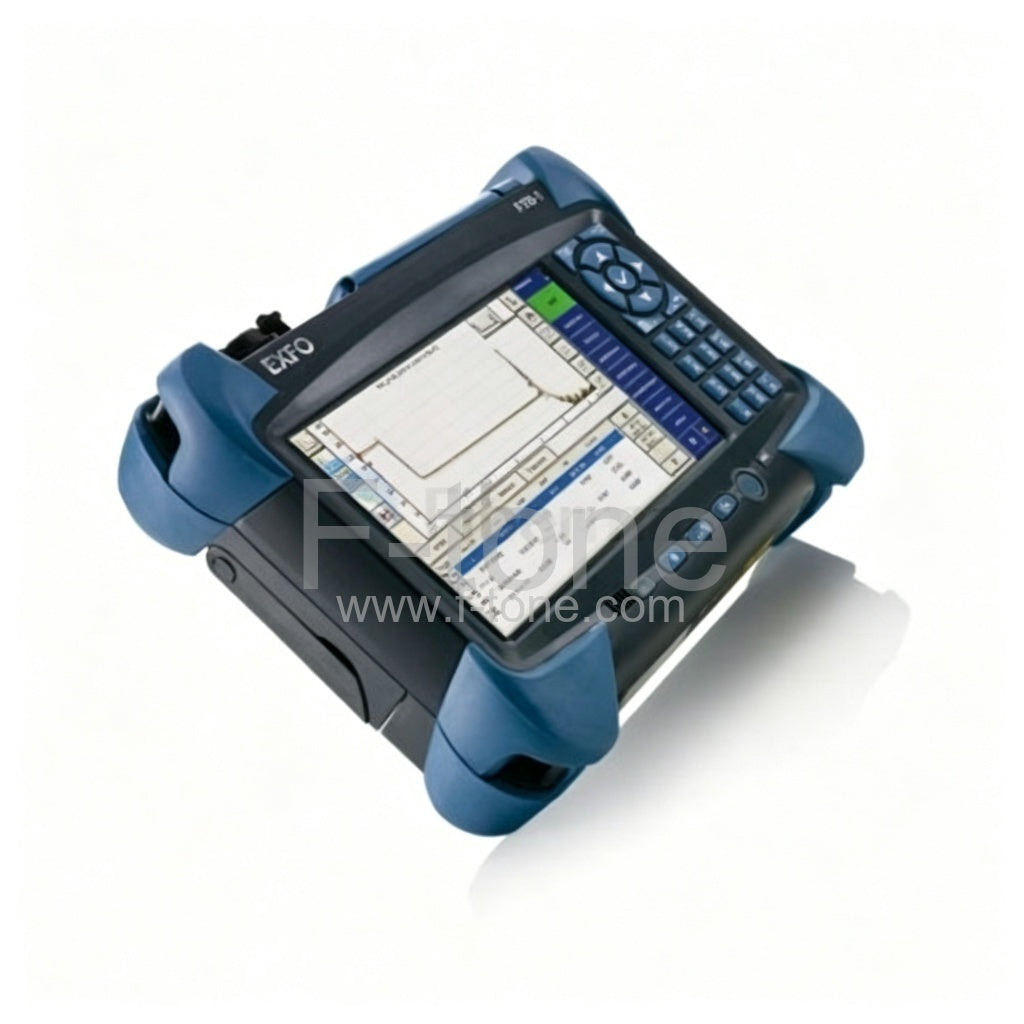

EXFO FTB‑200 Fiber Optic Tester OTDR, Wavelength 1310/1550nm, Dynamic Range 35/33dB
Introduction
The FTB-200 delivers the processing power of a high-end platform for a variety of advanced applications—all in a conveniently sized go-anywhere field-testing tool.
Key Features
Connects anywhere: USB, 3G, Wi-Fi, VPN and Bluetooth
Loaded with utilities: All the tools required to maximize field testing, plus third-party applications
Like a PC: Intel processor with Windows Embedded Standard operating system
EXFO Connect-compatible: Automated asset management; data goes through the cloud and into a dynamic database
GPS capabilities: Accurate coordinates under the same conditions as a regular satellite GPS receiver
OPTICAL TEST MODULES
| OTDR | FTB-7xxx (D-E Series) |
|---|---|
| MultiTest Module | FTB-3930 |
| Optical Spectrum Analyzers | FTB-5240S |
| FTB-5240S-P | |
| Single-Ended Dispersion Analyzer | FTB-5700 |
Ordering Information
| FTB-200-7200D-023B | EXFO FTB-200 OTDR 1310/1550nm, 35/33dB |
|---|---|
| FTB-200-7300E-023B | EXFO FTB-200 OTDR 1310/1550nm, 37/39dB |
Note
We also can provide the EXFO FTB-500 Network testing platform, EXFO FTB-200v2 Compact platform, and three kinds of test modules that supported on FTB-200 and FTB-500 platforms:
a. EXFO FTB-8115 SONET/SDH test module, supported on FTB-200 and FTB-500 platforms, optimizing capital.
b. EXFO FTB-8120NGE/8130NGE multiservice test modules, supported on FTB-200 and FTB-500 platforms, optimizing capital expenditures.
c. EXFO FTB-8510B/G 10 Gigabit Ethernet test module, supported on FTB-200 and FTB-500 platforms
For any interests or questions, welcome to contact us at [email protected] for more information.
DESIGNED FOR EFFICIENCY
| SPECIFICATIONS(* notea) | |
| Display | Touchscreen, color, 640 x 480 TFT 163 mm (6.5 in) |
| Interfaces | Two USB 2.0 ports |
| RJ-45 LAN 10/100/1000 Mbit/s | |
| Fiber inspection probe connector port (video) | |
| Built-in Bluetooth and Wi-Fi (hardware option) | |
| Storage | 8 GB internal memory (flash) |
| 16 GB internal memory (flash), optional | |
| Battery | Rechargeable lithium-ion batteries |
| 8 hours of operation as per Telcordia (Bellcore) GR-196 | |
| Power supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz, |
| 1.6 A max, output: 24 VDC, 90 W | |
| Computer | Intel ATOM processor |
| Windows Embedded Standard | |
| GENERAL SPECIFICATIONS | |
| Operating Temperatur(* notee) | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature(* noteb) | –40 °C to 60 °C (–40 °F to 140 °F) |
| Relative humidity | 0 % to 95 % non-condensing |
| Size (H x W x D) | 322 mm x 197 mm x 109 mm |
| Weight(* noteb) | 2.1 kg (4.6 lb) |
| Vibration | <1.5 g at 10 Hz to 500 Hz (on three main axes) |
| Mechanical shock | <760 mm on six sides and eight main edges (compliant to GR-196-CORE) |
| PM-200 BUILT-IN POWER METER SPECIFICATIONS(* notec) | |
| Calibrated wavelengths (nm) | 850, 1300, 1310, 1490, 1550, 1625, 1650 |
| Optional CWDM calibrated wavelengths (nm) | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490,1510, 1530, 1550, 1570, 1590, 1610, 1383, 1625 |
| Power range (dBm) | 10 to —86 (InGaAs) |
| 26 to —64 (GeX) | |
| Uncertainty (%)(* noted) | ±5 % ± 3 pW (InGaAs) |
| ±5 % ± 0.4 nW (GeX) | |
| Display resolution (dB) | |
| InGaAs | 0.01 = max to —76 dBm |
| 0.1 = —76 dBm to —86 dBm | |
| 1 = —86 dBm to min | |
| GeX | 0.01 = max to —54 dBm |
| 0.1 = —54 dBm to —64 dBm | |
| 1 = —64 dBm to min | |
| Automatic offset nulling range(* notee) | Max power to —63 dBm for InGaAs |
| Max power to —40 dBm for GeX | |
| Tone detection (Hz) | 270/1000/2000 |
Notes
a. All specifications valid at 23 oC (73 oF).
b. Not including internal batteries. Battery maximum storage temperature: 60 oC (140 oF).
c. At 23 ºC ± 1 ºC, 1550 nm and FC connector. With modules in idle mode. Battery operated.
d. Up to 5 dBm.
e. For ±0.05 dB, from 18 ºC to 28 ºC.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
