Part Number: FTC-10GXFP-GB-S

10GBASE-T Ethernet XFP Port Standalone Management Media Converter

This product is high-performance 10G optical media converter, Using Optical - Electrical - Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. While it can not manage the remote devices and only support web network management. Based on the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

Key Features

  • Support Jumbo Frame
  • Transparent Transport and very low delay
  • Support ITUT prescribed DWDM/CWDM wavelength
  • Support Loopback test function
  • Support hot plugging
  • Support 2U Rack (16 channel) and standalone use
  • Full State Led display
  • Easy installation

Instruction

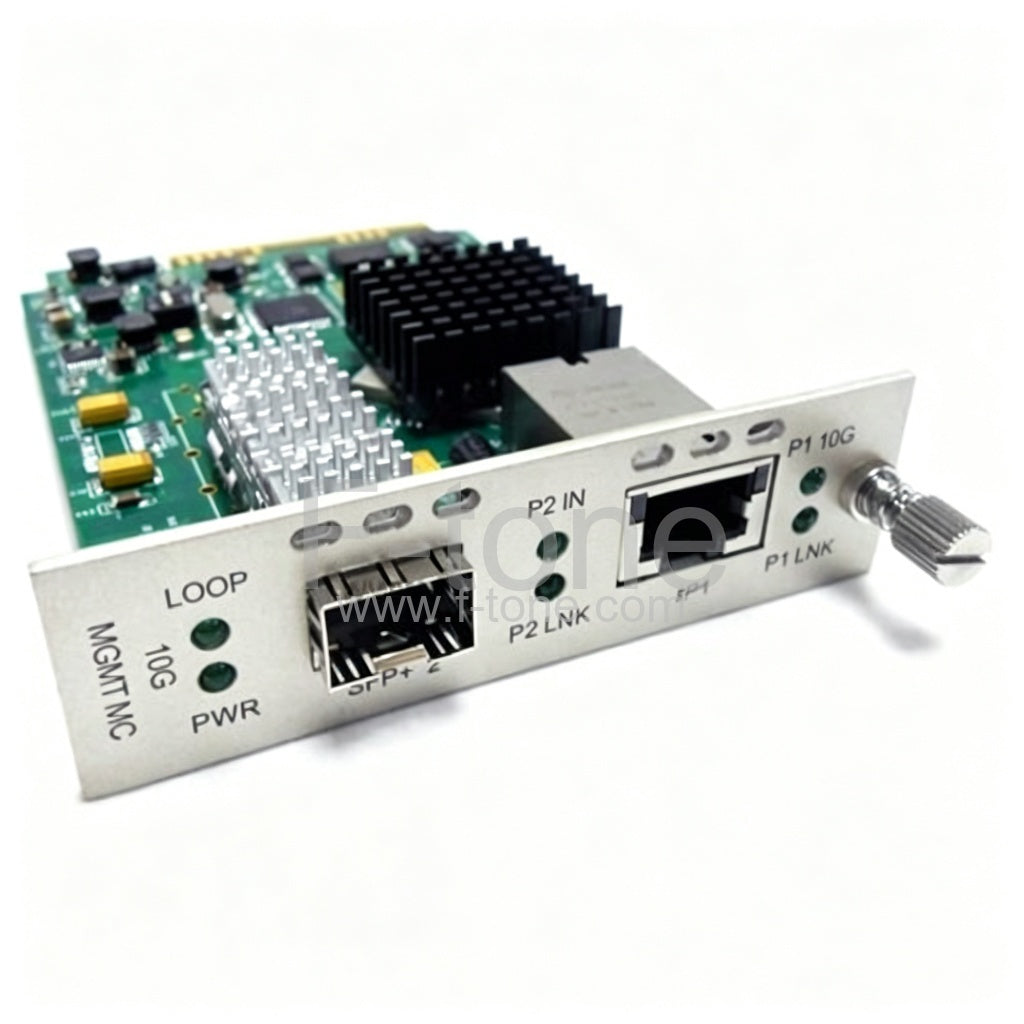

10G Media Converter Panel

LED Indicator

LED Colour Explanation
P1 10G Green Bright: TP 10G
P1 LNK Green Bright: TP Link connected
Blink: indicates packet goes through
P2 IN Green Bright: SFP+2 or XFP2 module inserted
P2 LNK Green Bright: SFP+2 or XFP2 connect normally
LOOP Green Bright: Loopback is on
PWR Green Bright: Power is On

Dip Switch Description

SW1 ON Loopback is On
OFF Loopback is Off
SW2 ON Remote Control turn off
OFF Remote Control turn on

Specific Parameters

10G Media Converter

Transmission mode Technical Indexes
Transmission Speed 10Gb/s
Protocols IEEE802.3an(10Gbase-T)
IEEE802.3ae(10Gbase-SR/LR/ER/ZR)
Access Type 10G LAN
Interface Type RJ45 To/From SFP+
Or
RJ45 To/From XFP
Transmission Distance SFP+ module: Up to 80Km
XFP module: Up to 80Km
10Gbase-T: 100meters Cat .6a cable
Maximum Packet 14,880,950/S
Forwarding Rate
Power supply specifications and dimensions AC: 100V~240V 50~60HZ
DC: 40V~50V 50~60HZ
power consumption≤6W（without module）
External AC-DC 20W
communication module power
156mm * 128mm * 32mm




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
